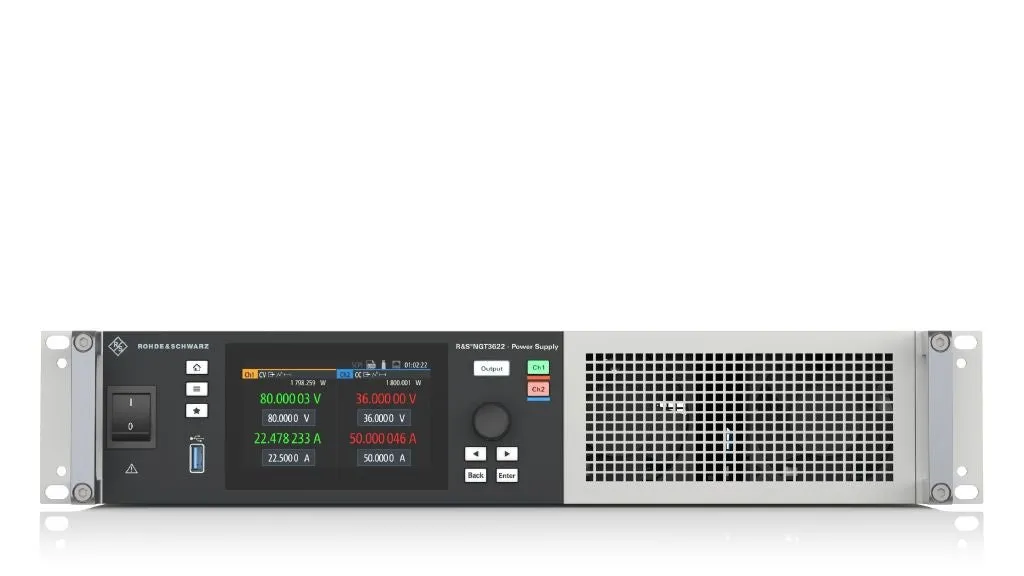

Rohde & Schwarz NGT3622 DC Power Supply
Request a quote
Rohde & Schwarz NGT3622 dual-output 3600W DC power supply with two 1800W channels at 80V/50A, featuring autoranging, channel fusion, and multi-device stacking.
Product details
| Model | NGT3622 (5602.4000.03) |
| Manufacturer | Rohde & Schwarz |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGT3622 is a dual-output 3600W DC power supply featuring two independent 1800W outputs, each capable of 80V or 50A. This compact instrument is designed for demanding test environments requiring high power, flexibility, and precision. The NGT3622 offers advanced autoranging architecture, channel fusion capabilities, and intelligent controls including a 4.3" touchscreen, built-in data logging, and remote sensing to accelerate workflows in R&D labs and automated test systems.
Key Features
- Two independent floating outputs, each with 1800W at 80V/50A
- Total output power: 3600W (1800W per channel)
- Advanced autoranging: flexible voltage/current combinations while maintaining 1800W per channel
- Channel fusion: combine outputs in series for higher voltage or parallel for increased current
- Multi-device mode: connect up to six units in series or parallel for up to 480V or 300A
- 4.3" touchscreen interface with built-in data logging
- Remote sensing and arbitrary waveform capabilities
- Compact, flexible design for laboratory and automated test applications
Applications
- High-current motor drive testing requiring multiple supply channels
- Avionics and aerospace system testing and validation
- Multi-rail power supply testing and characterization
- Series/parallel power scaling for high-voltage or high-current loads
- Automated test systems with flexible power requirements
Included Accessories
- Terminal blocks
- Quick start guide
- Safety instructions
Specifications
| Number of Outputs | 2 (independent) |
| Output Power per Channel | 1800W |
| Total Output Power | 3600W |
| Maximum Voltage per Output | 80V |
| Maximum Current per Output | 50A |
| Display | 4.3" touchscreen |
| Autoranging | Yes |
| Channel Fusion | Yes - series or parallel |
| Remote Sensing | Yes |
| Data Logging | Built-in |
| Connectivity | USB, LAN |
| Multi-Device Mode | Up to 6 units in series/parallel (480V/300A max) |
