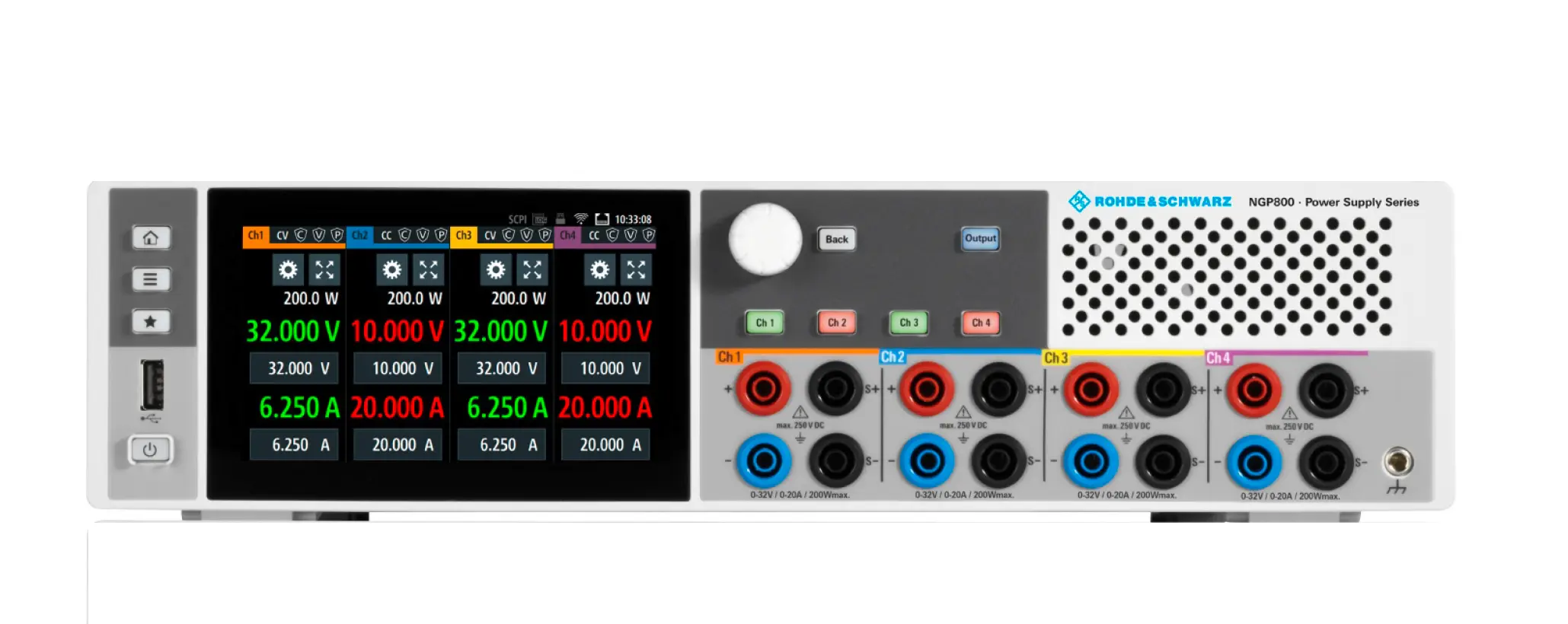

Rohde & Schwarz NGP824COMB DC Power Supply
Request a quote
Rohde & Schwarz NGP824COMB is a 4-channel 800W DC power supply with integrated digital trigger I/O and analog input capabilities.
Product details
| Model | NGP824COMB (5601.4007P98) |
| Manufacturer | Rohde & Schwarz |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGP824COMB is a promotional bundle pairing the NGP824 four-channel DC power supply with digital trigger I/O and analog input modules. This configuration enables integrated automation and external signal processing for advanced test scenarios without requiring separate module installations.
Key Features
- NGP824 base unit: 4 channels, 800W total output power
- 0-64V/10A per channel with flexible power combinations
- 5-inch touchscreen display (800×480 WVGA) for intuitive control
- Built-in measurements: voltage, current, power, energy analysis
- Integrated data logging with real-time CSV export
- Digital Trigger I/O module (NGM-K103) for sequence control
- Analog Input module (NGM-K107) for external signal integration
- QuickArb arbitrary waveform generation
- Series/parallel channel combination up to 250V/80A
- USB and LAN remote control interfaces
Applications
- Automated test systems with external triggering
- Design verification and device characterization
- Power supply system emulation and testing
- Production quality assurance and validation
Specifications
| NGP824COMB | 5601.4007P98Power SupplyWorldwideOutput channels 4 Max. output power 800 W NGP824: 64V/10A; K103: digital trigger I/O; K107: analog input |
| Touch Display | The large high-resolution touch display makes operation easy. Quickly navigate through the menus to access all functions and settings. Enter values much faster using the virtual keyboard instead of turning the knob. The home screen gives you a clear overview of all your channels. Each channel can be selected for a more detailed view with a wide variety of additional information, such as statistics and icons indicating the status of set protection or special functions. |
| Flex Power | Get the maximum power at various operating points. Unlike with single range power supplies, you can generate variable voltage and current combinations within the overall power limit of 200 W per channel. |
| Parallel & Serial Operation | If your application requires more voltage or current, simply connect the outputs in series or parallel and get up to 250 V (NGP824) or 80 A (NGP804) – now you have the flexibility you always asked for. Using the tracking function, voltage and current are adjusted on all selected channels simultaneously. |
| Built-in Measurements | The built-in measurements reduce the need for an external multimeter and simplify the setup. The separate voltage and current meters on each output give a resolution of 1 mV and 0.5 mA over the full output range of 64 V and 20 A, respectively. The integrated statistics show the min./max. and average values for power, voltage and current as well as an energy count. |
| Data Logging | Logging data is key to long-term monitoring, reviewing test setups and repeating test conditions when analyzing power behaviors or optimizing power consumption. The NGP800 power supplies simultaneously log voltage and current measurements over time on all outputs. You can easily export the timestamped data as a .CSV file for reports and documentation. |
| Arbitrary Function | Emulate the normal behaviors of your power subsystems early in the design process and simulate power problems for DUT design verification. The QuickArb function lets you generate voltage and current sequences that vary over time with dwell times down to 1 ms. Load up to eight subgroup files into one sequence to create complex patterns. |
| Graphical View | The Graphical View function allows fast and convenient analysis, especially of changing processes, such as charging and discharging or switching between different operating states of a DUT. Integrating all measurements in one box not only reduces the complexity of the test setup, but also ensures the integrity and correlation of all measurements by design. |
| Remote Control via VNC Client | Via VNC connection the NG800 power supplies can be controlled and operated from any location. All functions that can be reached by analog operation can also be accessed via remote control by VNC. The connection between power supply and PC can be established via LAN in the same network. |
| Features | Parameters |
| NGP824 | 5601.4007.034800 W0 V to 64 V0 A to 10 A |
