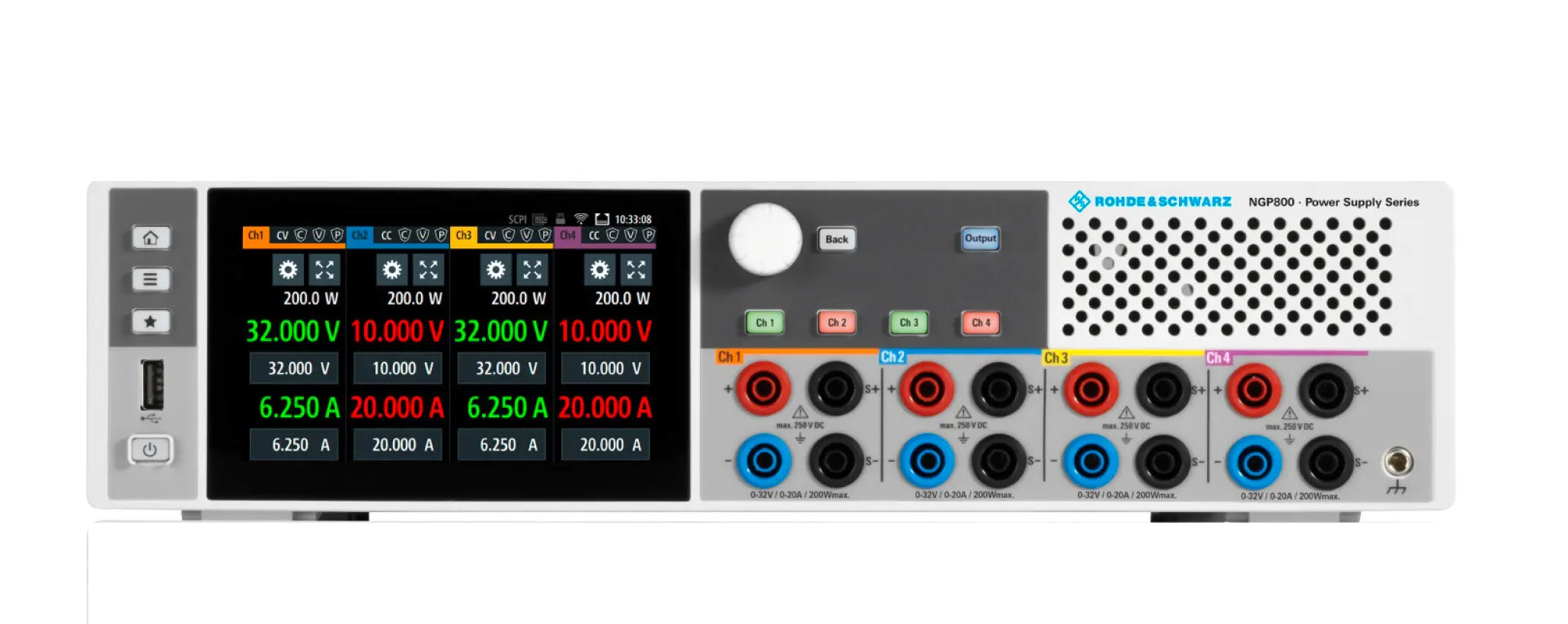

Rohde & Schwarz NGP824COMA DC Power Supply
Request a quote
Rohde & Schwarz NGP824COMA combines NGP824 power supply (0-64V/10A, 4 channels) with wireless LAN, digital trigger I/O, and analog input.
Product details
| Model | NGP824COMA (5601.4007P99) |
| Manufacturer | Rohde & Schwarz |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGP824COMA is a promotional package combining the NGP824 4-channel DC power supply with three integrated interface modules: wireless LAN control, digital trigger I/O, and analog input. This bundled configuration provides expanded connectivity and automation capabilities without requiring separate optional upgrades.
Key Features
- NGP824 base unit: 4 channels, 800W total output power
- 0-64V/10A per channel with independent control
- 5-inch touchscreen display (800×480 WVGA)
- Built-in measurements: voltage, current, power, energy
- Integrated data logging with CSV export
- NGM-K102 Wireless LAN module for remote control
- NGM-K103 Digital Trigger I/O for automated sequencing
- NGM-K107 Analog Input for external control signals
- QuickArb function for arbitrary sequences
- USB, LAN, and optional GPIB interfaces
Applications
- Automated test systems with remote control capability
- Integration into production test environments
- Device characterization with external triggering
- Power subsystem simulation and validation
Specifications
| Output Channels | 4 |
| Total Output Power | 800W |
| Output Voltage per Channel | 0V to 64V |
| Output Current per Channel | 0A to 10A |
| Maximum Power per Channel | 200W |
| Voltage Ripple and Noise | <3mV RMS (20Hz-20MHz) |
| Current Ripple and Noise | <3.5mA RMS (20Hz-20MHz) |
| Load Recovery Time | <400μs |
| Voltage Programming Resolution | 1mV |
| Current Programming Resolution | 0.5mA |
| Voltage Readback Accuracy | ±(0.05% + 10mV) |
| Current Readback Accuracy | ±(0.1% + 10mA) |
| Display | 5-inch touchscreen (800×480 WVGA) |
| Remote Control Interfaces | USB, LAN (standard); WLAN, GPIB (optional) |
| Dimensions (W×H×D) | 362mm × 100mm × 451mm |
| Weight | 8.0kg |
