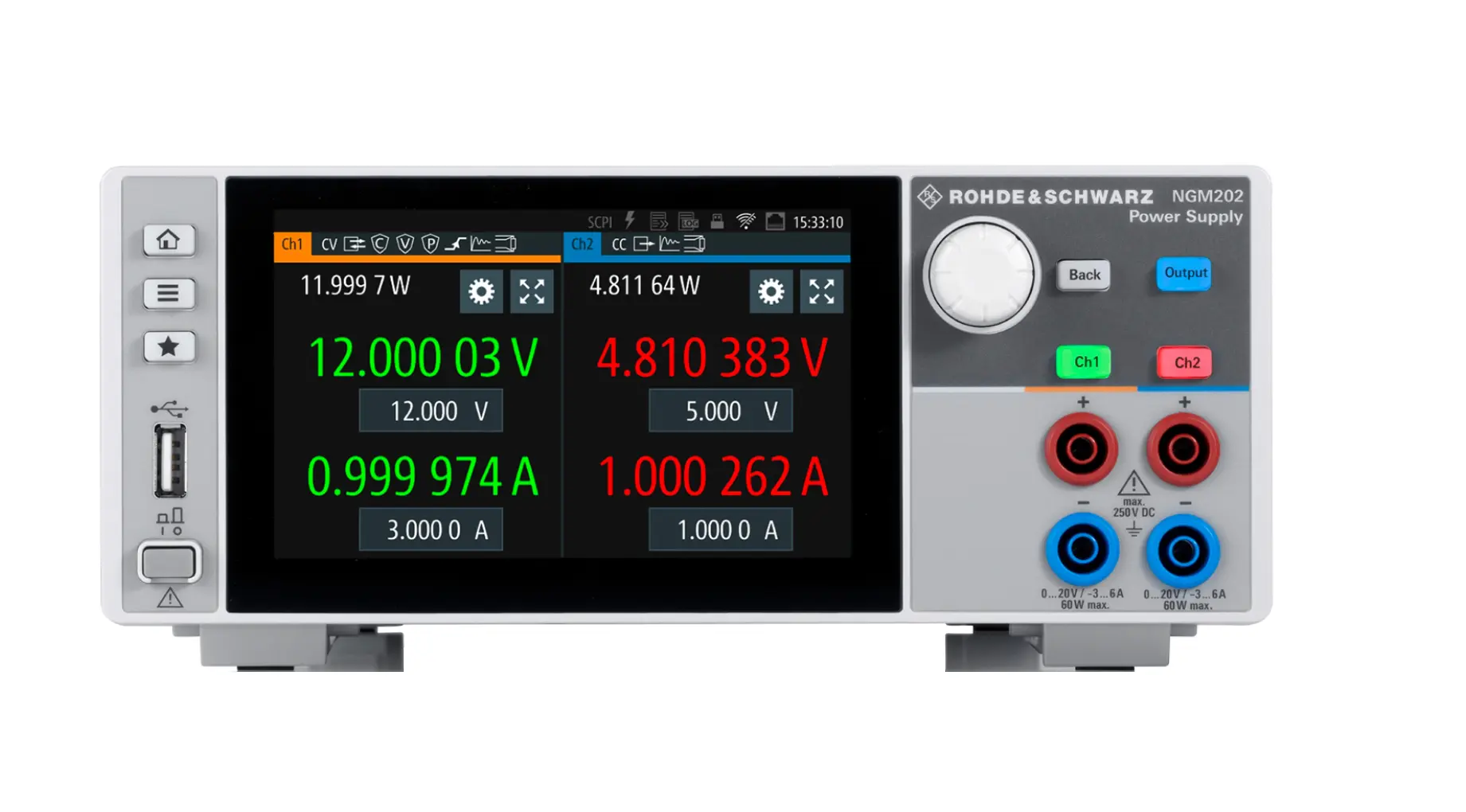

Rohde & Schwarz NGM202 Digital Power Supply
Request a quote
Rohde & Schwarz NGM202 dual-channel 120W power supply with 0-20V/6A, <30µs load recovery, 500 ksample/s data logging, and battery simulation.
Product details
| Model | NGM202 (3638.4472.03) |
| Manufacturer | Rohde & Schwarz |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGM202 is a professional-grade dual-channel power supply designed for testing sensitive electronic devices requiring precise voltage and current measurement. With two-quadrant operation, it functions as both a power source and electronic load, enabling realistic battery simulation and transient behavior testing. The NGM202 is particularly suited for applications demanding high measurement resolution and fast data acquisition capabilities.
Key Features
- Dual-channel: 120W total output (60W per channel)
- Voltage: 0V to 20V per channel
- Current: 0-6A (≤6V) / 0-3A (>6V) per channel
- Load recovery time: <30µs
- Fast data logging: 500 ksample/s acquisition rate
- 6½ digit measurement resolution (1µV / 10nA)
- Low ripple and noise: <500µVRMS / <1mARMS
- Two-quadrant architecture (source and sink modes)
- Galvanically isolated channels with short-circuit protection
- Optional digital voltmeter functionality (NGM-K104)
- Battery simulation capability (NGM-K106 option)
- Wireless LAN and GPIB interface options available
Applications
- Battery simulation and characterization under load
- High-speed current and voltage acquisition during transients
- Device startup behavior and mode transition testing
- Low-power standby and active mode profiling
- Sensitive circuit testing with minimal electrical noise
Included Accessories
- Set of power cables
- Quick start guide
Specifications
| Battery Simulation | Real batteries show different characteristics depending on the type of battery and its charging condition. Capacity, open circuit (Voc) and equivalent series resistance (ESR) are important battery characteristics that depend on its state of charge (SoC). The optional NGM-K106 functionality allows users to simulate the behavior of batteries under different charging conditions; e.g. when powering a DUT |
| High Speed Acquisition | The NGM200 power supplies offer the high-speed FastLog functionality to capture voltage and current measurement results. This data can be stored on an external USB storage device or can be transferred to an external PC via USB or LAN. With an acquisition rate of up to 500 ksample/s, voltage and current results are available every 2 μs. Instead of the readback voltage, also the voltage measured by the optional digital voltmeter functionality (NGM-K104) can be logged with 500 ksample/s. Using the two-channel NGM202, the data acquisition can run on both channels in parallel. With this high-speed acquisition, even spikes in the microsecond range that cannot be detected with slower instruments, can be detected in min./max. values. |
| Digital Voltmeter Functionality | Like other power supplies, the NGM200 instruments measure the voltage supplied to the DUT. In addition, the NGM-K104 option activates a port that allows the internal digital voltmeter to be connected to any other point in the customer's circuitry. In many cases, an additional digital multimeter is not necessary. |
| 6½ Digit Resolution | With a resolution of up to 6½ digits when measuring voltage, current and power, the NGM200 power supplies are perfect for characterizing devices that have low power consumption in standby mode and high current in full load operation. Two voltage measurement ranges and four ranges to measure current provide a high accuracy and resolutions down to 1 μV/10nA. |
| Fast Load Regulation | Consumer electronics such as mobile phones and IoT devices require very little power in sleep mode. However, the current increases abruptly as soon as the device switches to transmit mode. A power supply used to power such DUTs must be capable of handling load changes from a few µA to the ampere range without creating voltage drops or overshoots. The NGM200 power supplies have a circuit design that allows the user to determine how the power supply regulates load changes. The “Fast” default setting is optimized for speed, achieving recovery times of < 30 µs. Deactivating “Fast” slightly increases the recovery time, focusing on preventing overshoots under special load conditions. The NGM200 power supplies regulate the output impedance very fast. Especially in the range from –50 mΩ to 2 Ω, recovery times of < 200 µs can be achieved. |
| Minimum Residual Ripple and Low Noise | Advanced electronic circuitry is often very complex and sensitive to interference on the supply lines. In order to supply interference-free voltage to such sensitive DUTs, the power supplies must provide extremely stable output voltages and currents. All types of ripple and noise need to be avoided. The NGM200 power supplies have linear regulation and are ideal for sensitive DUTs. |
| NGM202 | 3638.4472.032120W0 V to 20 V≤ 6V: 0A to 6A > 6V: 0A to 3A |
| NGM202 | 3638.4472.03Two-channel power supply Included Accessories: Set of power cables Quick start guide |
