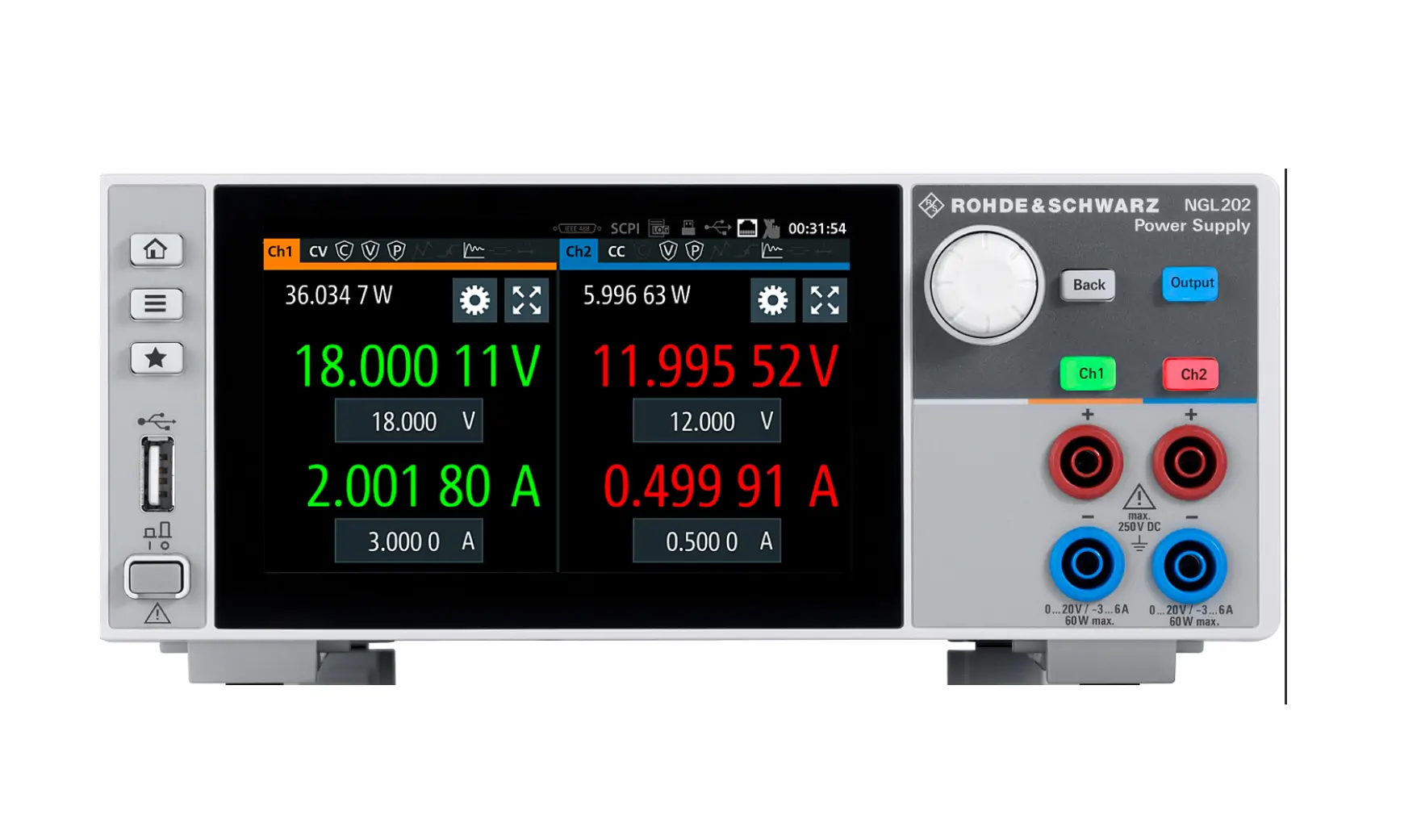

Rohde & Schwarz NGL-COM2B 2-Channel DC Power Supply
Request a quote
Rohde & Schwarz NGL-COM2B is a 2-channel DC power supply with 120W total output, galvanically isolated channels, <30µs load recovery, and 6½-digit resolution.
Product details
| Model | NGL-COM2B (3638.3376P87) |
| Manufacturer | Rohde & Schwarz |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGL-COM2B is a high-precision 2-channel DC power supply with 120W maximum output power. The NGL202 power supply unit features galvanically isolated, floating output channels and incorporates fast load recovery time with minimal ripple and noise. It is ideal for testing IoT devices, mobile phones, power amplifiers, and other applications requiring stable, low-noise power.
Key Features
- Two independent output channels, 0V to 20V per channel
- Output current: 0A to 6A (≤6V) or 0A to 3A (>6V) per channel
- Maximum output power: 120W total
- Load recovery time: <30 µs
- Ripple and noise: <500 µV RMS / <1 mA RMS
- Measurement resolution: up to 6½ digits
- Two-quadrant operation: source and sink functionality
- Galvanically isolated, floating channels
- Constant voltage, constant current, and constant resistance modes
- Built-in overload and short-circuit protection
- Remote control via USB and LAN interfaces
- 5-inch touchscreen display (800×480 pixels)
- Optional: GPIB and wireless LAN interfaces
- QuickArb function for arbitrary voltage and current sequences
- Included: NGL-K103 Digital Trigger I/O module
Applications
- Testing IoT devices and mobile phones with varying power consumption profiles
- Power amplifier and MMIC development
- Battery simulation and load testing
- Sensitive analog circuit characterization
- Laboratory and production testing environments
Included Accessories
- NGL-K103 Digital Trigger I/O module
Specifications
| NGL-COM2B | 3638.3376P87Power SupplyWorldwideOutput channels 2 Max. output power 120 W NGL202: K103: digital trigger I/O |
| Optimized Load Recovery Time | Consumer electronics such as mobile phones and IoT devices require very little current in sleep mode. However, the current requirement increases abruptly as soon as they switch to transmit mode. A power supply used o power such DUTs must be capable of handling current increases from a few μA to the ampere range without creating voltage drops or overshoots. Thanks to their fast load recovery time of 30μs even during a challenging load change, the NGL200 power supplies are ideal for powering IoT and other battery-operated devices. |
| 6½ Digit Resolution | With a resolution of up to 6½ digits when measuring voltage, current and power, the NGL200 power supplies are perfect for characterizing devices that have low power consumption in standby mode and high current in full load operation. The entire measuring range is covered without having to switch ranges. This results in faster measurements. In many cases, an additional digital multimeter is no longer necessary. |
| Minimal Ripple and Noise | Advanced electronic circuitry is often very complex and sensitive to interference on the supply lines. In order to supply interference-free voltage to such sensitive DUTs, the power supplies must provide extremely stable output voltages and currents. All types of ripple and noise need to be avoided. The NGL200 power supplies have linear regulation and are ideal for sensitive DUTs. |
| Two Quadrant Operation | The two-quadrant architecture of the NGL200 power supplies allows them to function both as a source and sink and simulate batteries or loads. The power supply automatically switches from source to sink mode. As soon as the externally applied voltage exceeds the set nominal voltage, current flows into the power supply. This is indicated by a negative current reading |
