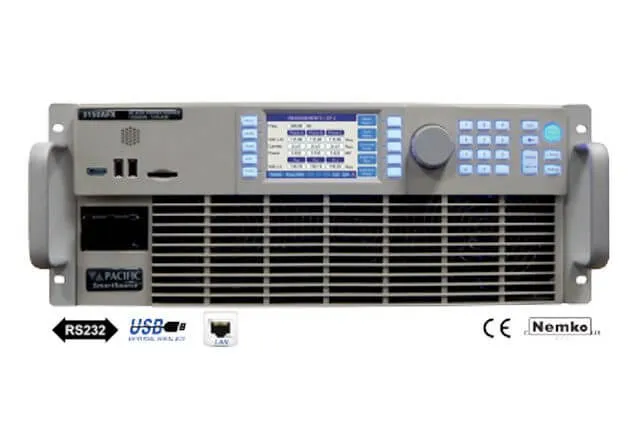

Pacific Power 3150AFX-2L AC/DC Power Source
Pacific Power 3150AFX-2L is a 15 kVA programmable power source with precision ±0.02% voltage control, waveform capture scope, harmonic measurement, and extensive I/O for advanced testing.
Product details
| Model | 3150AFX-2L |
| Manufacturer | Pacific Power |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Pacific Power 3150AFX-2L is a fully featured programmable AC and DC power source from the AFX Series, delivering 15 kVA of power in a compact 4U form factor. It combines high power density with precision voltage programming and comprehensive measurement capabilities, making it suitable for complex test applications ranging from simple frequency conversion to advanced harmonic immunity and transient simulation testing.
The 3150AFX-2L features state-of-the-art digital power conversion using high-frequency pulse width modulation, resulting in efficient and quiet operation. The unit supports single, split, and three-phase output configurations with comprehensive metering, waveform capture, and harmonic analysis for complete visibility into power quality during testing.
Key Features
- AC output 0–300V or 0–333V L-N / 0–576V L-L configurations
- DC output 0–425V
- Output frequency DC to 1200 Hz (full power), 1–3000 Hz with restrictions
- Single, split, and three-phase switch-selectable output
- Sine, square, triangle, THD, and arbitrary waveforms
- Precision voltage programming: 0.02% with Continuous Self-Calibration (CSC)
- Waveform capture scope function for voltage and current on all phases
- Harmonic measurement for voltage and current on all phases
- True-RMS metering of volts, amps, power, VA, power factor, and crest factor
- Programmable output impedance
- Extensive analog and digital I/O for ATE and system integration
- 200 stored programs for static and dynamic transient testing
- LIST, PULSE, and STEP mode transient capability
- Standard interfaces: RS-232, USB, GPIB, Ethernet, LXI compliant
- IVI Instruments drivers and SCPI compatibility
- POWER FLEX upgrade program for higher power configurations
- Available Windows graphical user interface (PPSC Manager) or legacy UPC Studio
Applications
- Frequency conversion and AC power line simulation
- Harmonic immunity and power quality testing
- Transient and surge waveform simulation
- DC power supply testing with multiple output modes
- Equipment design validation and compliance testing
- Automated test systems and ATE integration
Included Accessories
- Test leads and connectors
- Communication cables (RS-232, USB, GPIB)
- User documentation and software
- Optional PPSC Manager software suite
Specifications
| Maximum Voltage | 400V |
| Maximum Power | 15000W |
| Channel/Port Count | 3 |
| Phases | 1/3 |
