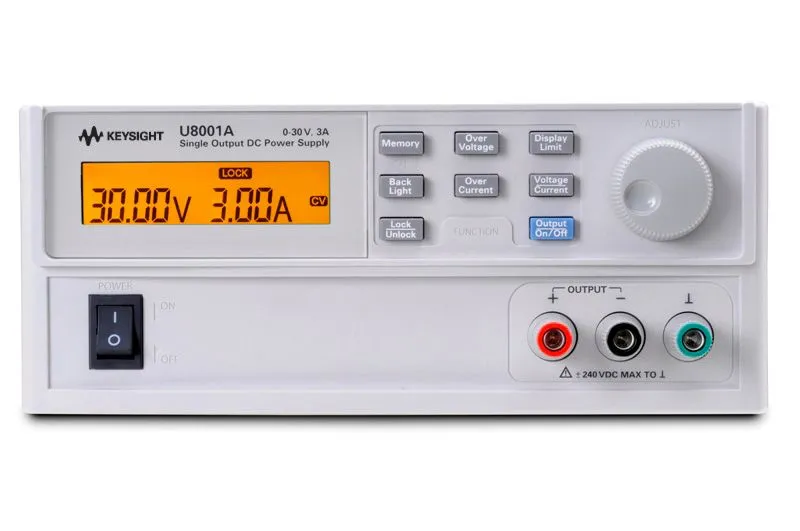

Keysight U8001A DC Power Supply
Request a quote
Keysight U8001A is a 90 W adjustable DC power supply (0–30 V, 0–3 A) with <1 mVrms ripple, 0.01% load regulation, and three-position memory storage.
Product details
| Model | U8001A |
| Manufacturer | Keysight |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight U8001A is a 90 W manually adjustable DC power supply designed for electronics manufacturing, testing, and educational applications. It combines the simplicity of manual control with programmable supply features such as memory presets, overvoltage protection, and excellent load regulation.
Key Features
- Output: 0 to 30 V, 0 to 3 A (90 W)
- Low ripple and noise: <1 mVrms
- Load regulation: <0.01%
- Readback accuracy: better than 0.35%
- Easy rotary knob and keypad controls for flexible setting resolution
- Overvoltage and overcurrent protection
- Memory capability: store and recall three preset configurations
- Keypad lock feature for security
Applications
- Electronics manufacturing and testing
- Educational laboratory work
- Bench-top device testing and characterization
- Applications requiring stable, adjustable DC power
Specifications
| Maximum Voltage | 30V |
| Maximum Current | 3A |
| Maximum Power | 100W |
| Channel/Port Count | 1 |
| Phases | 1 |
