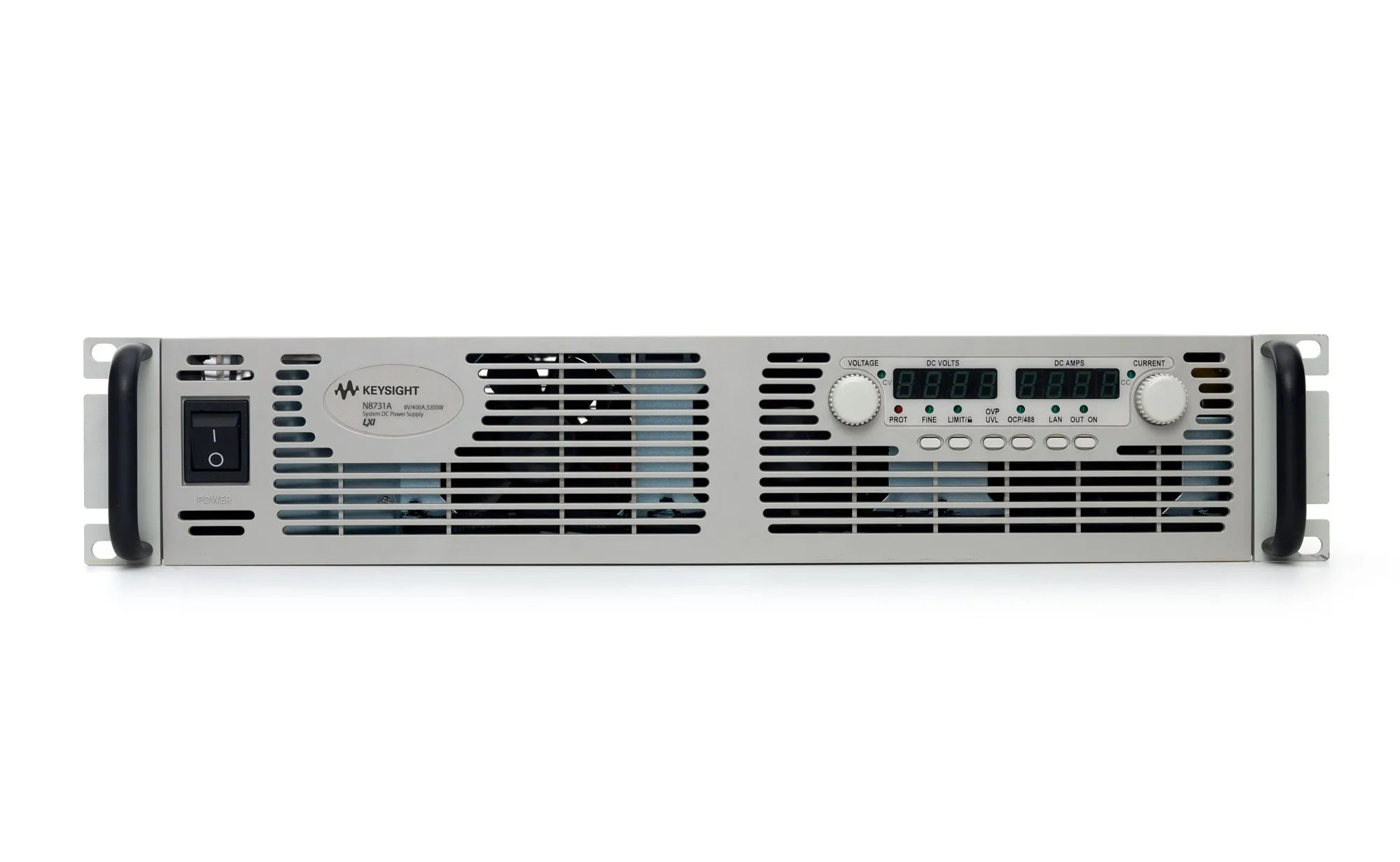

Keysight N8731A 8V 400A DC Power Supply
Request a quote
Keysight N8731A is an 8V, 400A programmable DC power supply in a compact 2U rackmount package with output noise as low as 8mVrms.
Product details
| Model | N8731A |
| Manufacturer | Keysight |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N8731A is a compact, high-performance programmable DC power supply rated for 8V output, 400A current, and 3200W power in a space-saving 2U rackmount package. It delivers stable, low-noise power with flexible AC input options and multiple interface types for automated test equipment and laboratory applications.
Key Features
- Output: 8V, 400A, 3200W
- Compact 2U rackmount package with front-to-back airflow for simplified rack mounting
- Low noise output: 8 mVrms (60 mVp-p)
- Programming accuracy: 0.05% + 4 mV (voltage), 0.1% + 800 mA (current)
- Simple front panel operation with separate knobs for voltage and current
- Multiple connectivity: USB, LAN (LXI-Core), and GPIB interfaces
- Extensive device protection: overcurrent, overvoltage, under-voltage, and overtemperature
- Flexible AC input options: 208V, 230V, or 400V, 3-phase
- Connect up to 4 units in parallel for higher current output
- Built-in voltage and current measurement
Applications
- Automated test equipment (ATE) systems
- High-current laboratory testing
- Device characterization and burn-in testing
- Research and development
Specifications
| Maximum Voltage | 8V |
| Maximum Power | 3000W |
| Channel/Port Count | 1 |
| Phases | 1 |
