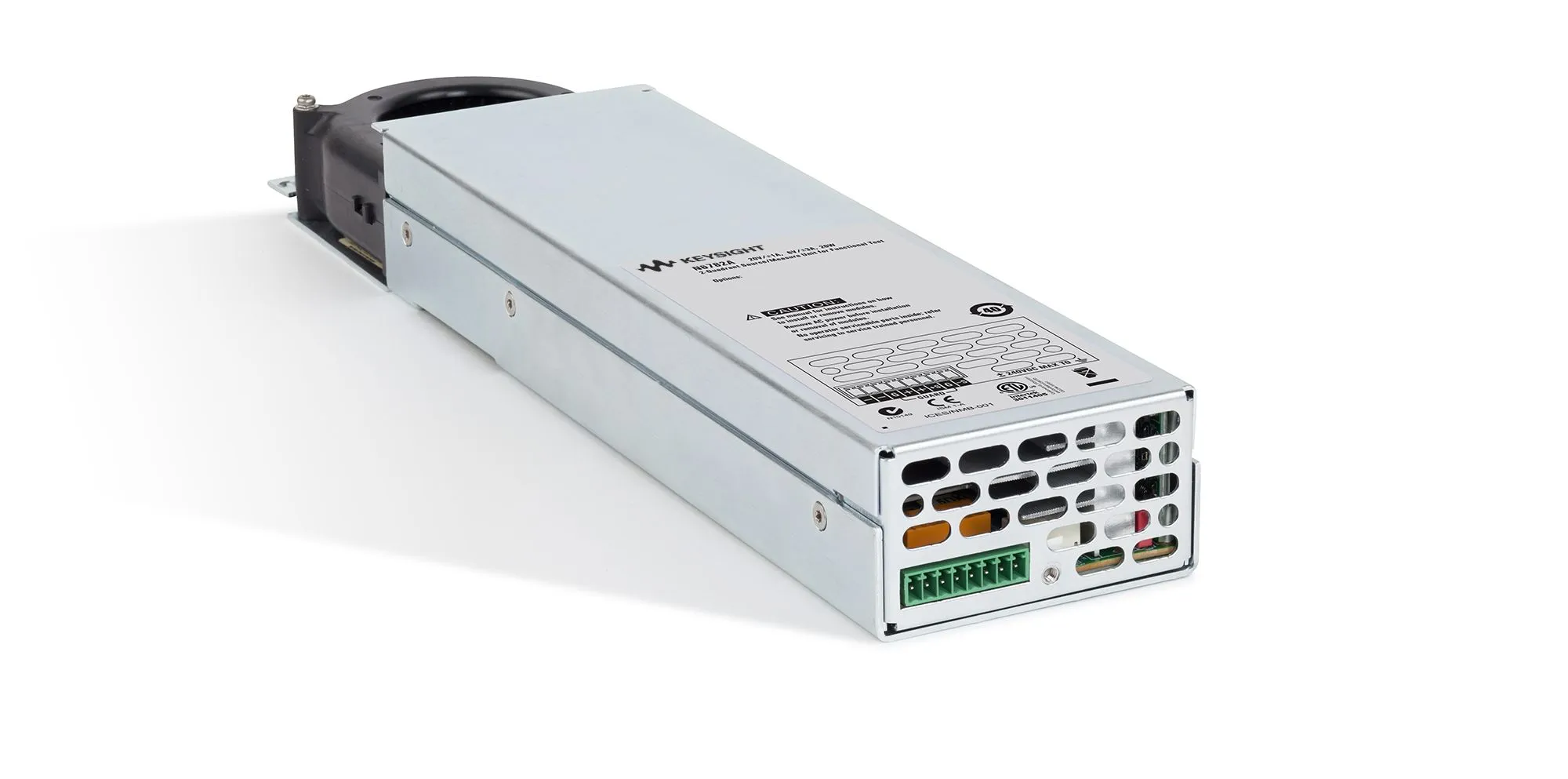

Keysight N6783A Battery Charge/Discharge Module
Request a quote
Keysight N6783A is a 2-quadrant power module with 0.06% voltage accuracy and integrated measurement system for battery-powered device testing.
Product details
| Model | N6783A |
| Manufacturer | Keysight |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N6783A is a modular power module designed as part of the N6700 series modular power system. It offers 2-quadrant operation, allowing it to function as either a power supply for charging or as an electronic load for discharging, making it ideal for battery validation and testing in mobile device development.
Key Features
- 2-quadrant operation (source and sink capable)
- High precision voltage accuracy of 0.06% + 19 mV
- Built-in digitizing measurement system
- Fast up/down programming — up to 50 times faster than conventional power supplies
- Autoranging outputs for maximum flexibility
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector
Applications
- Battery validation and characterization for mobile devices
- Battery conditioning for testing under various charge states
- Research and development of battery-powered devices
- Long-term and short-term accurate measurements
Specifications
| Output Ratings | Voltage: 8 V Current: -2 A to +3 A Power: 24 W |
| Programming Accuracy (at 23°C ±5°C) | Voltage: 0.1% + 10 mV Positive Current: 0.1% + 1.8 mA Negative Current @ -2 A: 0.2% + 1.8 mA |
| Measurement Accuracy (at 23ºC ±5ºC) | Voltage: 0.05% + 5 mV Current high range: 0.1% + 600 µA Current low range (≤ 150 mA): 0.1% + 75 µA |
| N6783A-BAT ² | 8V, 3A, 24W battery charge/discharge module |
| N6783A-MFG ² | 6V, 3A, 18W mobile communications module |
