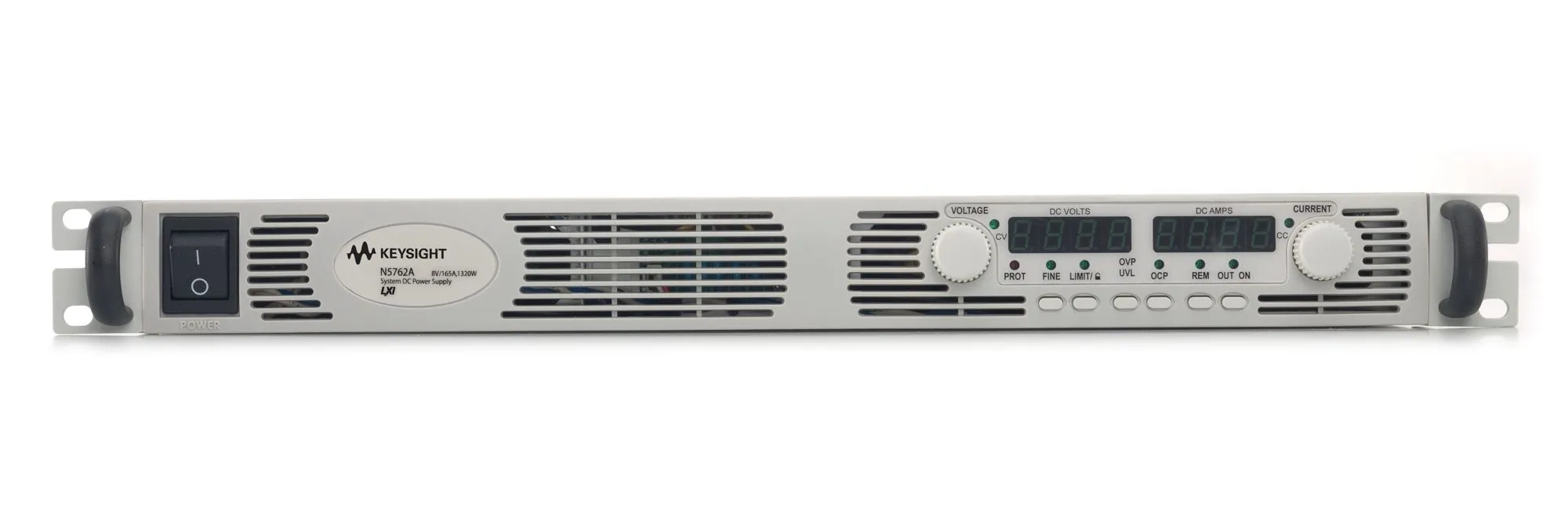

Keysight N5762A DC System Power Supply
Request a quote
Keysight N5762A is an 8V, 165A single-output DC power supply delivering 1320W in a compact 1U package with low noise and LXI compliance.
Product details
| Model | N5762A |
| Manufacturer | Keysight |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N5762A is an 8V, 165A single-output DC power supply from the N5700 Series, designed for automated test equipment and laboratory applications. It delivers 1320W of power in a compact 1U package with low noise output and comprehensive device protection.
Key Features
- Output: 8V at 165A (1320W)
- Low noise output: as low as 8 mVrms
- Compact 1U high-density package
- Extensive device protection: overcurrent, overvoltage, and under-voltage
- Universal AC input: 85–265 Vac
- Simple front panel operation with separate voltage and current knobs
- Modern I/O: USB, LAN (LXI-Core), and GPIB
- Built-in web server for remote monitoring and control
- Power supply overtemperature protection
- Front-to-back airflow simplifies rack mounting
- Supports parallel connection of up to 4 units for higher current
- Fully compliant to LXI Class C
Applications
- Automated test equipment (ATE) systems
- Laboratory testing and development
- Device characterization and validation
- Production line testing
Specifications
| Maximum Voltage | 8V |
| Maximum Current | 160A |
| Maximum Power | 1500W |
| Channel/Port Count | 1 |
