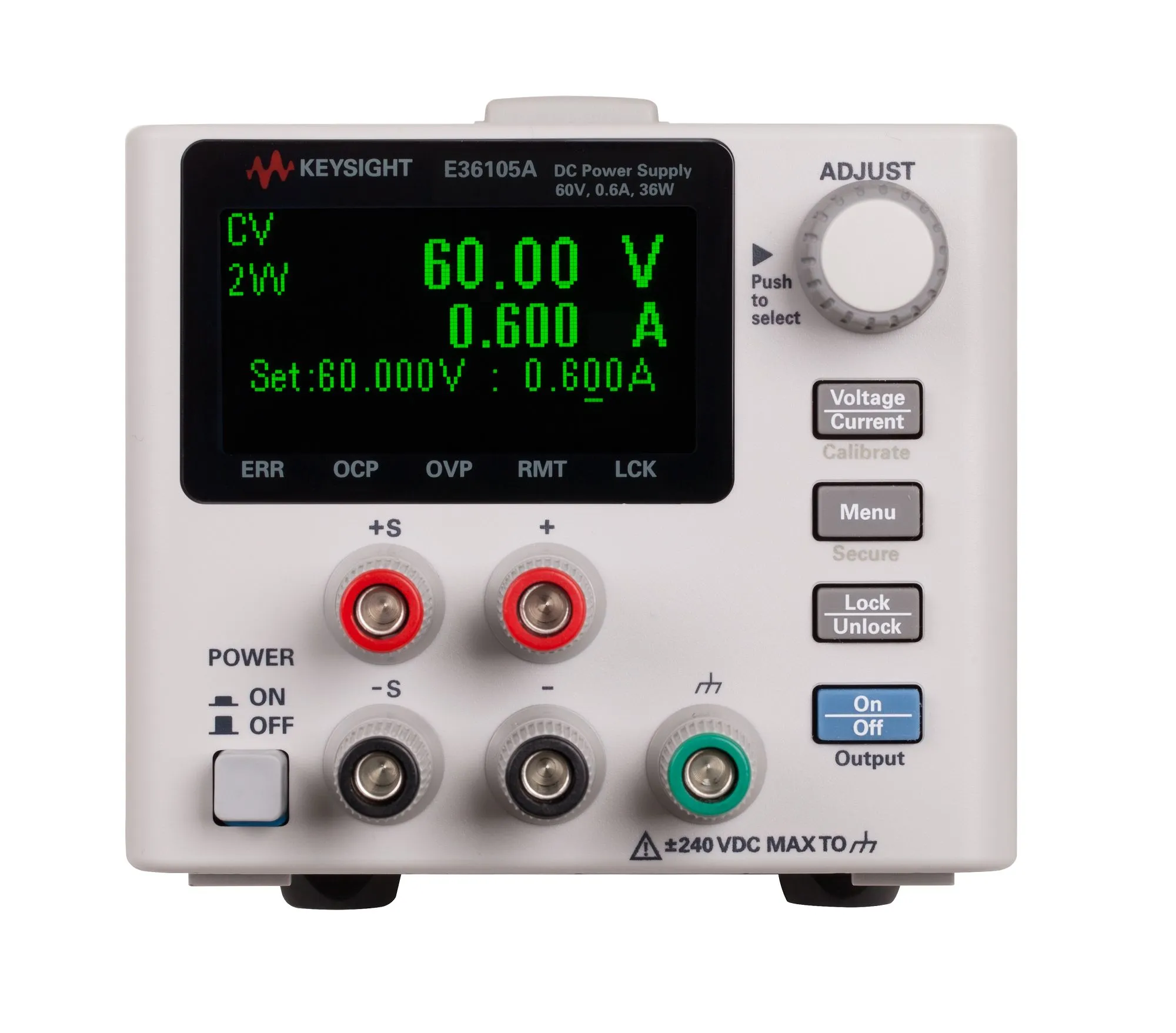

Keysight E36105A DC Power Supply
Request a quote
Keysight E36105A is a 60V/0.6A bench DC power supply with OLED display, overvoltage/overcurrent protection, and USB/LAN connectivity for programmable automation.
Product details
| Model | E36105A |
| Manufacturer | Keysight |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight E36105A is a compact bench DC power supply from the E36100 Series, delivering stable 60V/0.6A output in a 2U 1/4-rack form factor. It features advanced low-noise linear design with overvoltage, overcurrent, and overtemperature protection. The high-contrast OLED display provides excellent visibility from any angle, and the unit includes modern USB and LAN (LXI Core) connectivity for remote control, web interface access, and integration with test automation software like BenchVue.
Key Features
- Output: 60V, 0.6A, 36W
- Programming accuracy: 0.05% + 20 mV (voltage), 0.05% + 0.4 mA (current)
- Low ripple & noise: 5 mV rms voltage, 100 mV peak-to-peak
- Readback accuracy: 0.05% + 12 mV (voltage), 0.05% + 0.3 mA (current)
- Overvoltage, overcurrent, and overtemperature protection
- High-contrast OLED display with wide viewing angle
- Compact 2U 1/4-rack design
- USB and LAN (LXI Core) connectivity
- Web interface for browser-based remote control
- Store and recall up to 10 complete power supply setups
- SCPI and IVI programmable interfaces
Applications
- Low-power device testing and validation
- Sensitive equipment requiring clean, stable power
- Automated test systems with SCPI programming
- BenchVue integration for multi-instrument test control
Specifications
| Output Rating (0 to 40 °C) | Voltage: 60 V Current: 0.6 A Power: 36 W |
| Programming Accuracy | Voltage: 0.05% + 20 mV Current: 0.05% + 0.4 mA |
| Ripple & Noise (20 Hz to 20 MHz) | Voltage rms: 5 mV Voltage peak-to-peak: 100 mV Current rms: 200 µA |
| Readback Accuracy | Voltage: 0.05% + 12 mV Current: 0.05% + 0.3 mA |
| Program | Voltage360 µV1.2 mV2.1 mV3.6 mV6.0 mV |
| Readback | Voltage240 µV800 µV1.4 mV2.4 mV4 mV |
| Program (Meter) Minimum Perceivable Change | Voltage1 mV1 mV2 mV3 mV6 mV |
| Readback (Meter) | Voltage1 mV1 mV1 mV3 mV6 mV |
