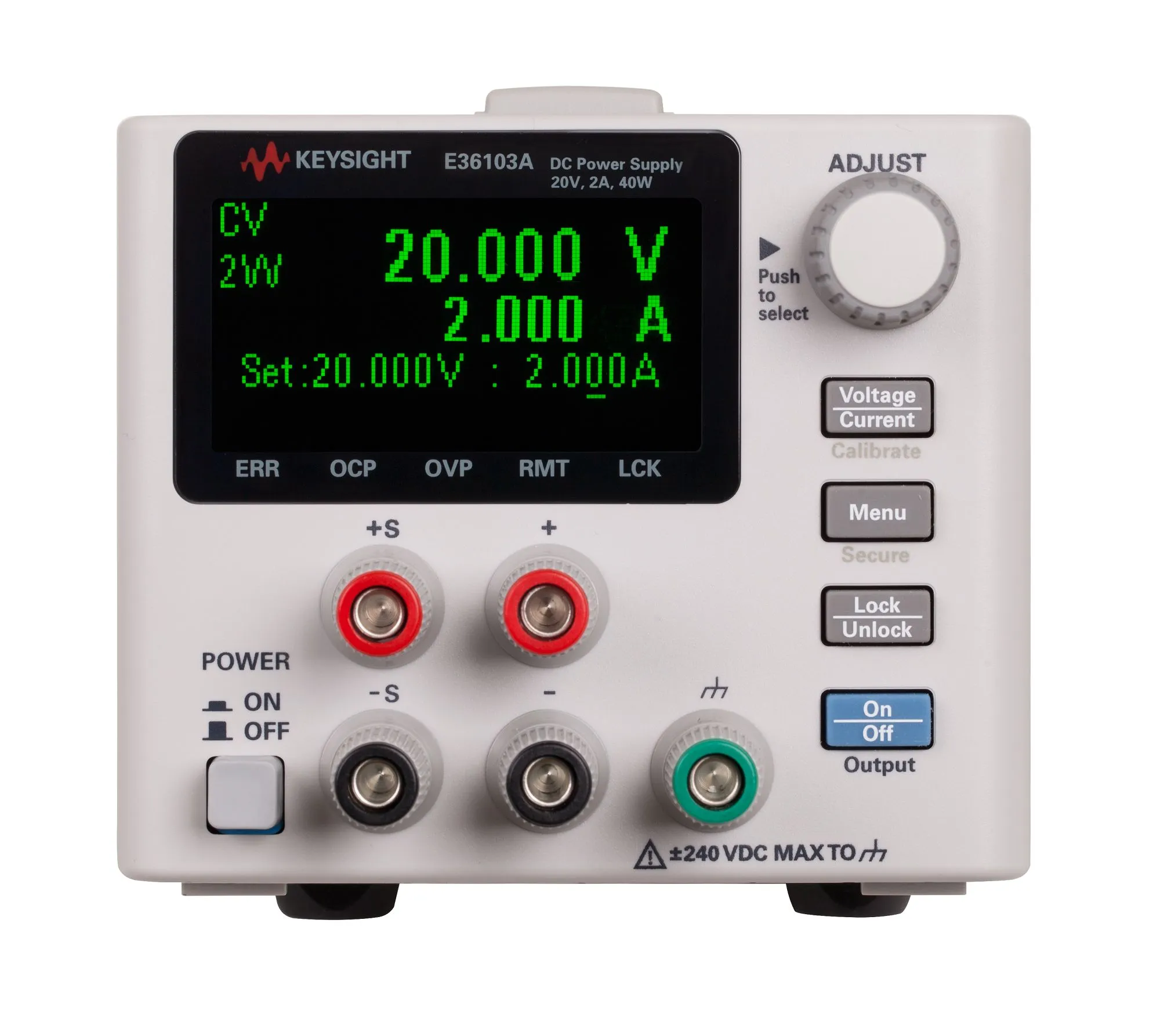

Keysight E36103A DC Power Supply

Overview

The Keysight E36103A is a compact, benchtop DC power supply from the E36100 Series, designed for laboratory and production testing of low-power devices. It delivers 20 V and 2 A (40 W maximum) with exceptional accuracy and low noise, making it ideal for powering sensitive electronic components and modules during development and testing.

Key Features

• Output: 0–20 V, 0–2 A, 40 W
• Compact 2U, ¼-rack form factor
• High-contrast OLED display, viewable from any angle
• Programming accuracy: 0.05% + 7 mV voltage, 0.05% + 1 mA current
• Readback accuracy: 0.05% + 5 mV voltage, 0.05% + 1 mA current
• Low ripple and noise: 2 mV rms, 30 mV peak-to-peak
• USB and LAN (LXI Core) connectivity for remote control
• Overvoltage, overcurrent, and overtemperature protection
• Low-power current measurement capability

Applications

• Device testing and validation in development labs
• Powering sensitive analog and digital circuits
• Burn-in and reliability testing
• Automated test systems via SCPI or IVI programming
