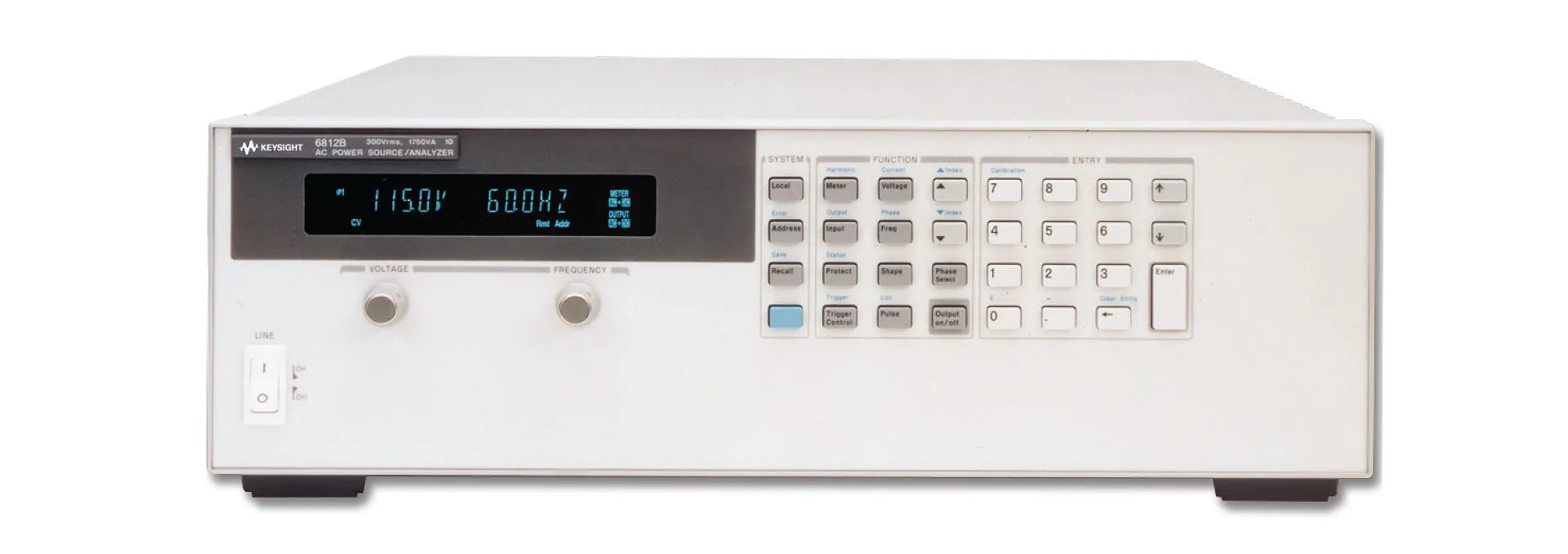

Keysight 6812B AC/DC Power Source & Power Analyzer
Request a quote
Keysight 6812B combines AC/DC power output with 16-bit measurement precision, harmonic analysis, and integrated analyzer/multimeter/oscilloscope functions in one instrument.
Product details
| Model | 6812B |
| Manufacturer | Keysight |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight 6812B is an AC/DC power source combined with a power analyzer, designed for applications such as power supply testing, UPS testing, avionics ATE, and testing of power factor corrected equipment. It consolidates the functionality of a multimeter, oscilloscope, harmonic analyzer, and power analyzer into a single flexible instrument with an intuitive graphical interface.
Key Features
- AC/DC power output with simultaneous measurement capabilities
- Voltage and current measurement: RMS, DC, AC+DC, and Peak values
- Power measurement: Real, Apparent, and Reactive Power
- Harmonic analysis up to the 50th harmonic with amplitude and phase
- Total harmonic distortion (THD) measurement
- Triggered acquisition of digitized voltage and current waveforms
- Built-in multimeter, oscilloscope, and arbitrary waveform generator functionality
- Graphical user interface requiring no programming
Applications
- Power supply testing
- UPS and battery backup system testing
- Avionics ATE (automated test equipment)
- Power factor corrected equipment testing
- Power quality and harmonic analysis
Specifications
| Output Type | AC/DC Power Source |
| Voltage Measurement Modes | RMS, DC, AC+DC, Peak |
| Current Measurement Modes | RMS, DC, AC+DC, Peak |
| Power Measurement | Real, Apparent, Reactive Power |
| Harmonic Analysis | Up to 50th harmonic with amplitude and phase |
| THD Measurement | Yes |
| Measurement Resolution | 16-bit |
| Data Acquisition | Triggered acquisition of digitized waveforms |
| Built-in Functions | Power analyzer, Multimeter, Oscilloscope, Harmonic analyzer, Arbitrary waveform generator |
