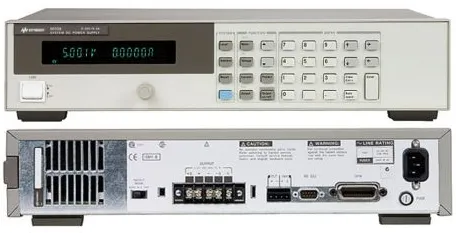

Keysight 6633B DC Power Supply

Overview

The Keysight 6633B is a versatile 100-watt, single-output DC power supply engineered for automated test applications demanding high performance and extremely low noise. Part of Keysight's high-performance DC supply family, it combines benchtop convenience with system integration capabilities to meet the rigorous demands of modern design and production test environments.

The 6633B delivers consistently fast, precise outputs with exceptional noise specifications, making it ideal for sensitive measurement and characterization work. Full GPIB programmability enables seamless integration into automated test systems of any scale.

Key Features

• Output range: 0 to 50V, 0 to 2A (100W maximum)
• Fast, low-noise outputs with superior stability
• Ripple and noise (20 Hz to 20 MHz): 0.5 mV rms (normal), 3 mV p-p (normal)
• Fast mode noise: 1 mV rms / 15 mV p-p
• Programming accuracy: 20 mV (voltage), 0.05% + 1 mA (current)
• Programmable active down-programmer with full-range current sinking
• Dual-range precision low-current measurement capability
• GPIB interface with complete remote programmability
• Optional isolation and polarity reversal relays

Applications

• Automated test system integration
• Sensitive measurement and characterization
• Component and device testing
• Production test and quality assurance
• Research and development laboratories
• Benchtop general-purpose power sourcing
