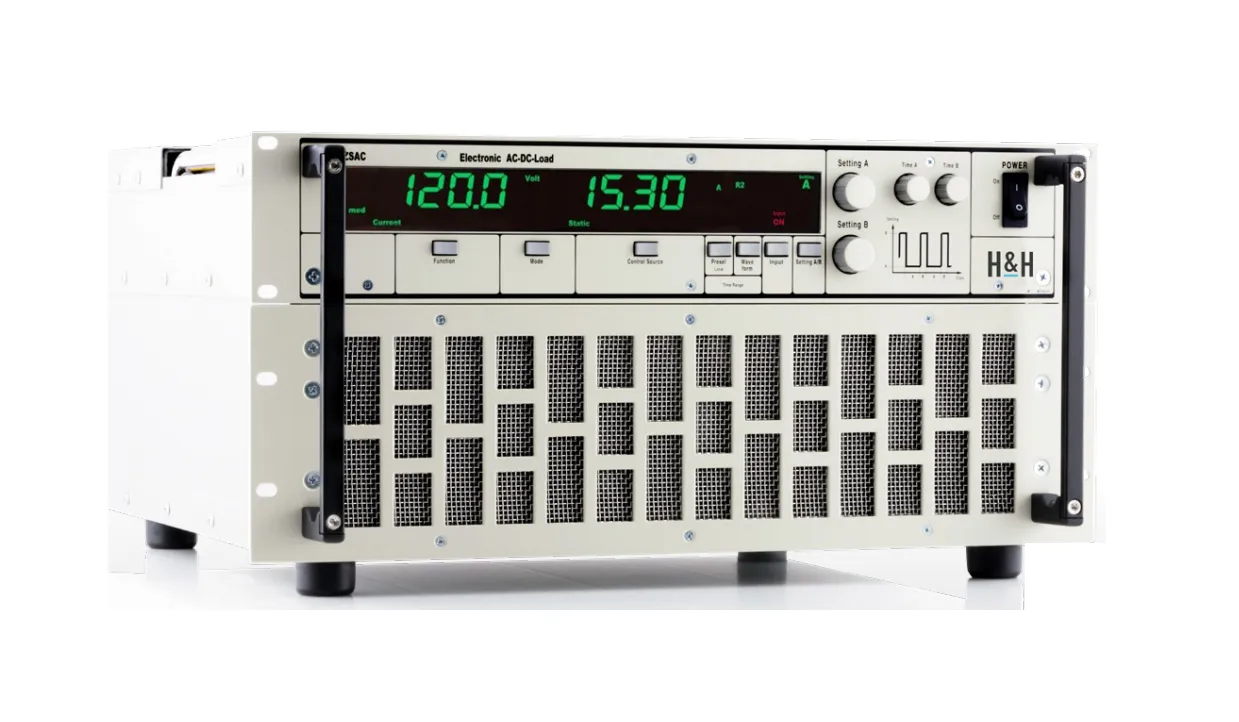

Hocherl & Hackl ZSAC1444 AC Electronic Load
Request a quote
Hocherl & Hackl ZSAC1444 is an AC/DC electronic load with programmable waveforms, frequency range up to 800 Hz, and power capability from 400 W to 21,000 W.
Product details
| Model | ZSAC1444 |
| Manufacturer | Hocherl & Hackl |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Hocherl & Hackl ZSAC1444 is an AC/DC electronic load designed for testing and characterizing AC and DC power sources. With programmable waveforms, dynamic loading capabilities, and isolated measurement outputs, the device provides comprehensive testing functionality for a wide range of applications.
Key Features
- Frequency range up to 800 Hz
- Input voltages up to 440 V
- Power range from 400 W to 21,000 W
- Operating modes: CC (Constant Current) and CR (Constant Resistance)
- Programmable waveforms including harmonics and phase control
- Phase angle adjustment combined with crest factor adjustment
- Star and delta connection options for 3-phase applications
- SCPI programming with measurement function
- Isolated measurement outputs for voltage and current
- Isolated analog control input
- Electronic protection
Applications
- Power supply testing and characterization
- Dynamic load simulation
- AC/DC source validation
- Harmonic and phase control testing
Specifications
| Phases | 3 |
| Maximum Current | 5A |
| Maximum Power | 1.4kW |
| Maximum Voltage | 440V |
