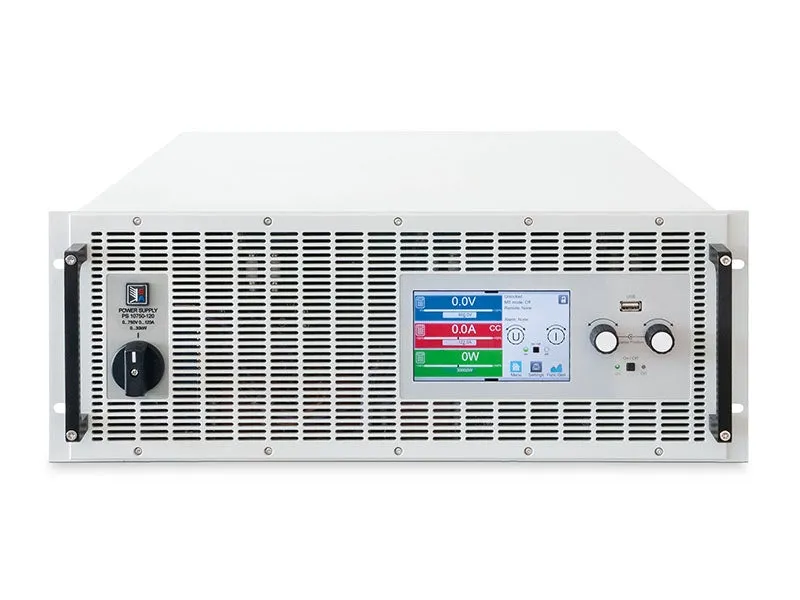

Elektro-Automatik EA-PSBE 10500-180 Programmable Bidirectional DC Power Supply
Request a quote
Elektro-Automatik EA-PSBE 10500-180 — 30 kW bidirectional DC power supply with 0-500V/180A output and up to 95.5% energy recovery efficiency.
Product details
| Model | EA-PSBE 10500-180 4U |
| Manufacturer | Elektro-Automatik |
| Category | Power Supplies & Electronic Loads |
| Availability | Made to order |
Description
Overview
The Elektro-Automatik EA-PSBE 10500-180 is a 30 kW bidirectional programmable DC power supply designed for laboratory and test applications. This economy variant of the EA-PSB 10000 series combines the functionality of both a power supply (source) and electronic load (sink) with energy recovery in a single 4U rack-mount unit.
Key Features
- Bidirectional operation: power supply and electronic load in one device
- Energy recovery with up to 95.5% efficiency
- Output range: 0-500V, 0-180A at 30 kW
- Two-quadrant operation with smooth source-to-sink switching
- 5-inch TFT touch panel with intuitive user interface
- Galvanically isolated interfaces: USB, Ethernet, analog, ModBus, SCPI
- Master-Slave bus for parallel operation of up to 64 units (expandable to 1920 kW)
- Wide AC input range: 342-528V (380V, 400V, or 480V grids)
Applications
- Battery testing and simulation for automotive and energy storage
- Fuel cell and fuel cell stack testing
- Solar array and photovoltaic inverter simulation
- Power electronic device testing and validation
- Device charging and discharging cycles
Specifications
| AC Supply | All models are provided with an active Power Factor Correction (PFC) circuit and are designed for operation on a three-phase supply with typical worldwide ratings between 380 V and 480 V AC. But also regions where only 208 V three-phase is available are covered by the US 208 V models. During load operation, the device recovers the consumed DC energy and feeds it back into the local power network. This helps saving a lot of energy costs. |
| Autoranging Power Stage | All models are equipped with a flexible autoranging bidirectional power stage which provides a higher output voltage at lower output current or a higher output current at lower output voltage, always limited to the max. rated output power. The same applies for sink mode operation. The power set value is adjustable with these models. Therefore, a wide range of applications can already be covered by the use of just one unit. |
| DC Output/Input | DC voltages between 0...60 V and 0 ...2000 V, current ratings between 0...40 A and 0...1000 A are available, all along with a power rating of 0...30kW for all standard models, while the US 208 V models are rated with 0...15 kW. The DC terminal is located on the rear panel. |
| Source-Sink Operation | One salient feature of these devices is the coalescence of an electronic load, also called sink, and a power supply, also called source, into one unit. It means, the device cannot only arbitrarily operate as sink or source, the switchover between these two operating modes occurs without interruption and time loss. This is also called two-quadrants operation. |
| Energy Recovery | The most important feature of these devices is that the AC input while connected to the grid is also used as output for the recovery of the supplied DC energy during load operation, which is converted with an efficiency of up to 95.5%. This way of energy recovery helps to lower costs and can avoid expensive cooling systems, such as they are required for conventional electronic loads which only convert energy into heat. |
| Master-Slave | All models feature a digital master-slave bus by default. It can be used to connect up to 64 units of identical models in parallel operation to a bigger system with totals formation of the actual value of voltage, current and power. This allows for a total power of up to 1920 kilowatts. The configuration of the master-slave system is either completely done on the control panels of the units or by remote control via any of digital communication interfaces. Handling of the master unit is possibly by manual or remote control (any interface). |
| Display and Control Panel | Set values and actual values of input & output voltage / current / power are clearly represented on the 5" graphic display. The color TFT screen is touch sensitive and can be intuitively used to control all functions of the device with just a finger tip. Set values of voltage, current, power or resistance can be adjusted using the rotary knobs or entered directly via a numeric pad. To prevent unintentional operations, all operation controls can be locked. |
| Analog Interface | There is a galvanically isolated analog interface terminal, located on the rear of the device. It offers analog inputs to set voltage, current, power and resistance from 0...100% through control voltages of 0 V...10 V or 0 V...5 V. To monitor the output voltage and current, there are analog outputs with 0 V...10 V or 0 V...5 V. Also, several inputs and outputs are available for controlling and monitoring the device status. |
| Feature | Description |
| Product Type | DC Laboratory Power Supply |
| Rated Voltage and Range | 0...500 V |
| Insulation | Negative DC < - > PE: ±1500 V DC Positive DC < - > PE: +2000 V DC |
| Rated Current and Range | 0...180 A |
| Rated Power | 0...30 kW (0...15 kW) 4 |
| PSBE 10500-180 4U | Rated Voltage and Range: 0...500 V Rated Current and Range: 0...180 A Rated Power: 0...30 kW (0...15 kW) * |
