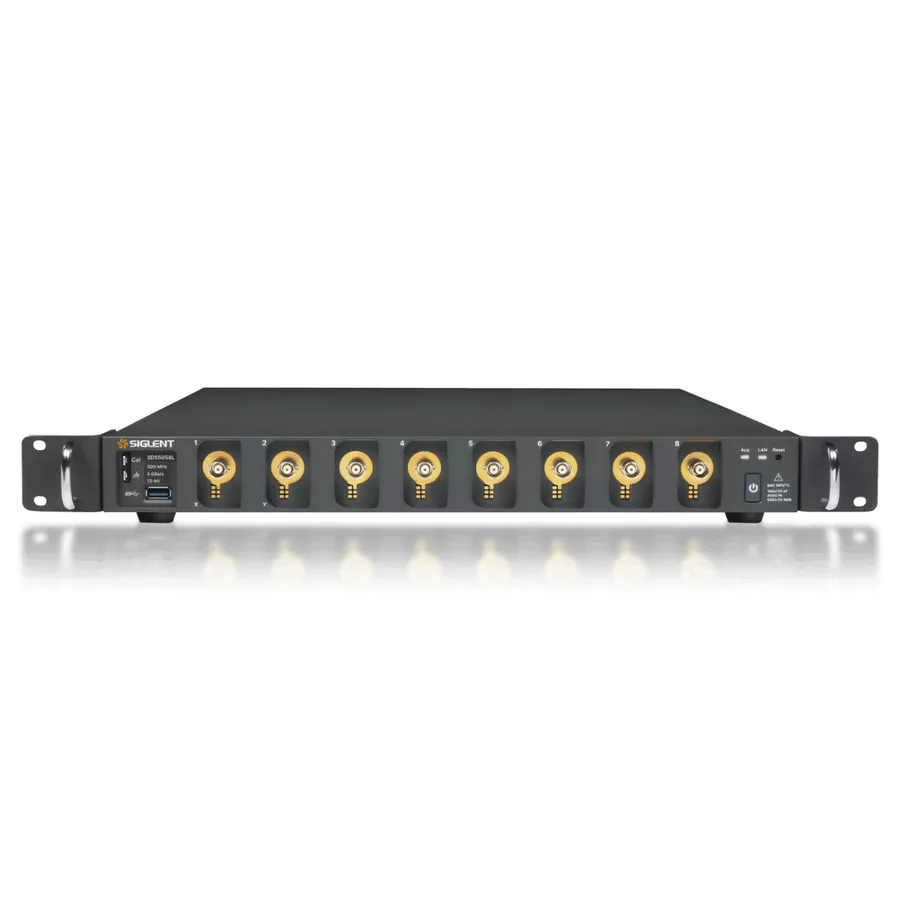

Siglent SDS5058L Digital Oscilloscope

Overview

The Siglent SDS5058L is a modular, low-profile 8-channel digital oscilloscope designed for rackmount and automated test applications. With 500 MHz bandwidth, 5 GSa/s real-time sampling, 12-bit ADC resolution, and 2.5 Gpts memory depth, it provides the same core performance as the benchtop SDS5000X HD series. Unlike the benchtop version, the SDS5058L lacks a built-in display but offers exceptional scalability: multiple units can be synchronized using the SYN64 distributor to create systems with up to 512 channels.

Key Features

• 500 MHz bandwidth with 5 GSa/s real-time sampling (2.5 GSa/s non-interleaving)
• 8 analog channels plus external trigger input
• 12-bit ADC resolution and up to 2.5 Gpts memory depth per channel
• Waveform capture rate up to 160,000 wfm/s (650,000 wfm/s in sequence mode)
• Low noise floor: 140 µVrms @ 1 GHz bandwidth
• 256-level intensity grading and color-temperature display modes
• Scalable architecture: synchronize up to 64 units via SYN64 for 512-channel systems
• Segmented acquisition (Sequence) mode for recording multiple triggered events
• Serial bus triggering and decoding: I2C, SPI, UART, CAN, LIN (standard); CAN FD, FlexRay, I2S, MIL-STD 1553B, SENT, Manchester, ARINC429 (optional)
• History waveform recording: up to 170,000 frames
• Automatic measurements on 60+ parameters with statistics
• 8 math traces with FFT (8 Mpts), filtering, and formula editor
• Advanced triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, Video
• Data analysis: Search, Navigate, Digital Voltmeter, Counter, Histogram, Bode plot, Power Analysis, Double Pulse Test
• Built-in web server for remote control over LAN via web browser or SCPI commands

Applications

• Automated test and production line monitoring
• Multi-channel data acquisition systems
• Wide bandgap semiconductor (SiC, GaN) testing
• Distributed signal monitoring and troubleshooting
• Industrial and aerospace signal analysis

Included Accessories

• 8× Passive probes (500 MHz)
• USB cable
• Quick start guide
• Wireless mouse
• Certificate of calibration
• Power cord
