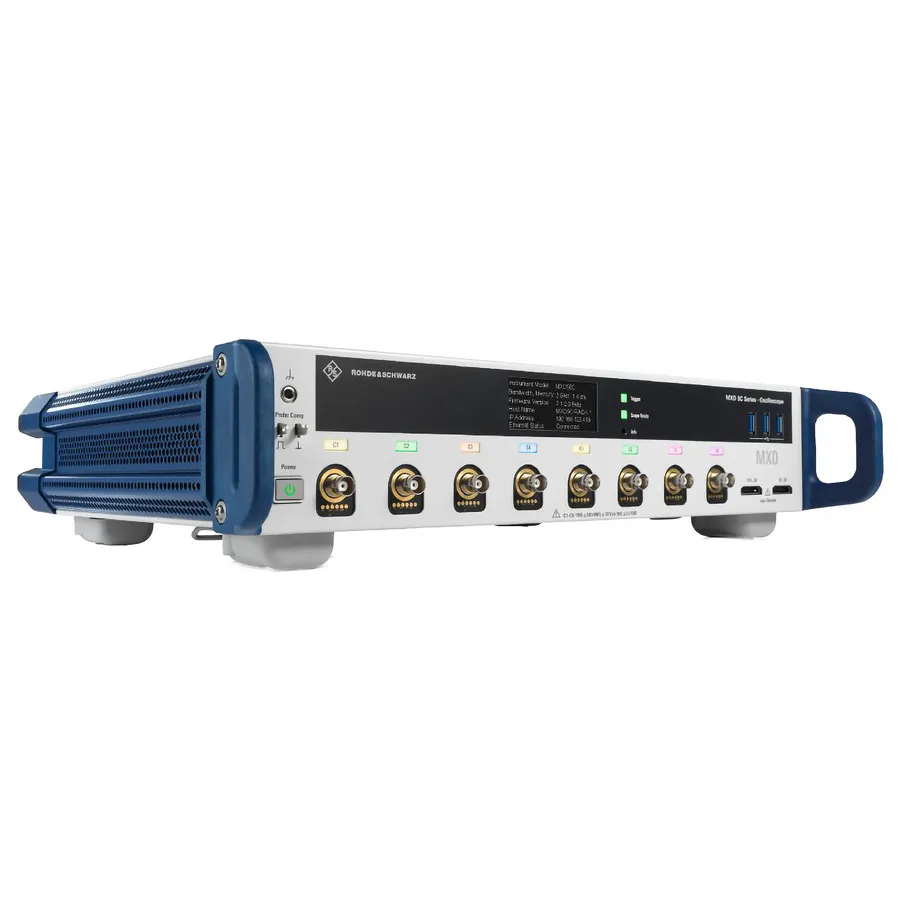

Rohde & Schwarz MXO58C Oscilloscope

Overview

The Rohde & Schwarz MXO58C is a compact 8-channel oscilloscope leveraging the same performance architecture as the MXO 5 series in a 2U rackmount form factor. Designed for applications requiring high channel density, it delivers breakthrough signal acquisition capabilities in a space-efficient package. The integrated e-ink display shows connectivity and status information, while remote control via LAN and web browser enables flexible test setups and distributed measurement systems.

Key Features

• 8 channels with bandwidth options from 100 MHz to 2 GHz
• 2U height for high channel density and rackmount applications
• 4.5 million waveforms per second update rate
• 500 Mpts of memory per channel
• 12-bit ADC with industry-leading performance specifications
• 45,000 FFTs per second and up to 4 simultaneous spectra
• Integrated e-ink display for status and connectivity information
• Remote control via LAN with integrated web browser and virtual front panel
• Optional mixed signal, arbitrary waveform generator, and additional memory upgrades

Applications

• Rackmount test environments with limited space requirements
• Remote monitoring and control applications
• Bench applications with external display or web interface
• High-density channel requirements for complex multi-signal analysis
