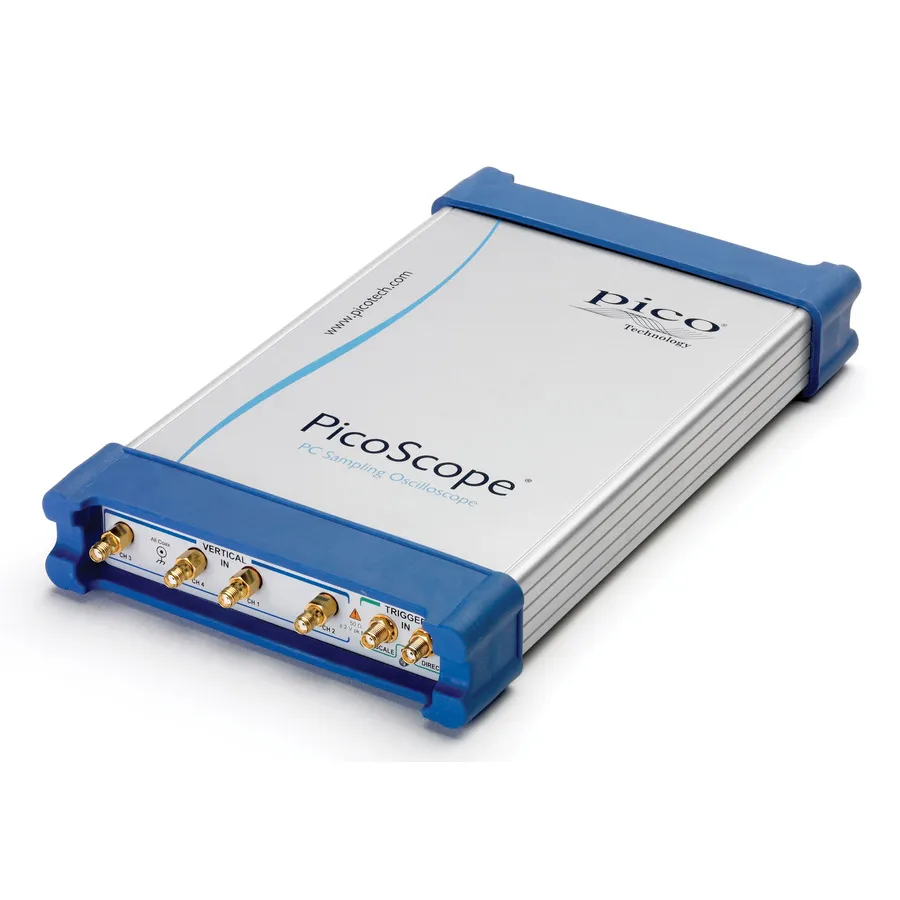

Pico Technology 9341-20 PC USB Oscilloscope

Overview

The Pico Technology 9341-20 is a PC-based sampling oscilloscope from the PicoScope 9300 Series, designed for high-frequency signal acquisition and analysis. It delivers 20 GHz bandwidth with exceptionally low sampling jitter and 64 fs timing resolution for capturing fast transient events and serial data patterns.

Key Features

• 20 GHz bandwidth with 2-channel configuration
• 16-bit vertical resolution with up to 1 MS/s sampling rate
• 64 fs timing resolution for sequential sampling of transient signals
• 15 GHz prescaled and 2.5 GHz direct trigger capabilities
• 11.3 Gb/s clock recovery for serial data and high-speed protocol analysis
• Eye diagram and mask testing up to 16 Gb/s with pattern lock
• USB connectivity with Windows-based intuitive interface
• Greater than 60 dB dynamic range and trace lengths up to 32 kS

Applications

• Telecom and radar design, testing, and manufacturing
• Optical fiber, transceiver, and laser characterization
• RF and microwave system measurements
• Serial protocol analysis (Ethernet, HDMI, USB, PCI, SATA)
• Semiconductor device characterization
• TDR/TDT cable, connector, and PCB analysis

Included Accessories

• PicoSample 3 software CD
• Quick Start Guide
• 12V universal power supply
• USB cable (1.8 m)
• LAN cable (1 m)
• 18 GHz 50 Ohm SMA(m-f) adapter with connector saver (TA170)
• PicoWrench
• Storage and carry case
