Pico Technology 9301-20 PC USB Oscilloscope
Request a quote

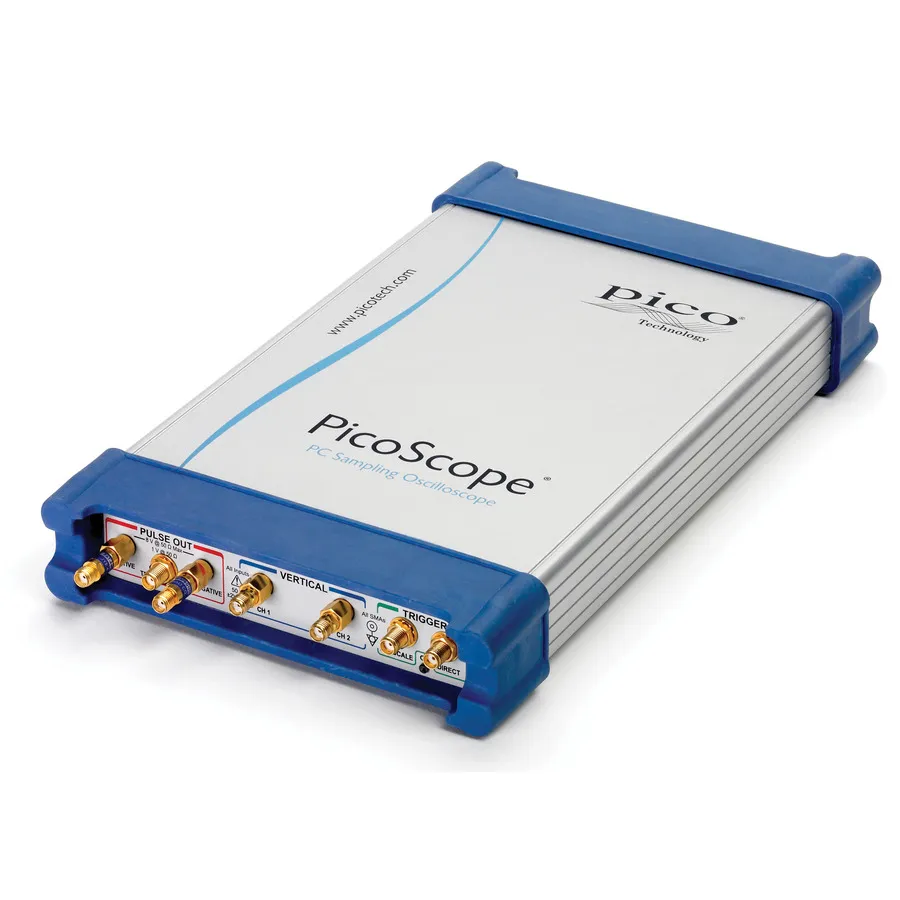

Pico Technology 9301-20 is a high-speed sampling oscilloscope with 20GHz bandwidth, 2 channels, 1MS/s ADC, and 16-bit resolution for precision RF and transceiver testing.
Product details
| Model | 9301-20 |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Pico Technology 9301-20 is a high-speed sampling oscilloscope with 20GHz bandwidth, designed for telecom, RF, and high-speed digital measurements. It features 2 channels, 1MS/s sampling rate, and 16-bit vertical resolution with 64fs timing accuracy.
Key Features
- 20GHz bandwidth
- 2 channels
- 1MS/s sampling rate with 64fs timing resolution
- 16-bit vertical resolution and 60dB dynamic range
- Up to 15GHz prescaled and 2.5GHz direct trigger
- Eye and mask testing to 16Gb/s
- Windows user interface with touch compatibility
Applications
- Telecom and radar testing, service and manufacturing
- Optical fiber, transceiver and laser testing
- RF, microwave and gigabit digital system measurements
- Ethernet, HDMI, USB, PCI, SATA testing
- Semiconductor characterization
- TDR/TDT analysis of cables, connectors, backplanes and PCBs
Included Accessories
- PicoSample 3 software
- 12V universal power supply
- USB cable (1.8m)
- LAN cable (1m)
- 18GHz 50Ohm SMA connector adaptor
- Storage and carry case
- Quick start guide and PicoWrench
Specifications
| Bandwidth | 20 GHz |
| Analog Channels | 2 |
| Sampling Rate | 1 MS/s |
| Digital Channels | None |
| Type | DSO PC |
| Vertical Resolution | 16 bit |
| Series | PicoScope 9300 Series |
| Alternate Product Number | PQ338 |
