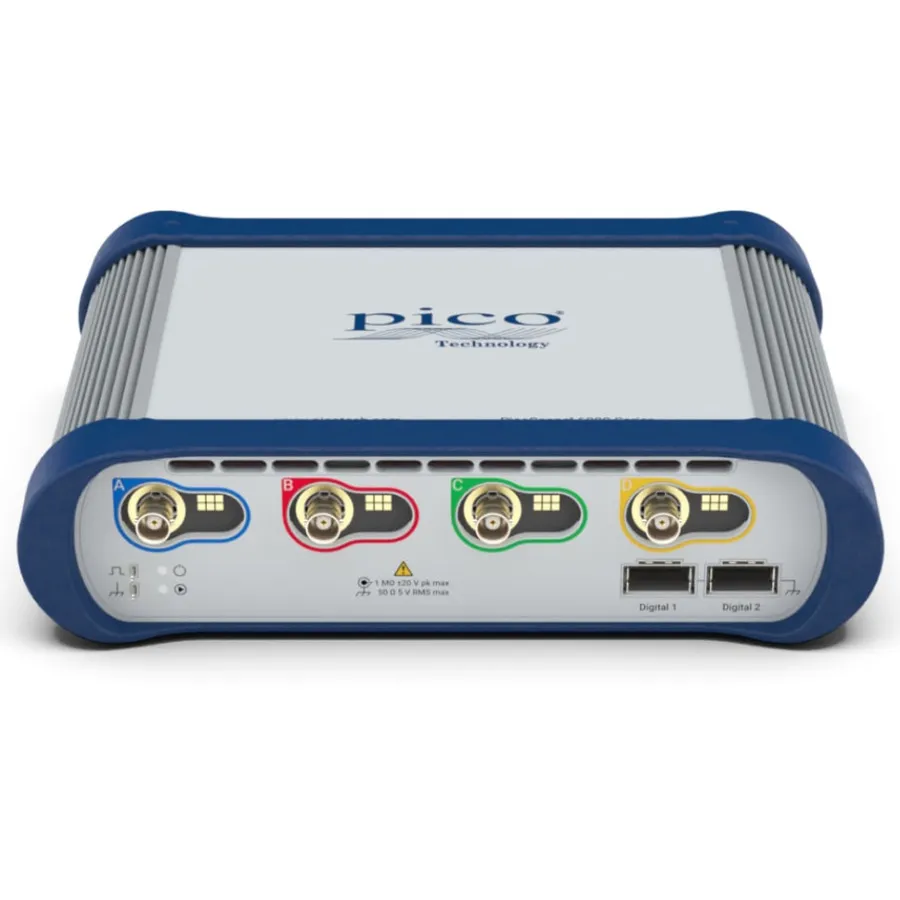

Pico Technology 6824E PC USB Oscilloscope

Overview

The Pico Technology 6824E is a portable PC-based USB oscilloscope delivering 8-channel analog measurement with 500 MHz bandwidth and 8-bit vertical resolution. Part of the PicoScope 6000E Series, it provides high-performance signal acquisition for embedded systems, signal processing, power electronics, and research applications. With integrated analysis software and 21 serial protocol decoders, it combines the capabilities of an oscilloscope, logic analyzer, and protocol analyzer in one portable instrument.

Key Features

• 8 analog channels with 500 MHz bandwidth (–3 dB)
• 8-bit fixed vertical resolution with 2 GS memory depth
• Rise time <850 ps for accurate high-speed measurements
• Selectable 20 MHz bandwidth limit for noise reduction
• BNC(f) input connectors with x10 probe readout pin compatibility
• 300,000 waveforms per second update rate for real-time visualization
• PicoScope, PicoLog, and PicoSDK software included
• 21 serial protocol decoders and analyzers (USB, CAN, I2C, SPI, etc.)
• Advanced triggers: edge, window, pulse width, dropout, runt, and logic
• Mask limit testing and user-defined alarms for automated measurement
• High-resolution time-stamping of waveforms for precise synchronization

Included Accessories

• P2056 500 MHz 10:1 passive probes (4)
• 12 V power adaptor with universal input
• USB cable 1.8 m
• Localized IEC mains lead
• Storage/carry case
• User's Guide

Applications

• High-performance embedded systems design and verification
• Signal integrity analysis and timing error detection
• Power electronics development and thermal testing
• Automotive and mechatronics system testing
• Physics research and particle accelerator experiments
• Multi-channel signal measurement and protocol analysis
• Glitch detection and crosstalk measurement
