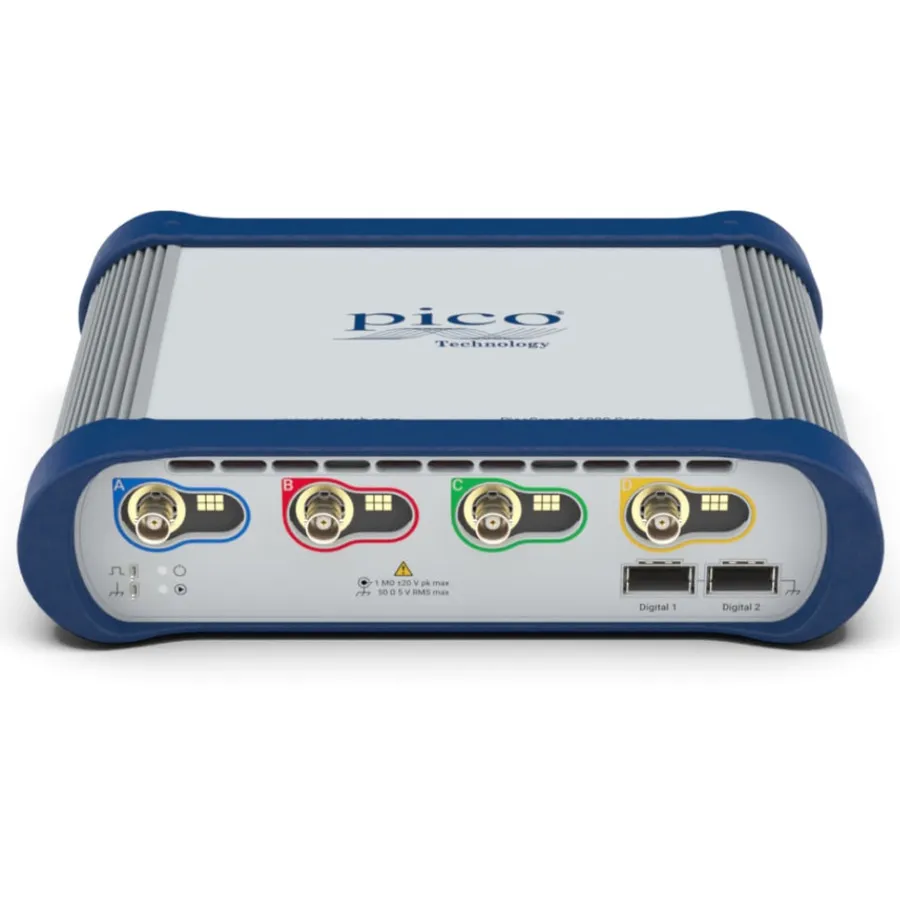

Pico Technology 6804E PC USB Oscilloscope

Overview

The Pico Technology 6804E is a high-performance USB-connected oscilloscope designed for design engineers and researchers working with advanced signal analysis. Part of the PicoScope 6000E Series, it offers 8 analog channels, 500MHz bandwidth, and 5GS/s sampling rate with 8-bit resolution, providing the timing and amplitude resolution needed to analyze complex signal integrity issues.

Key Features

• 8 analog channels with 500MHz bandwidth (−3 dB)
• 5GS/s sampling rate with 200 ms capture time
• 8-bit vertical resolution with 2 GS deep memory
• Rise time < 850 ps for high-fidelity signal capture
• Selectable 20MHz bandwidth limit for noise reduction
• 50MHz 200MS/s 14-bit arbitrary waveform generator (AWG)
• Advanced trigger options: edge, window, pulse width, dropout, interval, runt, and logic
• Mask limit testing and user-definable alarms
• 21 serial protocol decoder/analyzers included
• High-resolution time-stamping of waveforms
• PicoScope, PicoLog, and PicoSDK software included

Applications

• High-performance embedded systems design and debugging
• Signal processing and digital signal analysis
• Power electronics and motor drive analysis
• Mechatronics and automotive system development
• Physics research and particle accelerator experiments
• Multi-channel signal integrity and timing analysis

Included Accessories

• P2056 500MHz 10:1 passive probes (4)
• 12V power adaptor with universal input
• Localized IEC mains lead
• USB cable (1.8m)
• User's Guide
• Storage/carry case
