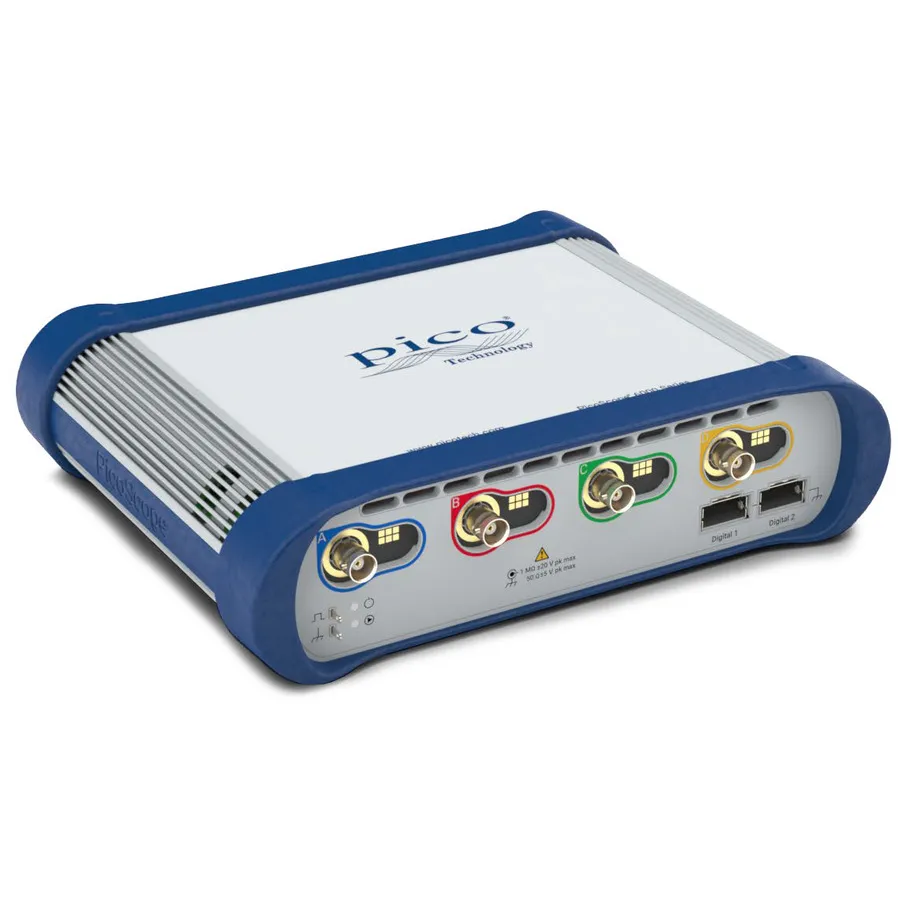

Pico Technology 6428E-D 4-Channel USB Oscilloscope
Request a quote
Pico Technology 6428E-D offers 3 GHz bandwidth with 10 GS/s sampling rate, 4 analog channels, 12-bit resolution, and extensive software tools for signal integrity analysis.
Product details
| Model | 6428E-D |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The PicoScope 6428E-D is a 4-channel PC-based USB oscilloscope from the PicoScope 6000E Series, featuring 3 GHz bandwidth and up to 10 GS/s sampling rate. Designed for engineers and researchers working with high-speed signals, it delivers 12-bit vertical resolution and advanced triggering capabilities for detailed signal analysis and measurement.
Key Features
- 3 GHz bandwidth with 4-channel analog inputs
- 10 GS/s maximum sampling rate for 100 ps time resolution
- 12-bit FlexRes ADC for flexible vertical resolution
- 4 gigasample capture memory (up to 200 ms at 10 GS/s)
- Advanced triggers: edge, window, pulse width, level dropout, interval, runt, rise/fall time, logic
- 38 serial protocol decoders and analyzers included
- High-resolution time-stamping and DeepMeasure measurement results
- PicoScope, PicoLog, and PicoSDK software included
- 50 MHz 200 MS/s 14-bit arbitrary waveform generator
Applications
- High-speed signal integrity analysis and debugging
- High-energy physics and particle acceleration research
- LIDAR and VISAR system testing
- Sub-nanosecond waveform capture and analysis
Specifications
| Bandwidth | 3 GHz |
| Analog Channels | 4 |
| Sampling Rate | 10 GS/s |
| Digital Channels | Upgrade Required |
| Memory | 4 Gpts |
| Type | MSO PC |
| Vertical Resolution | 8 bit |
| Series | PicoScope 6000E Series |
