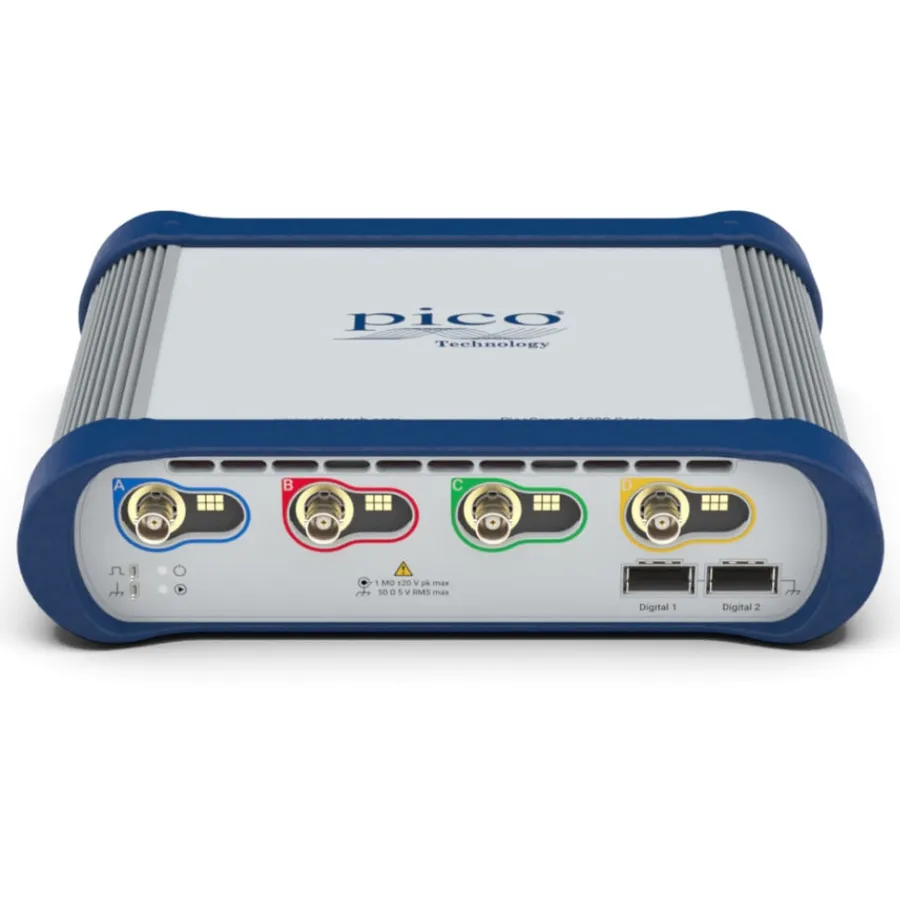

Pico Technology 6426E Digital Oscilloscope

Overview

The Pico Technology 6426E is a high-bandwidth 4-channel PC-based oscilloscope with 1 GHz bandwidth, representing the top performance in the 4-channel PicoScope 6000E series. It features 5 GS/s sampling rate, 4 GS capture memory, and 350 ps rise time at 50 ohms, enabling capture of fast transients with minimal distortion. FlexRes technology allows flexible vertical resolution from 8 to 12 bits for measurement optimization.

Designed for engineers working on cutting-edge high-speed designs—including advanced embedded systems, RF signal analysis, and high-frequency power electronics—the 6426E delivers laboratory-grade performance in a USB-connected instrument. Comprehensive software includes 21 serial protocol decoders, advanced triggering, FFT analysis, and segmented memory capture.

Key Features

• 4 analog channels with BNC x10 probe-compatible inputs
• 1 GHz bandwidth for ultra-high-speed signal capture
• 350 ps rise time at 50 ohms impedance
• 5 GS/s real-time sampling with 200 ps resolution
• 4 GS capture memory enabling 200 ms waveform capture at full speed
• 8-12 bit FlexRes vertical resolution for optimized measurements
• 21 serial protocol decoders for I2C, SPI, CAN, I2S, and more
• Advanced triggers across analog and digital channels
• FFT spectrum analyzer with high frequency resolution
• Persistence modes for detecting intermittent signals
• USB 3.0 streaming at over 300 MS/s

Applications

• High-frequency RF and microwave signal analysis
• Ultra-high-speed digital circuit debugging
• Power electronics and switching converter analysis
• Telecommunications and data center signal testing
• Scientific research requiring GHz-level bandwidth

Included Accessories

• 4 x P2056 500 MHz 10:1 passive probes
• 12 V universal power adapter with IEC lead
• 1.8 m USB 3.0 cable
• Storage/carry case
• User's Guide
