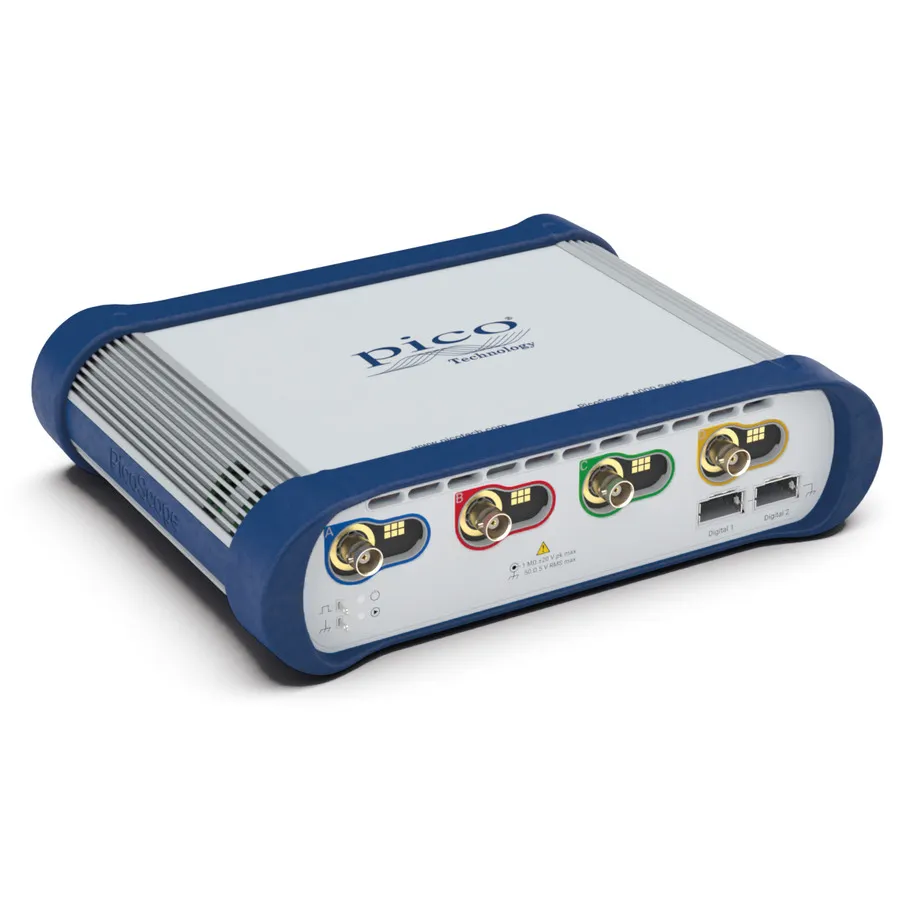

Pico Technology 6424E-D4 Digital Oscilloscope

Overview

The Pico Technology 6424E-D4 is a 4-channel PC-based oscilloscope from the PicoScope 6000E series, sold without probes. It features 500 MHz bandwidth, 5 GS/s real-time sampling, and 4 GS capture memory. The innovative FlexRes technology adjusts vertical resolution from 8 to 12 bits based on measurement requirements, enabling users to optimize between sampling rate for fast digital signals or resolution for sensitive analog applications.

This configuration suits users who already have compatible probes or prefer to source their own. The oscilloscope integrates advanced signal processing, 21 serial protocol decoders, and comprehensive PicoScope software for in-depth signal analysis and debugging.

Key Features

• 4 analog channels with BNC x10 probe-compatible inputs
• 500 MHz bandwidth with selectable 20 MHz limit
• 5 GS/s real-time sampling with 200 ps resolution
• 4 GS capture memory enabling 200 ms waveform capture at maximum speed
• 8-12 bit FlexRes vertical resolution for flexible measurement optimization
• Digital signal processing for enhanced resolution up to 16 bits
• 21 serial protocol decoders and analyzers included
• Advanced trigger options: edge, window, pulse width, dropout, and logic
• FFT spectrum analyzer and persistence modes
• USB 3.0 with streaming capability at over 300 MS/s

Applications

• High-speed embedded system design and signal integrity testing
• Power electronics and automotive diagnostics
• Signal processing and communications development
• Research and scientific signal analysis
• Multi-channel signal correlation and debugging

Included Accessories

• 12 V universal power adapter with IEC lead
• 1.8 m USB 3.0 cable
• Storage/carry case
• User's Guide
