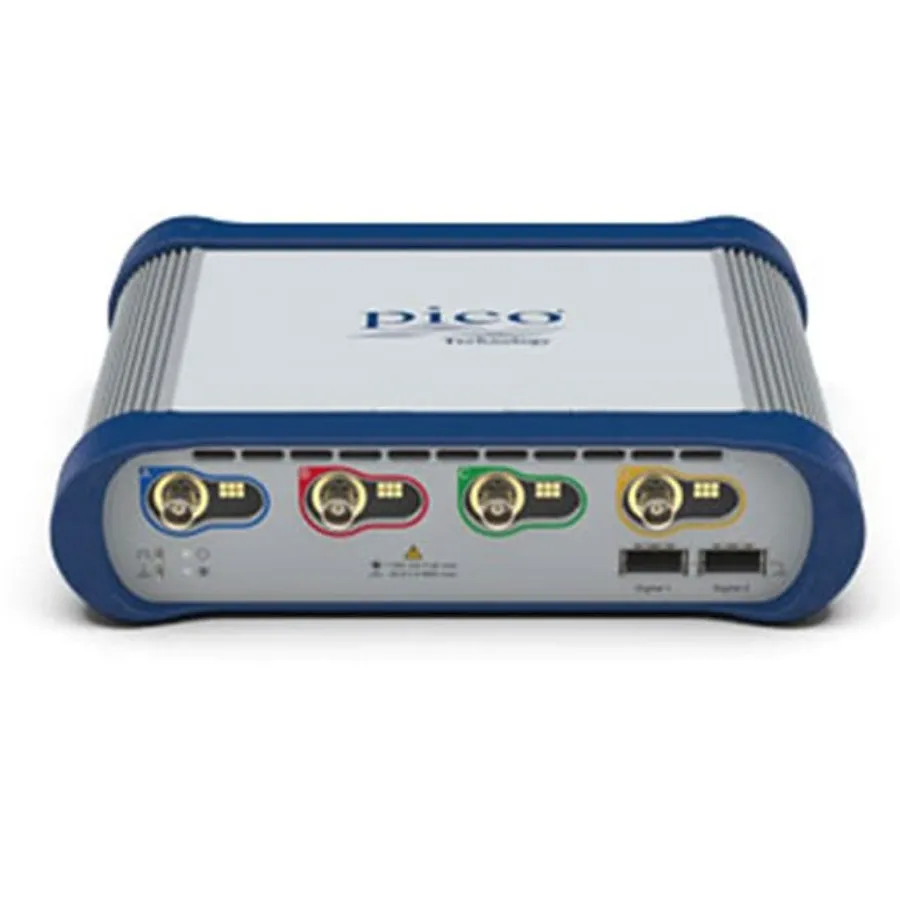

Pico Technology 6424E Digital Oscilloscope

Overview

The Pico Technology 6424E is a 4-channel PC-based oscilloscope from the PicoScope 6000E series. With 500 MHz bandwidth and 5 GS/s sampling rate, it delivers 200 ps time resolution and supports 4 GS of capture memory. The FlexRes technology provides flexible vertical resolution from 8 to 12 bits, allowing optimization for either maximum sampling speed or measurement precision.

Designed for engineers working with embedded systems, signal processing, and power electronics, the 6424E combines deep memory and high-performance sampling with comprehensive software analysis tools. USB 3.0 connectivity enables fast waveform transfer and continuous streaming at over 300 MS/s.

Key Features

• 4 analog channels with BNC x10 probe-compatible inputs
• 500 MHz bandwidth with selectable 20 MHz limit
• 5 GS/s real-time sampling with 200 ps resolution
• 4 GS capture memory enabling 200 ms waveform capture
• 8-12 bit FlexRes vertical resolution for adaptive measurements
• 21 serial protocol decoders for I2C, SPI, CAN, and more
• Advanced triggers including edge, window, pulse width, and dropout
• FFT spectrum analyzer for frequency domain analysis
• Mask limit testing and user-definable alarms
• PicoScope 6 software, PicoLog, and PicoSDK included

Applications

• High-speed embedded system design and debugging
• Signal integrity analysis and power quality testing
• Automotive electronics development
• Signal processing research
• Physics experiments and particle accelerator monitoring

Included Accessories

• 4 x P2056 500 MHz 10:1 passive probes
• 12 V universal power adapter with IEC lead
• 1.8 m USB 3.0 cable
• Storage/carry case
• User's Guide
