Pico Technology 6406E PC USB Oscilloscope

Overview

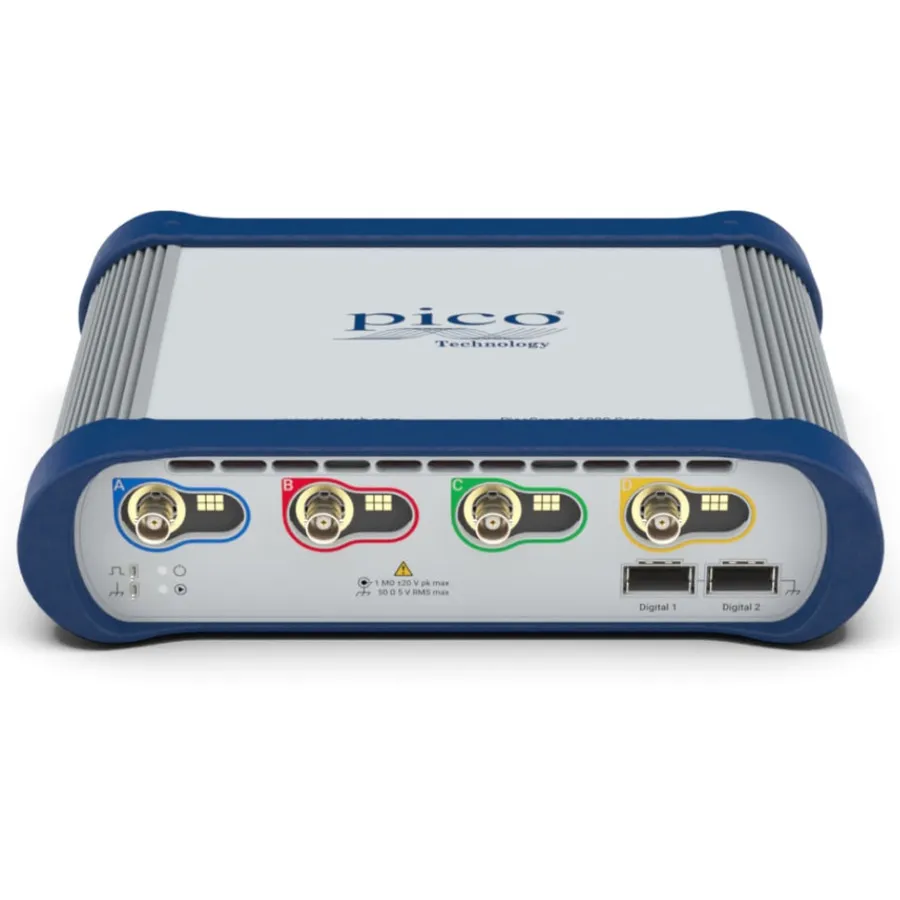

The Pico Technology 6406E is a PC-based USB oscilloscope with 1 GHz bandwidth and 8-bit vertical resolution. Part of the PicoScope 6000E Series, it provides high-performance signal capture with 4 analog channels and up to 5 GS/s sampling rate. Ideal for design engineers working with embedded systems, signal processing, power electronics, and researchers requiring multi-channel high-performance analysis.

Key Features

• 1 GHz bandwidth (–3 dB)
• 4 analog channels with BNC(f) connectors
• 8-bit vertical resolution
• 5 GS/s sampling rate with 2 GS memory
• Rise time < 350 ps (50Ω) / < 850 ps (Megohm)
• Selectable bandwidth limit: 20 MHz, 200 MHz
• 200 ms capture time at 5 GS/s
• Advanced triggers: edge, window, pulse width, level dropout, runt, logic
• 21 serial protocol decoder/analyzers included
• Mask limit testing and user-definable alarms
• 300,000 waveforms per second update rate

Applications

• High-performance embedded system design
• Signal processing and power electronics
• Mechatronics and automotive design
• Physics research and particle accelerator experiments
• Multi-channel signal integrity analysis

Included Accessories

• P2056 500 MHz 10:1 passive probes (4)
• 12 V power adaptor with universal input
• Localized IEC mains lead
• USB cable (1.8 m)
• Storage/carry case
• User's Guide
