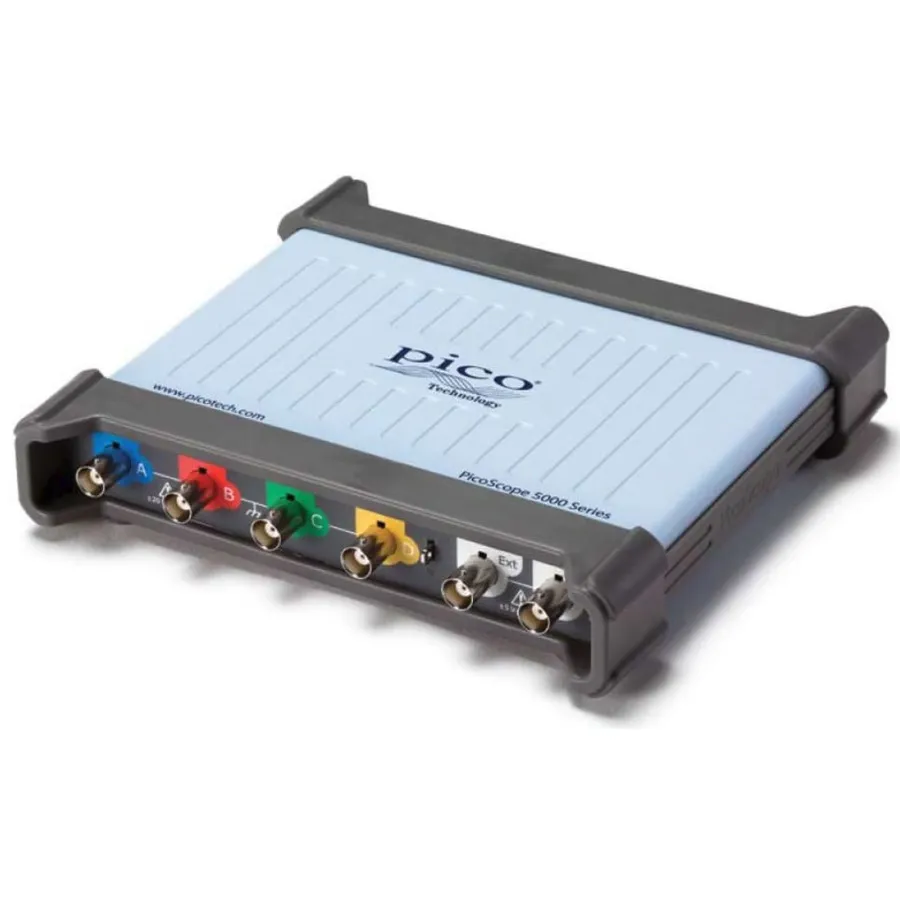

Pico Technology 5444D PC USB Oscilloscope

Overview

The Pico Technology 5444D is a 4-channel PC USB oscilloscope from the PicoScope 5000D Series. It provides 8 to 16 bits of flexible hardware resolution with 200 MHz bandwidth and 1 GS/s sampling speed, doubling the bandwidth of the 5443D model. The oscilloscope supports advanced features including mask limit testing, serial decoding of 20 protocols, automatic measurements, and a built-in arbitrary waveform generator.

Key Features

• 4 analog channels with BNC connectors
• 200 MHz bandwidth (–3 dB), 1.75 ns rise time
• FlexRes flexible 8 to 16-bit hardware resolution
• 1 GS/s sampling at 8-bit, 500 MS/s at 12-bit, 62.5 MS/s at 16-bit
• Up to 512 MS capture memory
• 130,000 waveforms per second capture rate
• Built-in arbitrary waveform generator
• Serial decoding for 20 protocols as standard
• DC to 200 MHz spectrum analyzer
• PicoScope, PicoLog, and PicoSDK software included
• Silent, fanless design with USB 3.0 connection

Applications

• High-frequency signal analysis and debugging
• Digital and mixed-signal circuit design
• Research and development
• Educational testing and training
• Equipment service and repair

Included Accessories

• TA155 Pico blue USB 3 cable (1.8 m)
• 4 x TA386 200 MHz probes
• PS011 5 V 3.0 A power supply
• Quick start guide
