Pico Technology 5443D MSO PC USB Oscilloscope

Overview

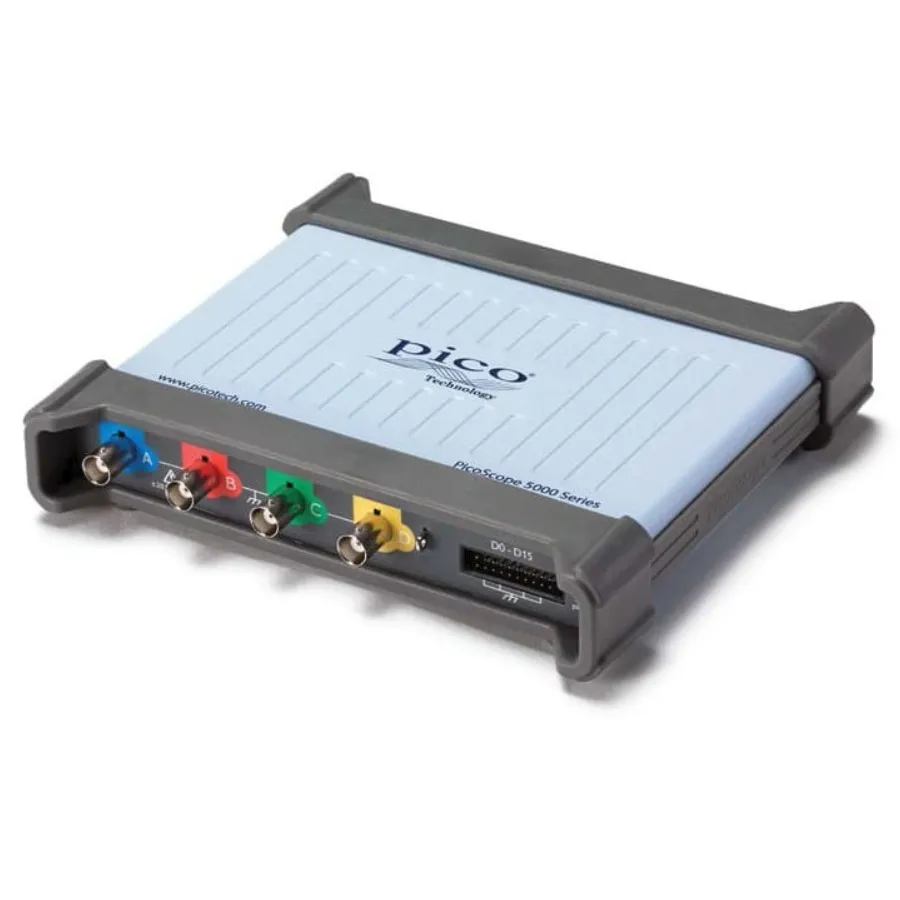

The Pico Technology 5443D MSO is a mixed-signal PC USB oscilloscope from the PicoScope 5000D Series. It combines 4 analog channels with 16 digital channels, providing 8 to 16 bits of flexible hardware resolution with 100 MHz bandwidth and 1 GS/s sampling speed. Advanced features include mask limit testing, serial decoding of 20 protocols, automatic measurements, and a built-in arbitrary waveform generator.

Key Features

• 4 analog channels and 16 digital channels (MSO configuration)
• Single-ended BNC connectors for analog inputs
• 100 MHz bandwidth (–3 dB), 3.5 ns rise time
• FlexRes flexible 8 to 16-bit hardware resolution
• 1 GS/s sampling at 8-bit, 500 MS/s at 12-bit, 62.5 MS/s at 16-bit
• Up to 512 MS capture memory
• 130,000 waveforms per second capture rate
• Built-in arbitrary waveform generator
• Serial decoding for 20 protocols as standard
• DC to 100 MHz spectrum analyzer
• PicoScope, PicoLog, and PicoSDK software included
• Silent, fanless design with USB 3.0 connection

Applications

• Mixed-signal circuit design and debugging
• Digital signal analysis alongside analog measurements
• Research and development projects
• Educational testing and training
• Equipment service and repair

Included Accessories

• TA155 Pico blue USB 3 cable (1.8 m)
• 4 x TA375 100 MHz probes
• PS011 5 V 3.0 A power supply
• TA136 MSO cable
• 2 x TA139 set of MSO clips
• Quick start guide
