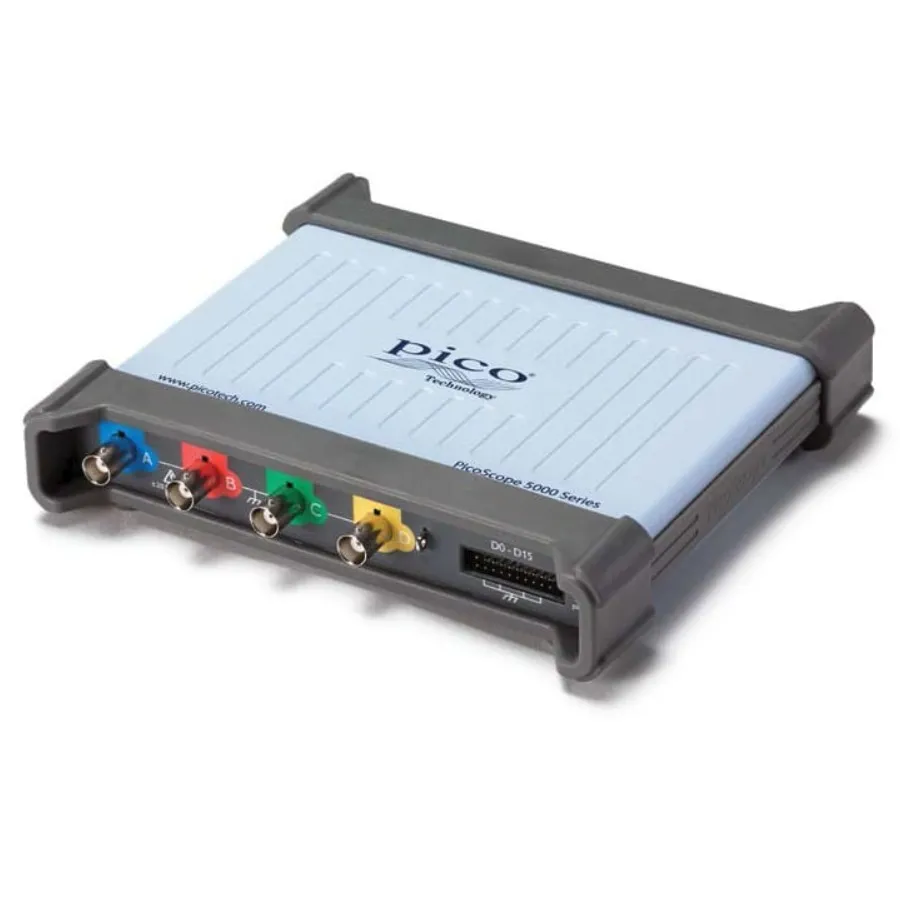

Pico Technology 5442D MSO Mixed-Signal USB Oscilloscope

Overview

The Pico Technology 5442D MSO is a mixed-signal USB PC oscilloscope from the PicoScope 5000D Series, combining 4 analog and 16 digital channels. It offers flexible 8 to 16-bit vertical resolution, up to 60MHz bandwidth, and 1GS/s sampling speed with up to 512MS capture memory. The oscilloscope provides advanced features such as mask limit testing, serial decoding, advanced triggering, and automatic measurements.

Key Features

• 4 analog channels with BNC(f) connectors
• 16 digital channels (on MSO models)
• 60MHz bandwidth (–3 dB) with 5.8 ns rise time
• FlexRes flexible 8 to 16-bit hardware resolution
• Sampling: 1 GS/s at 8-bit, 500 MS/s at 12-bit, 62.5 MS/s at 16-bit resolution
• Up to 512MS capture memory
• 130,000 waveforms per second capture rate
• Built-in arbitrary waveform generator
• Serial decoding for 20 protocols as standard
• DC to 60MHz spectrum analyzer
• USB 3.0 connection for continuous high-speed data streaming
• Silent, fanless design
• Free PicoScope 6 software with regular updates

Applications

• Design and prototyping
• Research and development
• Testing and troubleshooting
• Education and training
• Service and repair

Included Accessories

• 1 x TA155 Pico blue USB 3 cable (1.8 m)
• 4 x TA375 probes (for 60MHz models)
• 1 x PS011 5V 3.0A power supply
• 1 x TA136 MSO cable
• 2 x TA139 set of MSO clips
• PicoScope, PicoLog, and PicoSDK software
• Quick start guide
