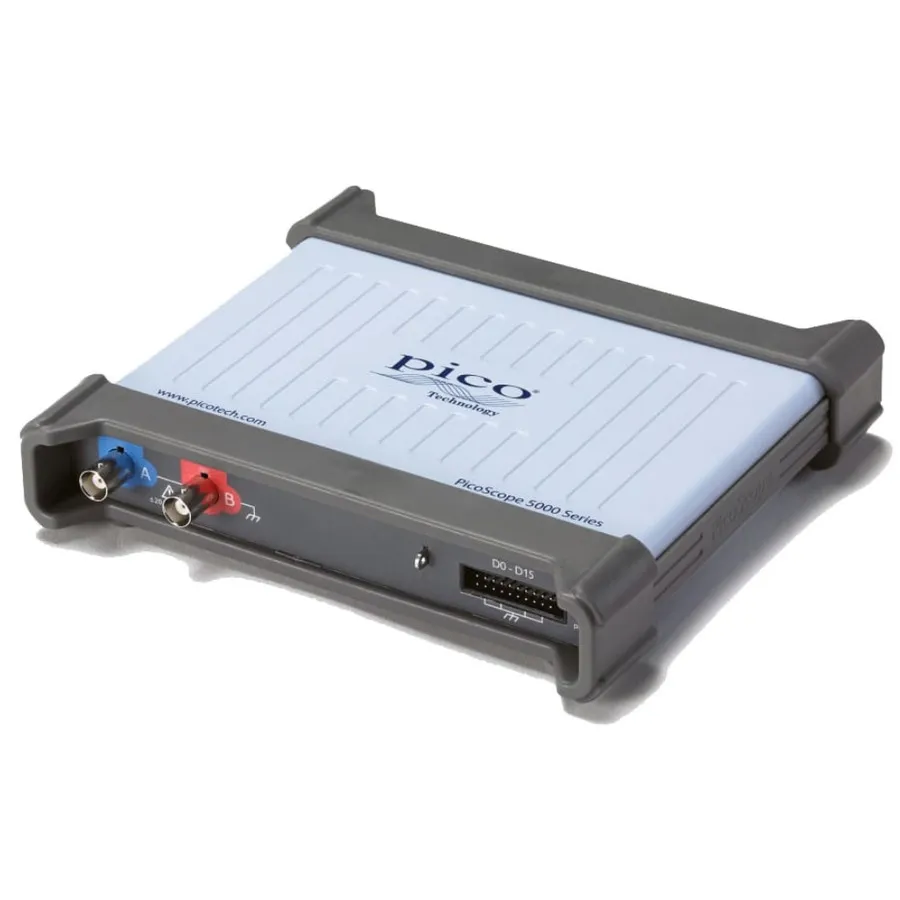

Pico Technology 5244D MSO USB Oscilloscope

Overview

The Pico Technology 5244D MSO is a mixed-signal 2-channel analog and 16-channel digital PC USB oscilloscope with 200 MHz bandwidth from the PicoScope 5000D Series. It offers flexible 8-16 bit resolution (FlexRes), 1 GS/s sampling speed, and USB 3.0 connectivity. The dual analog/digital capability with high bandwidth makes it ideal for RF design and complex embedded systems.

Key Features

• 2 analog channels + 16 digital channels (MSO configuration)
• 200 MHz bandwidth (–3 dB) on analog channels
• Rise time 1.75 ns for accurate high-speed edge capture
• FlexRes flexible resolution: 8-bit at 1 GS/s, 12-bit at 500 MS/s, 16-bit at 62.5 MS/s
• Up to 512 MS capture memory with 130,000 waveforms per second
• Built-in arbitrary waveform generator
• Serial decoding for 20 protocols (I2C, SPI, RS-232, and more)
• DC–200 MHz spectrum analyzer
• Advanced triggering, mask limit testing, and automatic measurements
• PicoScope 6, PicoLog, and PicoSDK software included

Applications

• RF circuit design and validation
• Mixed-signal high-frequency testing
• Digital protocol analysis at high bandwidth
• Embedded systems development
• Service and repair of RF equipment

Included Accessories

• PicoScope 5000D MSO USB 3 oscilloscope
• TA155 Pico blue USB 3 cable (1.8 m)
• 2 x TA386 probes (200 MHz)
• 1 x TA136 MSO cable
• 2 x TA139 MSO clip sets
• Quick start guide
