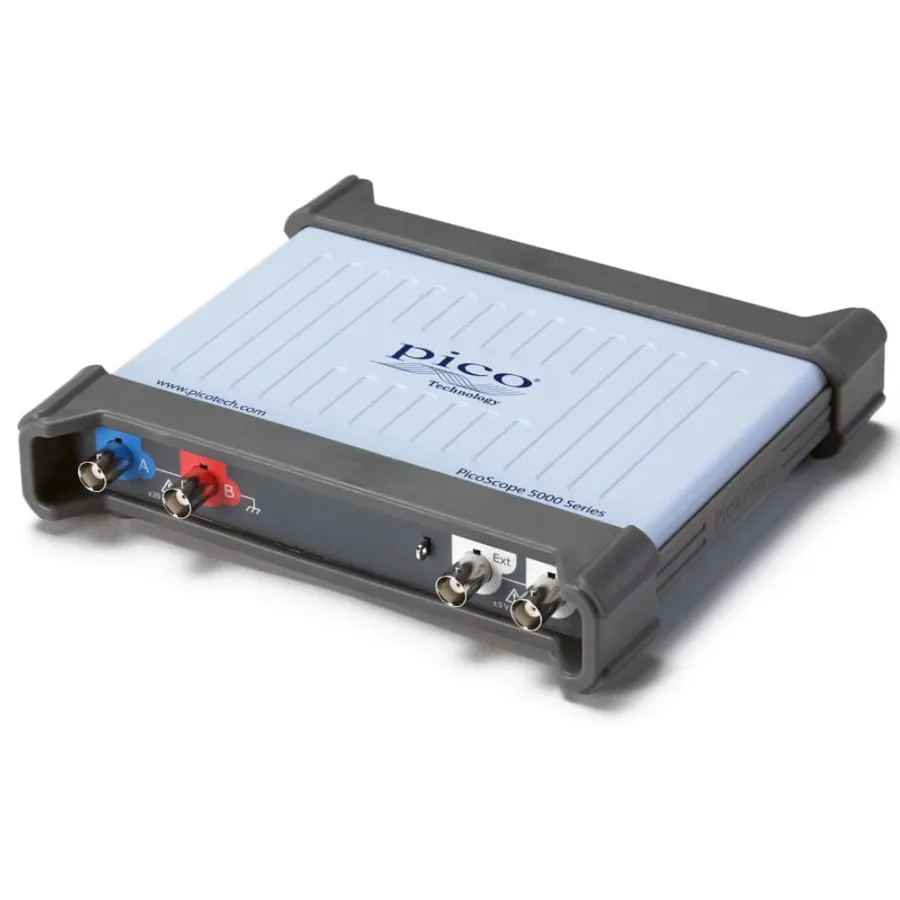

Pico Technology 5244D USB Oscilloscope
Request a quote
Pico Technology 5244D USB oscilloscope delivers 2 channels, 200 MHz bandwidth, FlexRes 8–16 bit resolution, and 1 GS/s sampling with comprehensive PicoScope software.
Product details
| Model | 5244D |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Pico Technology 5244D is a 2-channel PC USB oscilloscope from the PicoScope 5000D Series with double the bandwidth of the 5243D model. It delivers 200 MHz bandwidth, flexible 8-16 bit resolution (FlexRes), and 1 GS/s sampling speed. The device connects via USB 3.0 and includes comprehensive software for advanced test and analysis.
Key Features
- 2 analog channels with 200 MHz bandwidth (–3 dB)
- Rise time 1.75 ns for accurate fast-edge capture
- FlexRes flexible resolution: 8-bit at 1 GS/s, 12-bit at 500 MS/s, 16-bit at 62.5 MS/s
- Up to 512 MS capture memory with 130,000 waveforms per second
- Built-in arbitrary waveform generator
- Serial decoding for 20 protocols (I2C, SPI, RS-232, and more)
- DC–200 MHz spectrum analyzer
- Advanced triggering, mask limit testing, and automatic measurements
- PicoScope 6, PicoLog, and PicoSDK software included
- Silent, fanless design with portable USB 3.0 operation
Applications
- RF and high-frequency signal analysis
- High-speed digital circuit testing
- Research and development
- Education and training
- Service and repair of complex electronics
Included Accessories
- PicoScope 5000D Series USB 3 oscilloscope
- TA155 Pico blue USB 3 cable (1.8 m)
- 2 x TA386 probes (200 MHz)
- Quick start guide
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 2 |
| Sampling Rate | 1 GS/s |
| Digital Channels | None |
| Memory | 512 Mpts |
| Type | DSO PC |
| Vertical Resolution | 16 bit |
| Series | PicoScope 5000D Series |
| Alternate Product Number | PQ145 |
