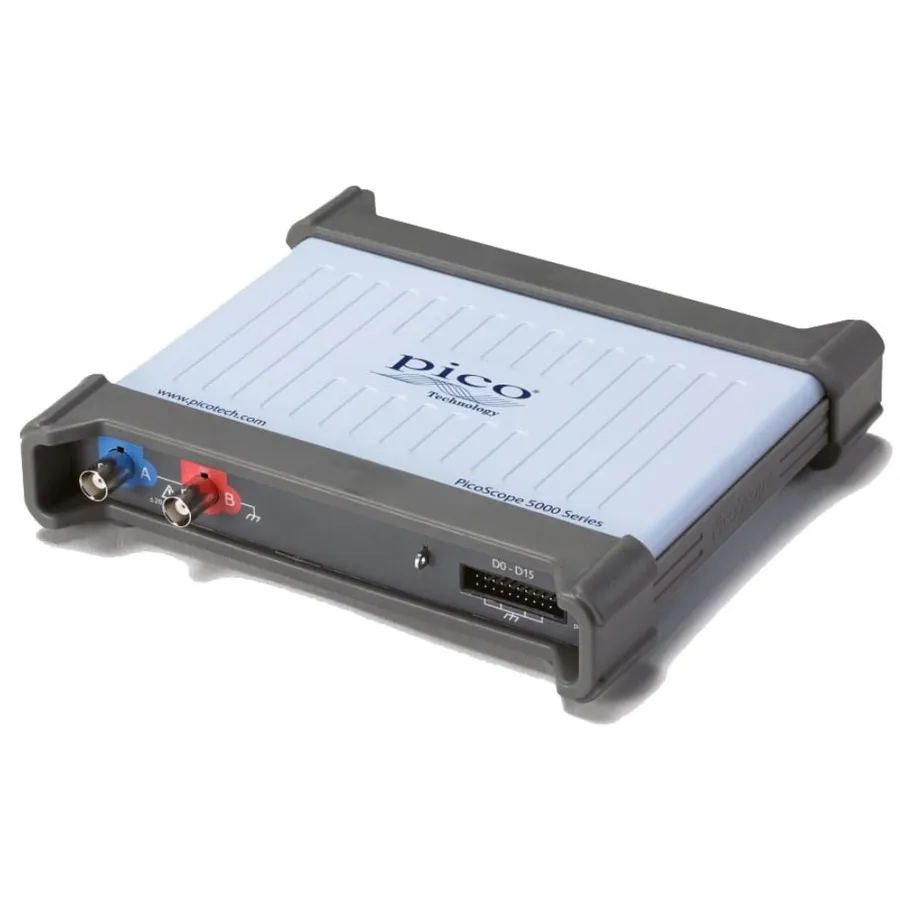

Pico Technology 5243D MSO USB Oscilloscope

Overview

The Pico Technology 5243D MSO is a mixed-signal 2-channel analog and 16-channel digital PC USB oscilloscope from the PicoScope 5000D Series. It delivers 100 MHz bandwidth, flexible 8-16 bit resolution (FlexRes), and 1 GS/s sampling speed. The dual analog/digital capability makes it ideal for embedded systems and protocol debugging via USB 3.0.

Key Features

• 2 analog channels + 16 digital channels (MSO configuration)
• 100 MHz bandwidth (–3 dB) on analog channels
• FlexRes flexible resolution: 8-bit at 1 GS/s, 12-bit at 500 MS/s, 16-bit at 62.5 MS/s
• Up to 512 MS capture memory with 130,000 waveforms per second
• Built-in arbitrary waveform generator
• Serial decoding for 20 protocols (I2C, SPI, RS-232, and more)
• DC–100 MHz spectrum analyzer
• Advanced triggering, mask limit testing, and automatic measurements
• PicoScope 6, PicoLog, and PicoSDK software included
• Silent, fanless design

Applications

• Embedded systems development and debugging
• Digital protocol analysis and validation
• Mixed-signal circuit testing
• Education and research
• Service and repair of complex electronics

Included Accessories

• PicoScope 5000D MSO USB 3 oscilloscope
• TA155 Pico blue USB 3 cable (1.8 m)
• 2 x TA375 probes (100 MHz)
• 1 x TA136 MSO cable
• 2 x TA139 MSO clip sets
• Quick start guide
