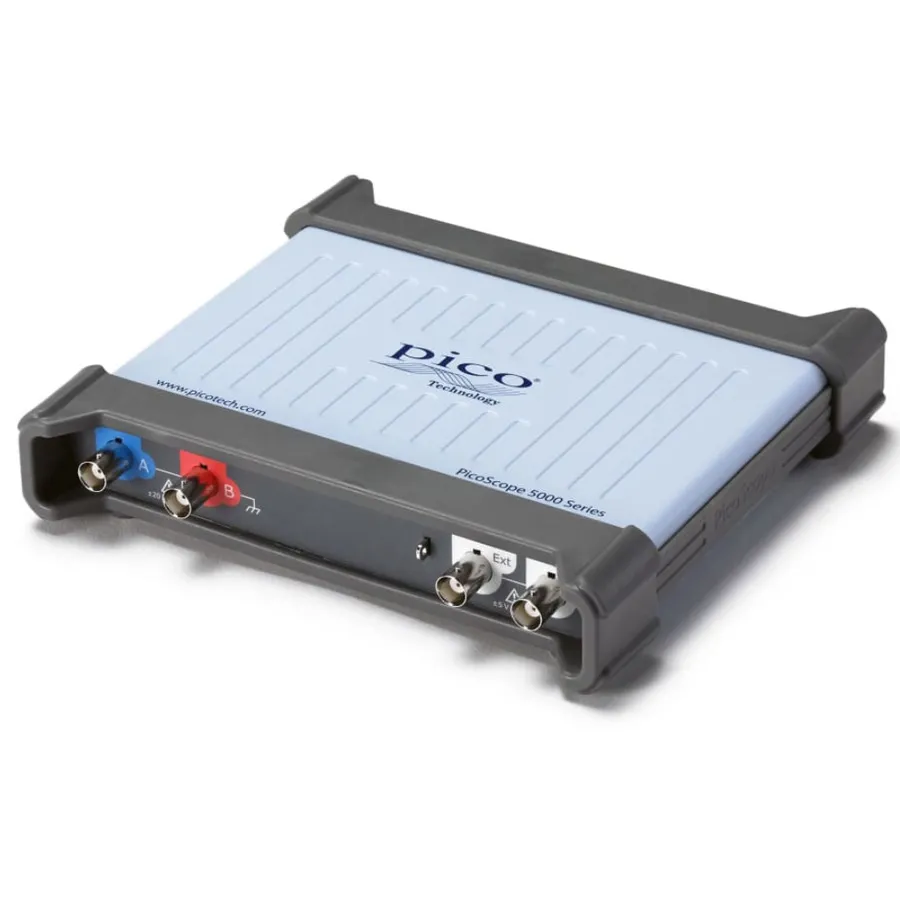

Pico Technology 5243D USB Oscilloscope
Request a quote
Pico Technology 5243D USB oscilloscope features 2 channels, 100 MHz bandwidth, FlexRes 8–16 bit resolution, and 1 GS/s sampling rate via USB 3.0.
Product details
| Model | 5243D |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Pico Technology 5243D is a 2-channel PC USB oscilloscope from the PicoScope 5000D Series. It delivers 100 MHz bandwidth, flexible 8-16 bit resolution (FlexRes), and 1 GS/s sampling speed. The device connects via USB 3.0 for continuous high-speed data streaming and includes comprehensive software support.
Key Features
- 2 analog channels with 100 MHz bandwidth (–3 dB)
- FlexRes flexible resolution: 8-bit at 1 GS/s, 12-bit at 500 MS/s, 16-bit at 62.5 MS/s
- Up to 512 MS capture memory with 130,000 waveforms per second
- Built-in arbitrary waveform generator
- Serial decoding for 20 protocols (I2C, SPI, RS-232, and more)
- DC–100 MHz spectrum analyzer
- Advanced triggering, mask limit testing, and automatic measurements
- PicoScope 6, PicoLog, and PicoSDK software included
- Silent, fanless design
- USB 3.0 connection for portable, PC-based operation
Applications
- Electronic design and development
- Research and education
- Service and repair of electronics
- Embedded systems testing
- Protocol analysis and debugging
Included Accessories
- PicoScope 5000D Series USB 3 oscilloscope
- TA155 Pico blue USB 3 cable (1.8 m)
- 2 x TA375 probes (100 MHz)
- Quick start guide
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Sampling Rate | 1 GS/s |
| Digital Channels | None |
| Memory | 256 Mpts |
| Type | DSO PC |
| Vertical Resolution | 16 bit |
| Series | PicoScope 5000D Series |
| Alternate Product Number | PQ144 |
