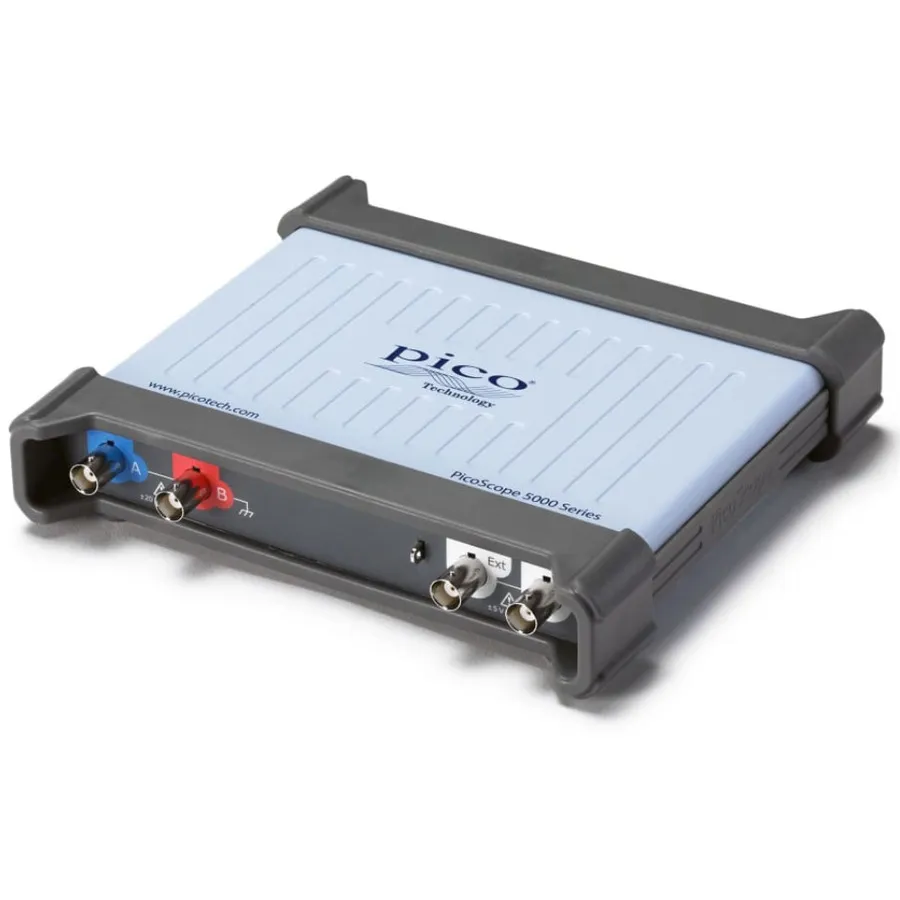

Pico Technology 5242D PC USB Oscilloscope
Request a quote
Pico Technology 5242D is a 2-channel 60MHz PC USB oscilloscope with FlexRes resolution (8-16 bit) and 1 GS/s sampling, ideal for design, test, and education.
Product details
| Model | 5242D |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Pico Technology 5242D is a 2-channel PC-based USB oscilloscope offering 60 MHz bandwidth with FlexRes flexible resolution (8 to 16-bit) and up to 1 GS/s sampling speed. It provides deep capture memory, advanced triggering, and serial protocol decoding in a compact, fanless design ideal for design, research, test, education, and field service applications.
Key Features
- FlexRes flexible 8 to 16-bit hardware resolution for optimized measurements
- 60 MHz bandwidth with 5.8 ns rise time
- 1 GS/s sampling at 8-bit resolution, 500 MS/s at 12-bit, 62.5 MS/s at 16-bit
- Up to 512 MS capture memory for extended recording
- 130,000 waveforms per second capture rate
- Serial protocol decoding (20 protocols)
- DC to 60 MHz spectrum analyzer
- Built-in arbitrary waveform generator
- Advanced triggering, mask limit testing, XY mode, and segmented memory
- DeepMeasure award-winning measurement feature
- USB 3.0 connection for continuous high-speed streaming
Applications
- Circuit design and prototyping
- Research and development
- Electronic testing and verification
- Educational training and demonstrations
- Field service and equipment repair
Included Accessories
- TA155 USB 3.0 cable (1.8 m)
- 2x TA375 measurement probes
- Quick start guide
Specifications
| Bandwidth | 60 MHz |
| Analog Channels | 2 |
| Sampling Rate | 1 GS/s |
| Digital Channels | None |
| Memory | 128 Mpts |
| Type | DSO PC |
| Vertical Resolution | 16 bit |
| Series | PicoScope 5000D Series |
| Alternate Product Number | PQ143 |
