Pico Technology 4444 1000 V Differential Oscilloscope
Request a quote
Pico Technology 4444 is a 4-channel differential oscilloscope with 20 MHz bandwidth, 1000V CAT III rating, and low 9.5 pF input capacitance for accurate signal measurement.
Product details
| Model | 4444 1000 V |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The PicoScope 4444 is a 4-channel differential oscilloscope designed for accurate and detailed measurements across a multitude of applications. With remarkably low input capacitance of just 9.5 pF, it applies minimal load to the signal source, which is particularly important when measuring signals with fast risetimes.
Key Features
- 4 fully differential high-impedance inputs
- 20 MHz bandwidth
- Flexible 12 and 14-bit resolution
- 256 MS deep memory
- Low input capacitance of 9.5 pF
- Common-mode noise rejection
- 10,000 waveform circular buffer
- Up to 100,000 waveforms per second update rate
- Serial bus decoding and mask limit testing
- Advanced math, filtering, and digital triggering
- USB 3.0 connected and powered

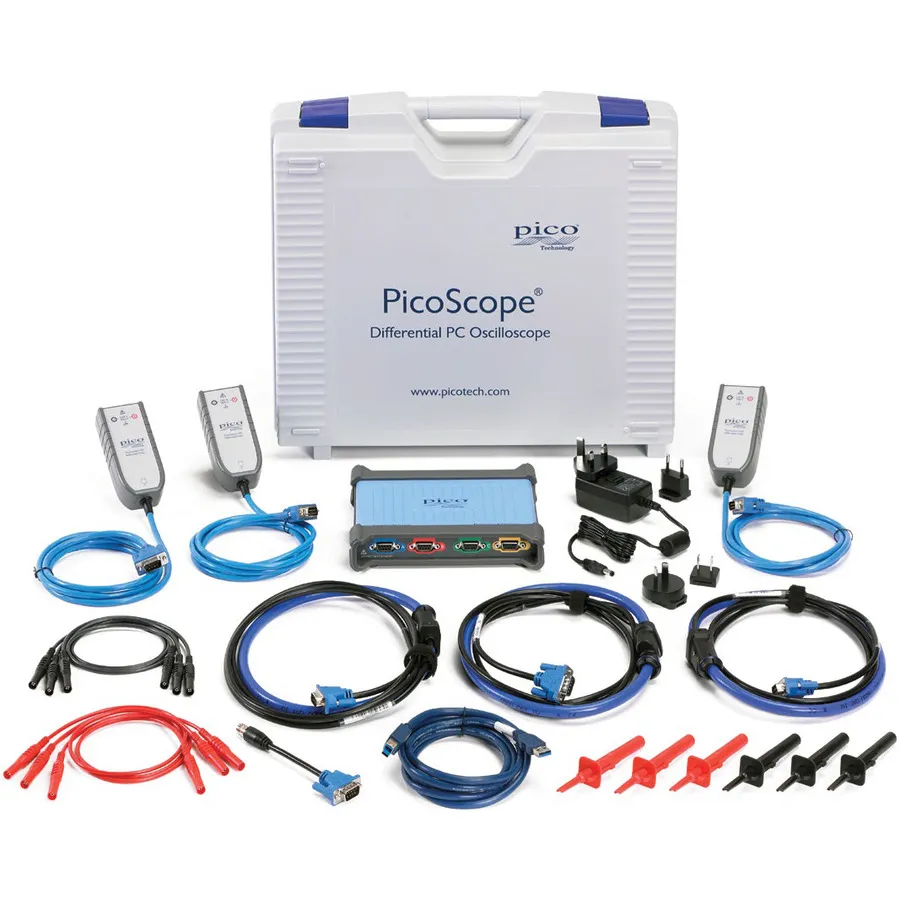

Kit Contents
- PicoScope 4444 differential oscilloscope
- 3× PicoConnect 442 1000 V CAT III passive differential voltage probes
- 3× TA368 2000 A AC flex current probes (1000 V CAT III / 600 V CAT IV rated)
- 1× TA271 single-ended D9-BNC adaptor
Applications
- Bench testing and measurements
- On-site diagnostics and troubleshooting
- Portable field measurements
- Mains voltage and current measurement
Specifications
| Bandwidth | 20 MHz |
| Analog Channels | 4 |
| Sampling Rate | 400 MS/s |
| Digital Channels | None |
| Memory | 256 Mpts |
| Type | DSO PC |
| Vertical Resolution | 12 bit |
| Series | PicoScope 4444 Series |
| Alternate Product Number | PQ167 |
