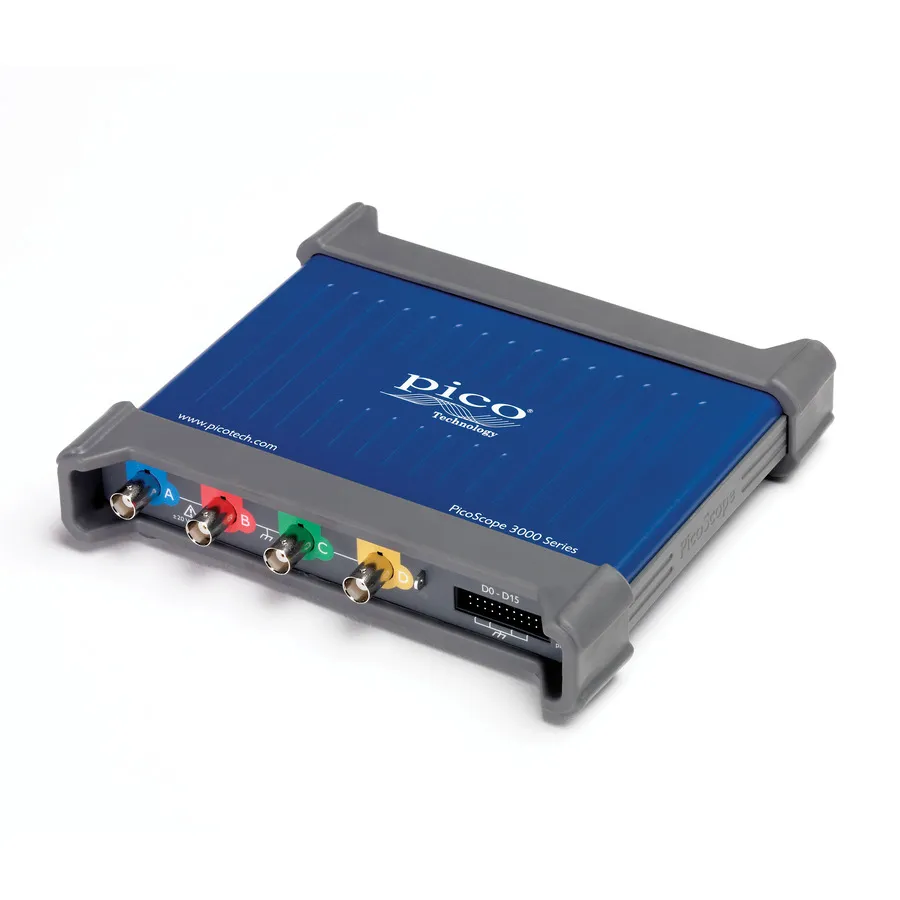

Pico Technology 3405D MSO USB Oscilloscope
Request a quote
Pico Technology 3405D MSO is a 4-channel analog and 16-channel digital USB oscilloscope with 100 MHz bandwidth, 256 MS buffer, arbitrary waveform generator, and portable PC-based design.
Product details
| Model | 3405D MSO |
| Manufacturer | Pico Technology |
| Category | PC Based Oscilloscopes |
| Availability | Made to order |
Description
Overview
The PicoScope 3405D MSO is a small, portable, USB-powered PC oscilloscope combining 4 analog channels with 16 digital logic analyzer channels. Designed for embedded systems, electronics design, research, and educational applications, it delivers professional-grade performance in a compact form factor that fits easily in a laptop bag.
Key Features
- 4 analog channels with 100 MHz bandwidth
- 16 digital logic analyzer channels (MSO capability)
- 256 MS buffer memory
- 100,000 waveforms per second update rate
- Arbitrary waveform and function generator
- USB 3.0 connection for high-speed data transfer and power
- Serial protocol decoding and mask testing
- PicoScope 6 software for Windows, Linux, and macOS
Applications
- Embedded systems design and debugging
- Electronics research and development
- Test and measurement
- Educational training applications
- Equipment service and repair
Included Accessories
- USB 3.0 cable (1.8 m)
- 4 x TA375 100 MHz oscilloscope probes
- TA136 20-way digital input cable for logic analyzer
- 2 x TA139 pack (12 logic test clips per pack)
- Quick start guide
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Sampling Rate | 1 GS/s |
| Digital Channels | 16 |
| Memory | 256 Mpts |
| Type | MSO PC |
| Vertical Resolution | 8 bit |
| Series | PicoScope 3000 Series |
| Alternate Product Number | PP935 |
