Teledyne LeCroy DCS025 Deskew Calibration Fixture
Request a quote

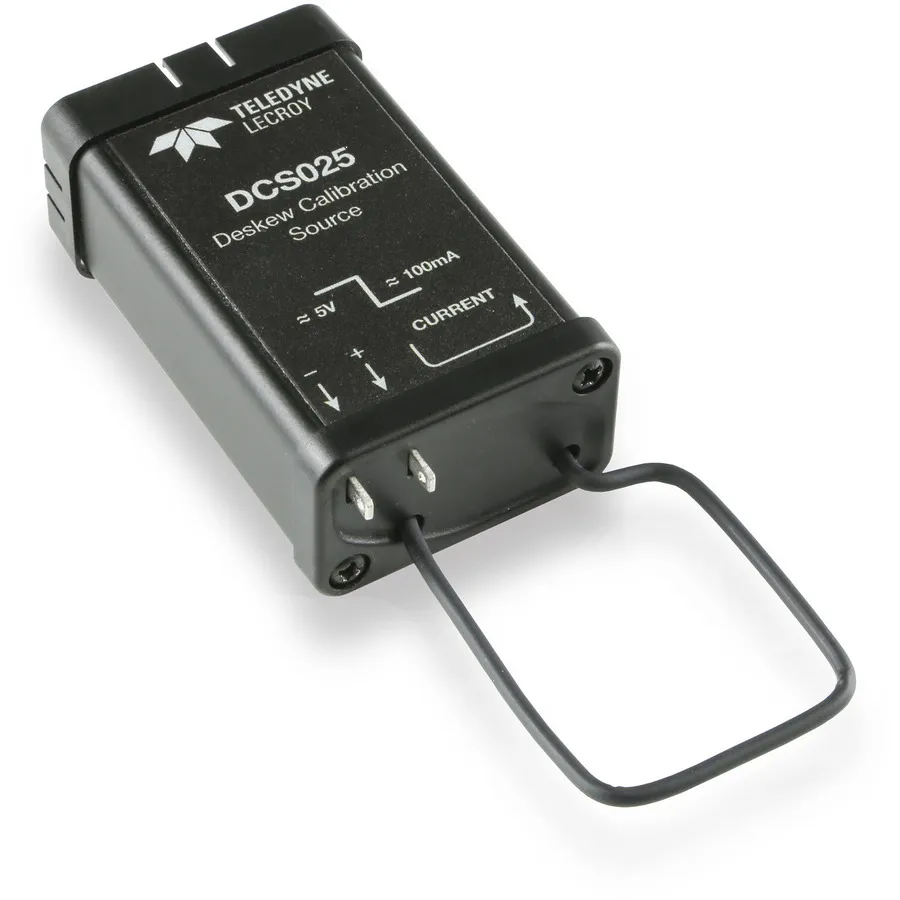

Teledyne LeCroy DCS025 generates time-aligned 5V/100mA calibration pulses with 10 ns fall time and 1 ns static skew for precise deskewing of voltage and current probes.
Product details
| Model | DCS025 |
| Manufacturer | Teledyne LeCroy |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy DCS025 is a deskew calibration source designed for precise time-alignment of voltage and current probes. This tool is essential for measurements requiring synchronous probe response, particularly for power semiconductor device loss calculations where small propagation delay differences between probes can significantly affect measurement accuracy.
Key Features
- 10 ns signal fall time for fast pulse edges
- Only 1 ns static skew between voltage and current outputs
- 5V and 100 mA time-aligned output signals
- Loop size compatible with 30, 150, and 500 Amp current probes
- Compatible with both standard and high-sensitivity current probes
- Generates calibration pulses for probe deskewing verification
Applications
- Power semiconductor device loss measurements
- Oscilloscope probe synchronization and deskewing
- Precision voltage and current measurement correlation
- Electronics testing and troubleshooting
Specifications
