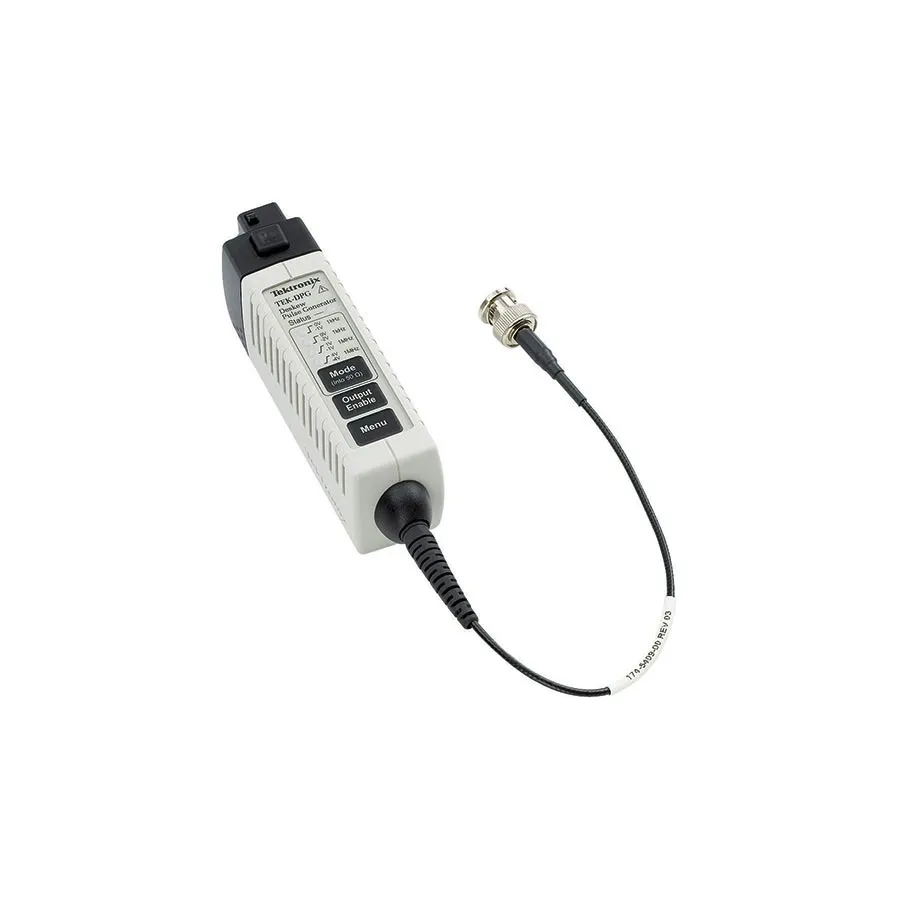

Tektronix TEK-DPG Deskew Pulse Generator
Request a quote
Tektronix TEK-DPG is a plug-on deskew pulse generator for TekVPI oscilloscopes, enabling precise timing alignment between current and voltage probes in power measurements.
Product details
| Model | TEK-DPG |
| Manufacturer | Tektronix |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Tektronix TEK-DPG Deskew Pulse Generator is a plug-on accessory for Tektronix oscilloscopes equipped with the TekVPI interface, including DPO3000 and DPO/MSO4000 series models. It generates reference signals that enable precise deskewing of current and voltage probes in power measurement applications.
Key Features
- TekVPI interface connectivity for easy plug-on installation
- Generates deskew signals for accurate timing alignment between probe channels
- LED status indicator for quick identification of generator state
- Multiple output signals compatible with various oscilloscopes and probes
- Switchable output to reduce power consumption when not in use
- Direct control through oscilloscope front panel menu display
Applications
- Power supply design and characterization
- Measurements requiring accurate timing alignment between channels
- Power measurement applications with multiple probe channels
Specifications
