Tektronix P77STFLXA Flex-Circuit Probe Tip with Active Buffer Amplifier

Overview

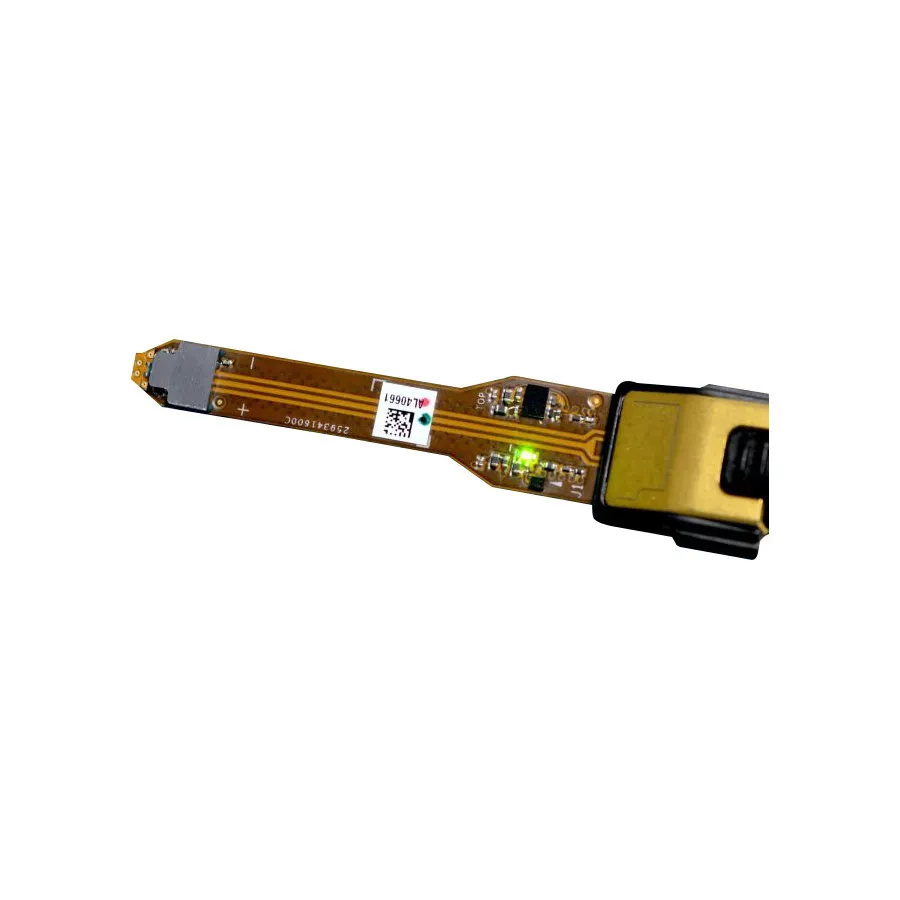

The P77STFLXA is an active flex-circuit solder-in probe tip with an integrated buffer amplifier, operating from 15 to 20 GHz. It uses TekFlex connector technology, which combines high-speed signal paths with integrated power and communication support in a single connector interface. The flex-circuit material enables soldered, multi-point connections directly to the device under test, while the close proximity of the active buffer amplifier to the measurement point ensures high-fidelity measurements with minimal signal loss.

Key Features

• Flex-circuit design with 15–20 GHz bandwidth and active buffer amplifier
• Soldered multi-point connections for DDR4/LPDDR4 memory testing
• Supports full TriMode measurement capabilities and full probe bandwidth
• TekFlex connector technology for easy attachment
• High-impedance input with minimal capacitive loading and signal loss
• Compatible with TDP7700 and P7700 Series probes (TriMode family)

Applications

• DDR4 and LPDDR4 memory interface characterization
• High-speed digital signal integrity measurements
• Board-level debugging and electrical validation
