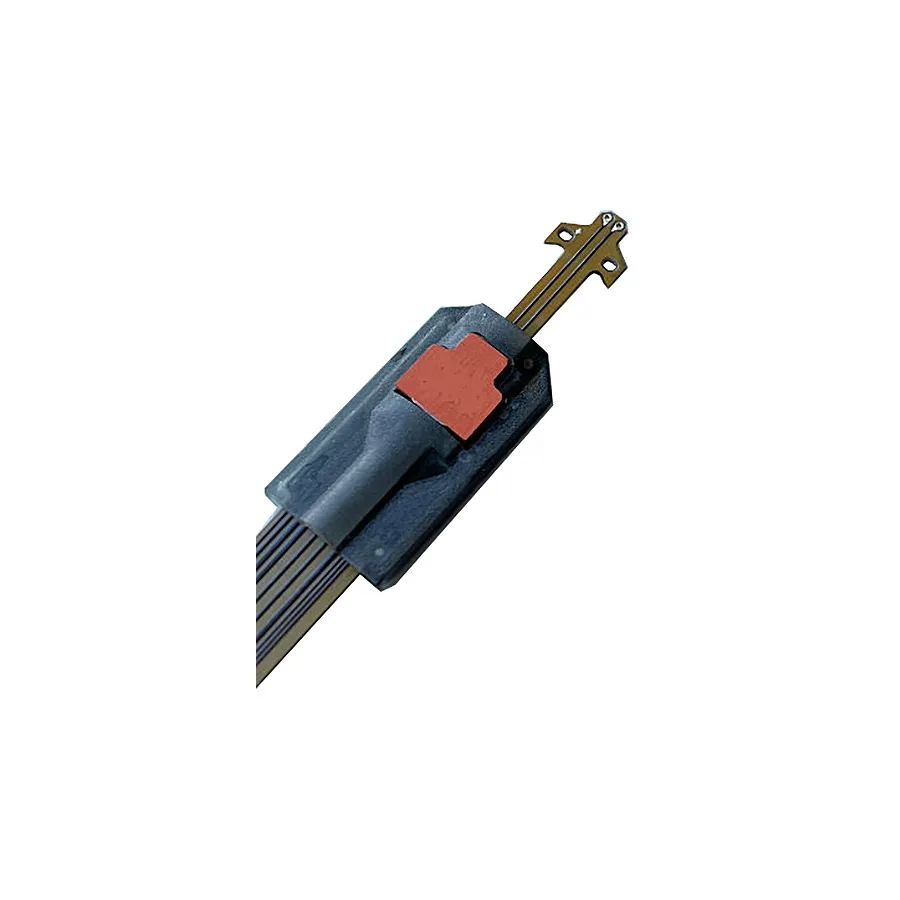

Tektronix P77STFLRB Active Flexible Long Reach Solder-In Tip with TekFlex Connector
Request a quote
Active 55 Ω solder-in probe tip with 16 GHz bandwidth, TekFlex connector, and long reach design for DDR/LPDDR memory testing.
Product details
| Model | P77STFLRB |
| Manufacturer | Tektronix |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The P77STFLRB is an active, long reach solder-in probe tip with 55 Ω impedance, optimized for DDR/LPDDR electrical validation with interposers. It features TekFlex connector technology, providing a high-speed signal path with integrated power and communication support. The short signal path from the active buffer amplifier to the measurement point ensures high-fidelity measurements with minimal signal loss.
Key Features
- 16 GHz bandwidth active solder-in tip with 55 Ω impedance
- Optimized for DDR/LPDDR electrical validation with interposers
- Long reach flexible design for accessing test points on interposer setups
- TekFlex connector technology for quick attachment
- Compatible with TDP7700 and P7700 Series probes
Applications
- DDR and LPDDR memory electrical characterization
- High-speed interposer-based testing and validation
- Signal integrity analysis on memory interfaces
Specifications
| Series | P7700 Series |
