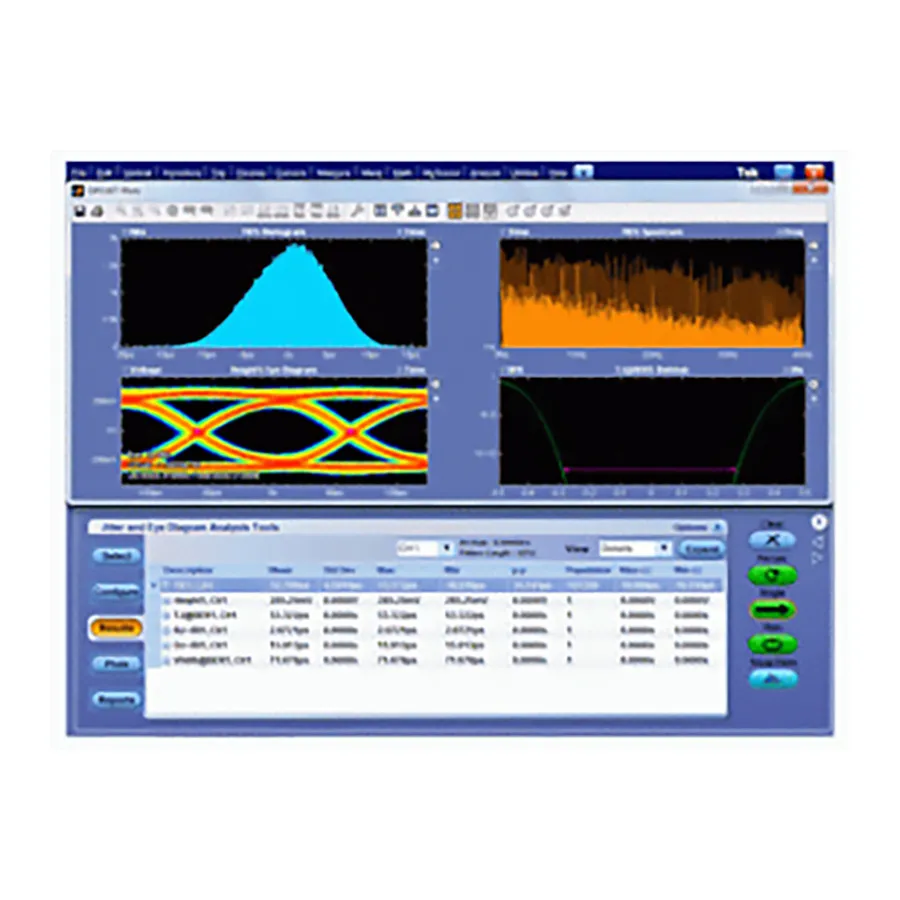

Tektronix DPO4BND Application Bundle Module

Overview

The Tektronix DPO4BND application bundle module consolidates ten specialized application modules into a single purchase, providing comprehensive serial triggering and analysis capabilities for MDO4000C, MSO4000B, and DPO4000B oscilloscopes. Each module enables packet-level triggering, decoding, and analysis for its respective bus or technology.

Included Applications

• DPO4AERO — Aerospace Serial Triggering and Analysis (MIL-STD-1553 and ARINC-429 buses)
• DPO4AUDIO — Audio Serial Triggering and Analysis (I2S, LJ, RJ, and TDM audio buses)
• DPO4AUTO — Automotive Serial Triggering and Analysis (CAN, CAN FD, and LIN buses)
• DPO4COMP — Computer Serial Triggering and Analysis (RS-232/422/485/UART buses)
• DPO4EMBD — Embedded Serial Triggering and Analysis (I2C and SPI buses)
• DPO4ENET — Ethernet Serial Triggering and Analysis (10BASE-T and 100BASE-TX buses)
• DPO4LMT — Limit and Mask Testing Application Module
• DPO4PWR — Power Analysis Application Module
• DPO4USB — USB Serial Triggering and Analysis Module (low-speed, full-speed, and high-speed USB)
• DPO4VID — HDTV and Custom Video Triggering and Video Picture Module

Key Features

• All 10 application modules in a single bundle
• Packet-level triggering on supported buses
• Digital and bus views of signal data
• Packet decoding with time-stamp information
• Search tools for efficient analysis
• Packet decode tables for detailed inspection
• Easily transferable between instruments
