Siglent SDS7000A-CT-DP MIPI-DPHY Compliance Test Software
Request a quote
MIPI-DPHY compliance test software for SDS7000A oscilloscopes with CTS 1.0 specification support and integrated eye diagram analysis.
Product details
| Model | SDS7000A-CT-DP |
| Manufacturer | Siglent |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Siglent SDS7000A-CT-DP is optional MIPI-DPHY (Display Physical Layer) compliance test software for the SDS7000A Series oscilloscopes. It performs compliance analysis based on the CTS 1.0 specification, supporting HS-TX and LP-TX signal testing with integrated eye diagram functionality for signal integrity evaluation.
Key Features
- MIPI-DPHY compliance testing per CTS 1.0 specification

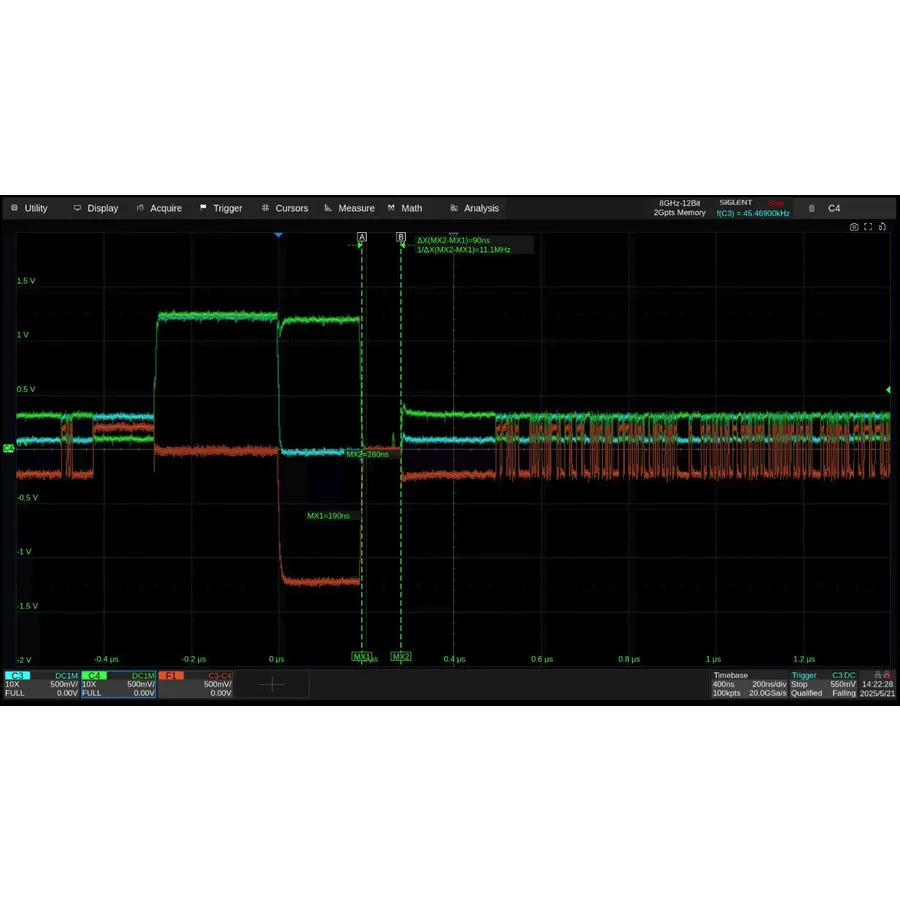

- HS-TX and LP-TX signal capture on data and clock lanes
- 12-bit ADC with ≥4 GHz bandwidth for precise measurements
- Compatible with 5 GHz active differential probes
- Integrated eye diagram functionality for signal integrity assessment
- Automated setup and compliance report generation
Applications
- Display interface compliance verification
- Mobile device signal integrity testing
- High-speed serial protocol analysis
