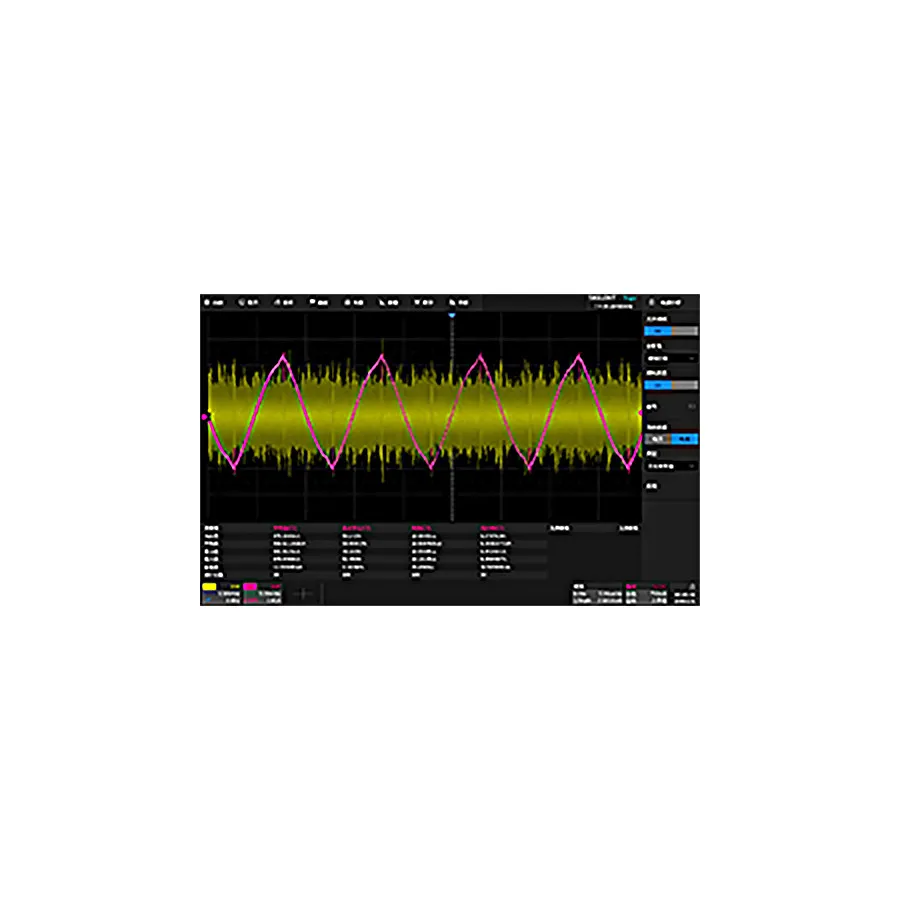

Siglent SDS6000Pro-PA Power Analysis Software
Request a quote
Siglent SDS6000Pro-PA provides comprehensive power analysis tools for switching supplies and power devices, including harmonics, efficiency, and transient measurements.
Product details
| Model | SDS6000Pro-PA |
| Manufacturer | Siglent |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The SDS6000Pro-PA power analysis option provides a comprehensive suite of power measurements and analysis tools designed to improve measurement efficiency in switching power supply and power device design. It enables detailed analysis of power quality, efficiency, and transient behavior.
Key Features
- Power Quality analysis
- Current Harmonics measurement
- Inrush Current analysis
- Switching Loss measurement
- Slew Rate analysis
- Modulation measurement
- Output Ripple analysis
- Turn On/Off transient analysis
- Transient Response measurement
- PSRR (Power Supply Rejection Ratio) analysis
- Efficiency measurement
Applications
- Switching power supply design and optimization
- Power device characterization and validation
- Power quality assessment and compliance testing
Specifications
| Series | SDS6000A Series |
