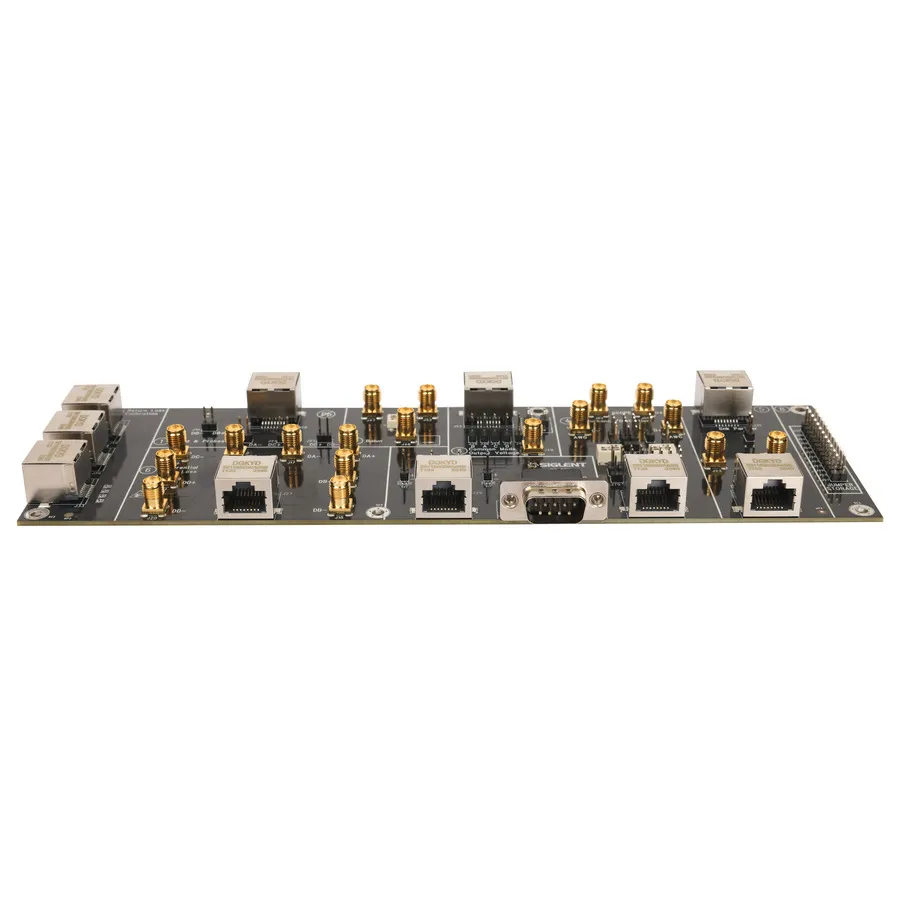

Siglent FX-ETH 100Base-TX and 1000Base-T Test Fixture
Request a quote
Siglent FX-ETH is a test fixture for 100Base-TX and 1000Base-T Ethernet compliance testing with SDS7000A oscilloscopes.
Product details
| Model | FX-ETH |
| Manufacturer | Siglent |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Siglent FX-ETH is a test fixture designed for 100Base-TX and 1000Base-T Ethernet compliance testing. When used with compatible Siglent oscilloscopes, it enables automated setup and comprehensive testing including measurement, calculation, and protocol decoding for efficient validation of Ethernet network compliance.
Key Features
- Support for 100Base-TX and 1000Base-T protocols
- Compatible with SDS7000A oscilloscope series
- Automated oscilloscope and instrument configuration
- Automated measurement, calculation, and decoding functions
- Compliance testing software available separately
Applications
- Ethernet (100Base-TX) compliance testing
- Gigabit Ethernet (1000Base-T) validation
- Signal integrity and protocol verification
Specifications
