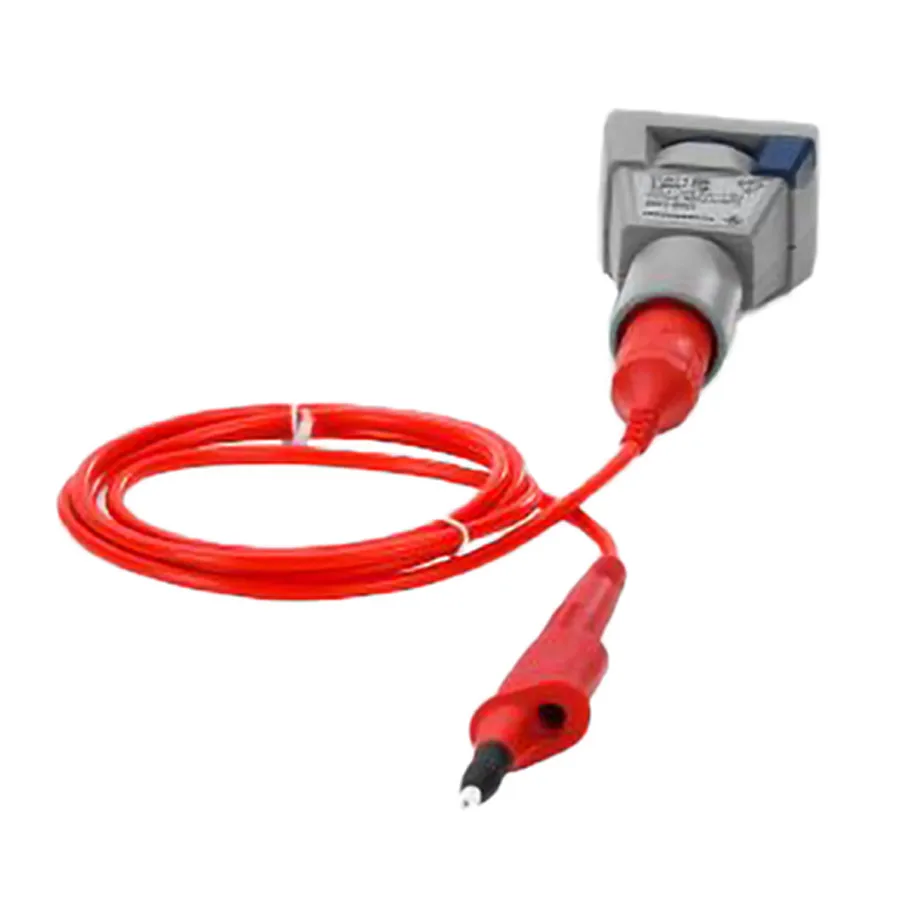

Rohde & Schwarz ZISO-Z302 Browser Tip
Request a quote
Rohde & Schwarz ZISO-Z302 is an isolated browser probe tip with 100x attenuation, ±3540V RMS isolation, and CAT III 1000V safety rating for oscilloscope measurements.
Product details
| Model | ZISO-Z302 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZISO-Z302 is a high-attenuation isolated browser probe tip designed for quick measurements on devices under test without dedicated test points. With a flexible 120 cm tip cable and 100x attenuation ratio, it is suitable for functional testing and troubleshooting applications in high-voltage environments.
Key Features
- 100x attenuation ratio for safe high-voltage measurements
- ±3540V RMS isolation voltage for extended measurement range
- CAT III 1000V safety rating with isolation caps
- 120 cm flexible tip cable for functional testing
- Safe attach feature with quick lever for secure probe tip connection
- 100 MΩ input impedance, 4.6 pF capacitance
- Minimized ESD risk with isolation cap design
Applications
- High-voltage circuit measurements and debugging
- Extended measurement range for power electronics applications
- Safe access to high-voltage test points without dedicated connections
Specifications
| Type | Tip |
| For Use With | ZISO Series |
| Series | ZISO Series |
| Alternate Product Number | 1803.4600.02 |
| Bandwidth | 500 MHz |
| Attenuation | 100X |
| Connector Type | Browser |
| Input Impedance | 100 MΩ |
| Maximum Input Voltage | 3540 V |
| Operating Temperature Range | 0-40°C |
