Rohde & Schwarz ZISO-Z301 Browser Tip
Request a quote

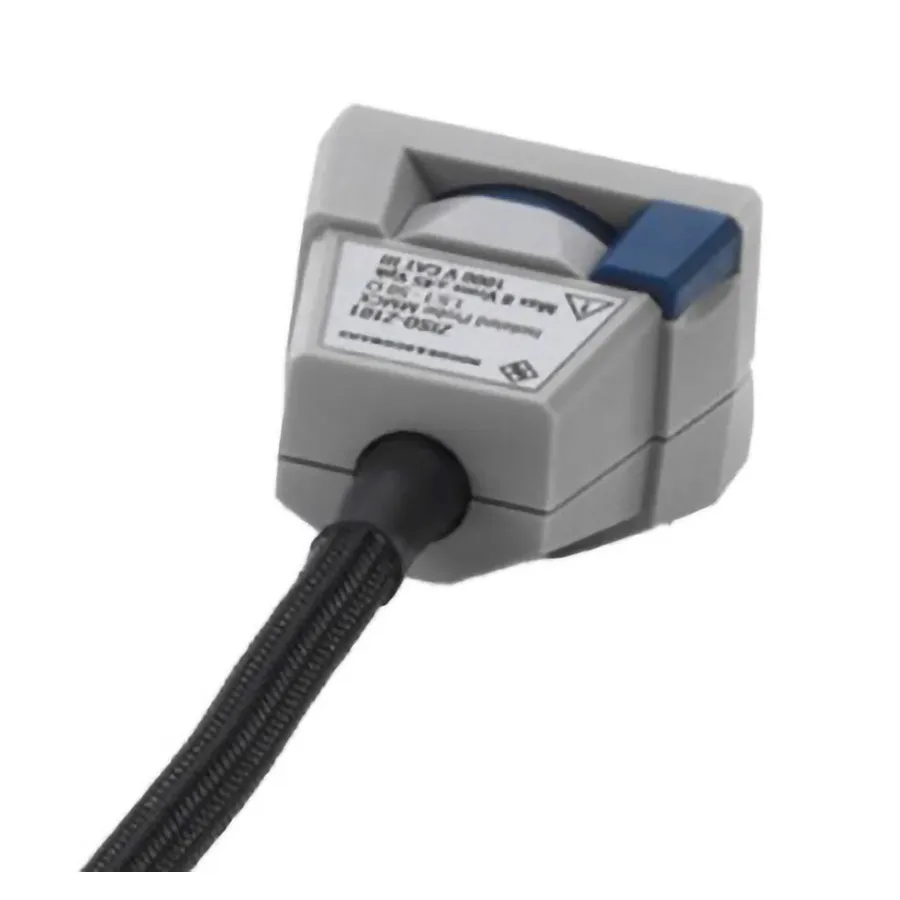

Rohde & Schwarz ZISO-Z301 is an isolated browser probe tip with 10x attenuation, ±300V RMS isolation, and CAT III 1000V safety rating for oscilloscope measurements.
Product details
| Model | ZISO-Z301 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZISO-Z301 is an isolated browser probe tip designed for quick measurements on devices under test without dedicated test points. With a flexible 120 cm tip cable and 10x attenuation ratio, it is suitable for functional testing and troubleshooting applications.
Key Features
- 10x attenuation ratio for accurate voltage measurements
- ±300V RMS isolation voltage
- CAT III 1000V safety rating with isolation caps
- 120 cm flexible tip cable for functional testing
- Safe attach feature with quick lever for secure probe tip connection
- 10 MΩ input impedance, 12 pF capacitance
- Minimized ESD risk with isolation cap design
Applications
- Quick access measurements on circuit boards
- Debugging and troubleshooting without dedicated test points
- Safe measurements in high-voltage environments
Specifications
| Type | Tip |
| For Use With | ZISO Series |
| Series | ZISO Series |
| Alternate Product Number | 1803.4500.02 |
| Bandwidth | 500 MHz |
| Attenuation | 10X |
| Connector Type | Browser |
| Input Impedance | 10 MΩ |
| Maximum Input Voltage | 300 V |
| Operating Temperature Range | 0-40°C |
