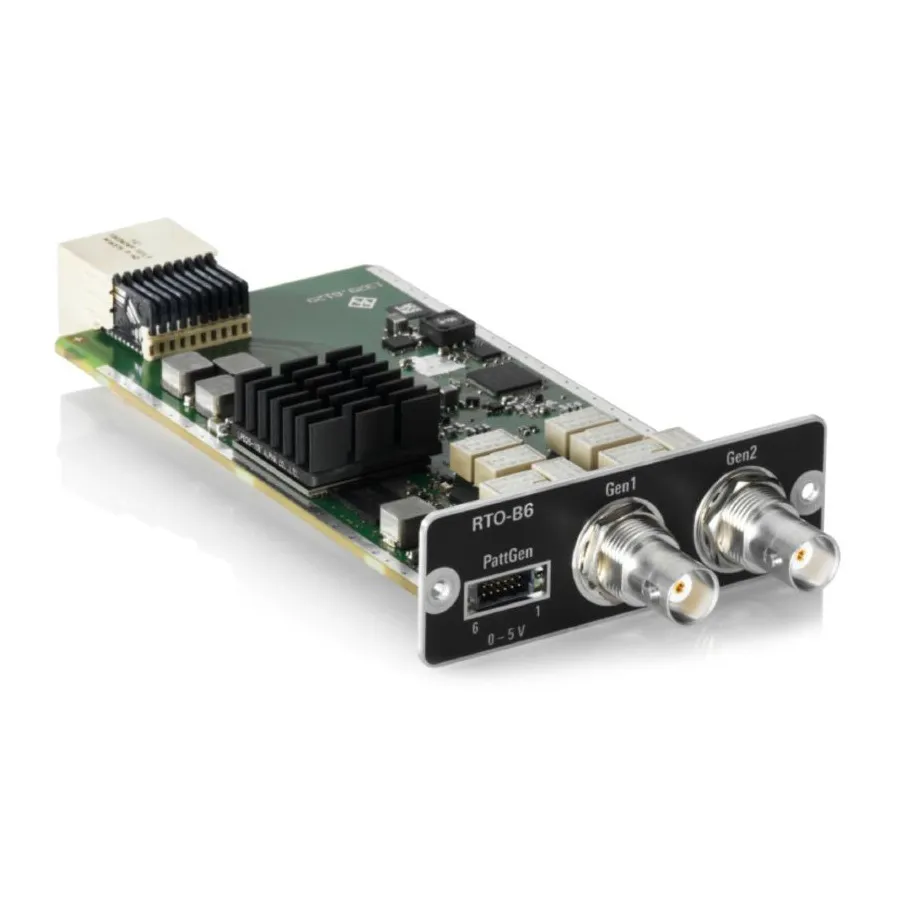

Rohde & Schwarz RTO6-B6 Arbitrary Waveform and Pattern Generator Option
Request a quote
Rohde & Schwarz RTO6-B6 arbitrary waveform and pattern generator adds real-world signal testing to RTO6 oscilloscopes.
Product details
| Model | RTO6-B6 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTO6-B6 is an arbitrary waveform and pattern generator option for RTO6 oscilloscopes. It provides 2-channel analog output and 8-channel pattern generation, allowing engineers to test devices with real-world signals captured on the oscilloscope.
Key Features
- 2-channel analog output with 100 MHz bandwidth
- 8-channel pattern generator
- 500 Msample/s sampling rate with 14-bit resolution
- 40 Msample memory per channel
- Function generator modes: sine, square, ramp, DC, pulse, cardinal sine, cardiac, Gauss, Lorentz, exponential rise/fall
- Modulation modes: AM, FM, FSK
- Sweep and arbitrary waveform generation
Applications
- Real-world signal testing using waveforms captured on the oscilloscope
- Automated compliance testing with external signal source integration
- Device evaluation against design criteria with noise simulation
Specifications
| Type | Arbitrary Waveform Generator |
| Series | RTO6 Series |
| Alternate Product Number | 1801.6758.02 |
| Series Compatibility | RTO6 Series |
