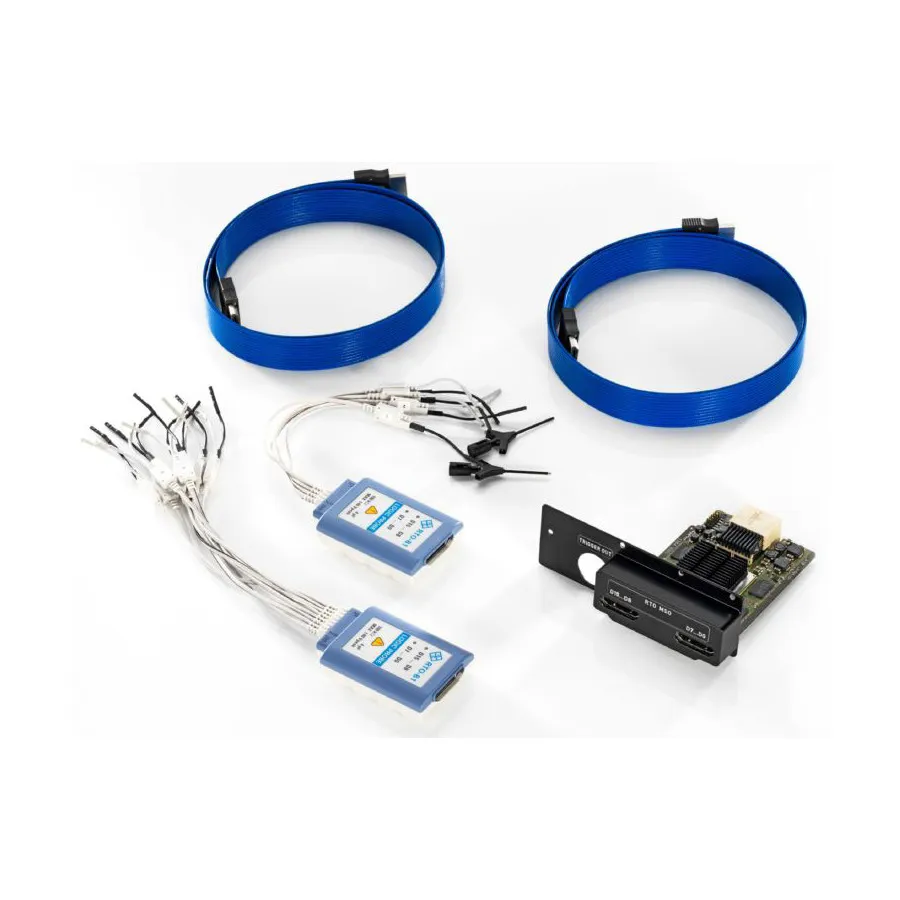

Rohde & Schwarz RTO6-B1 Mixed Signal Option

Overview

The Rohde & Schwarz RTO6-B1 mixed-signal option (MSO) extends RTO6 oscilloscopes with 16 additional digital channels without reducing analog channel capacity. This plug-and-play option installs on the rear panel and provides high-speed digital signal capture with 200 ps time resolution across the full 200 Msample memory depth per channel.

Key Features

• 16 additional digital channels with no loss of 4 analog channels
• 5 Gsample/s sampling rate on all digital channels
• 200 ps maximum time resolution over entire memory depth
• High input impedance (100 kilohm) and low input capacitance (4 pF)
• Maximum 400 MHz signal frequency support
• 200 Msample per channel acquisition memory
• Simultaneous decoding of up to 4 parallel buses
• SmartGrid drag-and-drop interface for channel management
• Edge, width, pattern, and serial pattern triggers
• Support for parallel and serial protocol analysis (SPI, I2C)

Applications

• Mixed-signal debugging of digital and analog circuits
• Serial protocol analysis and verification
• Glitch detection and signal integrity testing
• Multi-bus protocol decoding and analysis
