Rohde & Schwarz RTO-K130 is a TDR/TDT analysis option for RTO/RTP oscilloscopes supporting single-ended and differential measurements of signal paths and cables.
Product details
| Model | RTO-K130 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview

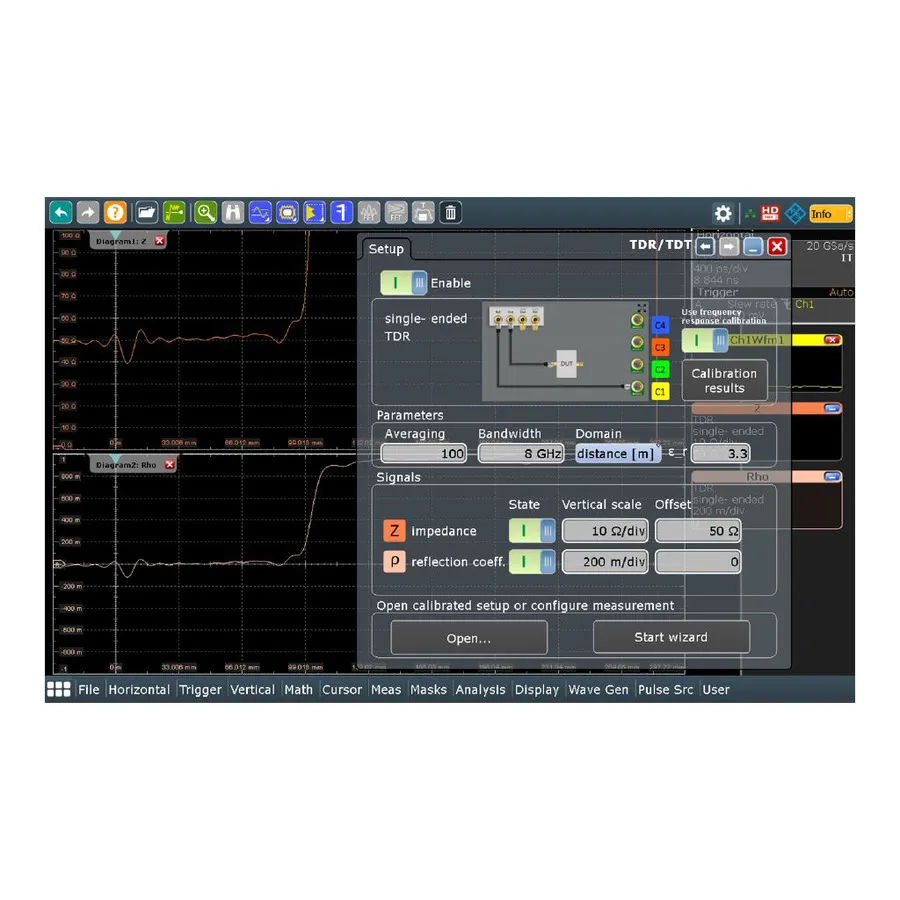

The Rohde & Schwarz RTO-K130 TDR/TDT analysis option transforms RTO and RTP oscilloscopes into time domain reflection and transmission analysis systems. It supports characterization and debugging of signal paths, including PCB traces, cables, and connectors, with both single-ended and differential measurement capabilities.
Key Features
- Integrated 16 GHz differential pulse source (RTO/RTP-B7)
- Single-ended and differential TDR/TDT measurement support
- Calibration and measurement wizard for simplified operation
- Real-time signal path analysis and characterization
Applications
- PCB trace and interconnect characterization
- Cable and connector debugging
- Signal integrity and transmission line analysis
- High-speed circuit design validation
Specifications
| Type | TDR/TDT Analysis |
| Series | RTO Series |
| Alternate Product Number | 1326.3087.03 |
| Series Compatibility | RTO Series |
